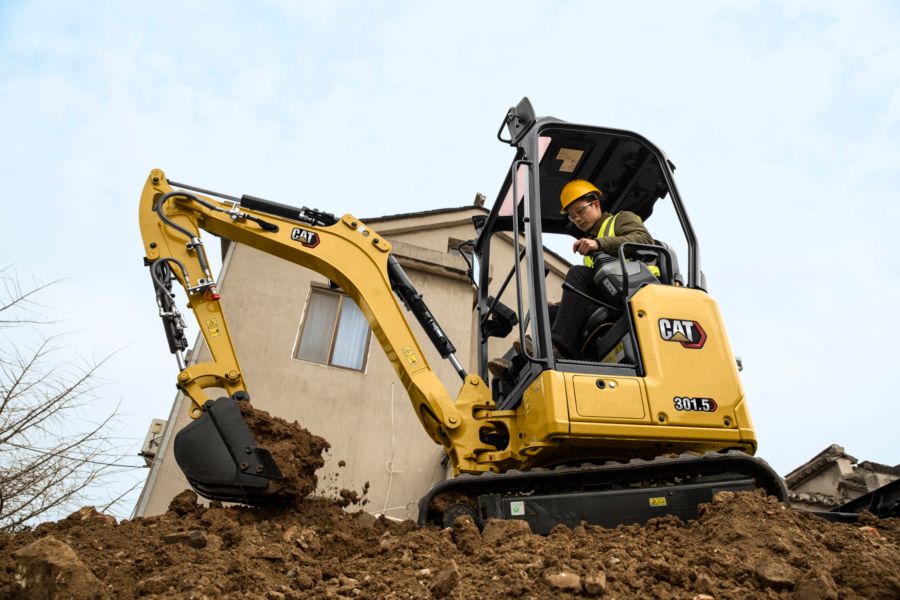

The Cat® 301.5 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
The Cat® 301.5 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Brochures and Spec Sheets

Gallery

301.5 301.5 301.5 301.5 301.5 301.5 301.5 301.5 301.5 301.5 301.5

Specifications

Specification Value Unit
Net Power 21 hp
Engine Model
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC 21 hp
Gross Power - ISO 14396 21.6 hp
Bore 3 in
Stroke 3.2 in
Displacement 69 in³
Emissions
Note (2)
Note (1)
Operating Weight 3913 lb
Minimum Operating Weight with Canopy* 3483 lb
Maximum Operating Weight with Canopy** 3913 lb
EU: CE Plate Weight*** 3836 lb
Note (1)
Note (2)
Note (3)
Long Stick 18 lb
Steel Tracks 126 lb
Expandable Undercarriage 284 lb
Travel Speed - High 2.7 mile/h
Travel Speed - Low 1.8 mile/h
Maximum Traction Force - High Speed 2315.5 lbf
Maximum Traction Force - Low Speed 3597 lbf
Ground Pressure - Minimum Weight 4 psi
Ground Pressure - Maximum Weight 4.4 psi
Gradeability - Maximum
Cooling System 1 gal (US)
Engine Oil 1.2 gal (US)
Fuel Tank 5.8 gal (US)
Hydraulic Tank 4.8 gal (US)
Hydraulic System 6.9 gal (US)
Pump Flow at 2,400 rpm 17.4 gpm
Operating Pressure - Equipment 3089.3 psi
Operating Pressure - Travel 3089.3 psi
Operating Pressure - Swing 1493.9 psi
Auxiliary Circuit - Primary - Flow 8.7 gpm
Auxiliary Circuit - Primary - Pressure 3089.3 psi
Auxiliary Circuit - Secondary - Flow 3.7 gpm
Auxiliary Circuit - Secondary - Pressure 3089.3 psi
Digging Force - Stick - Standard 1843.4 lbf
Digging Force - Stick - Long 1616.4 lbf
Digging Force - Bucket 3169.8 lbf
Type
Machine Swing Speed 9.8 r/min
Width* 39 in
Height 8.9 in
Note
Roll Over Protective Structure (ROPS)
Tip Over Protective Structure (TOPS)
Top Guard
Dig Depth 92.1 in
Vertical Wall 70.9 in
Maximum Reach - Ground Level 146.9 in
Maximum Reach 149.6 in
Maximum Dig Height 135 in
Maximum Dump Clearance 96.5 in
Boom In Reach 57.5 in
Tail Swing 32.3 in
Maximum Blade Height 10.8 in
Maximum Blade Depth 10.2 in
Boom Height - Shipping Position 42.9 in
O/A Shipping Height 90.9 in
Swing Bearing - Height 17.5 in
O/A Undercarriage Length 57.5 in
Overall Shipping Length* 142.5 in
Boom Swing - Right 50 °
Boom Swing - Left 65 °
Track Belt/Shoe Width 9.1 in
Track Width - Retracted 39 in
Track Width - Expanded 51.18 in
Minimum Ground Clearance Below Undercarriage 6.1 in
Stick Length 37.8 in
Note
Dig Depth 100 in
Vertical Wall 74.4 in
Maximum Reach - Ground Level 153.1 in
Maximum Reach 155.9 in
Maximum Dig Height 137.4 in
Maximum Dump Clearance 98.8 in
Boom In Reach 57.1 in
Tail Swing 32.3 in
Maximum Blade Height 10.8 in
Maximum Blade Depth 10.2 in
Boom Height - Shipping Position 40.9 in
O/A Shipping Height 90.9 in
Swing Bearing - Height 17.5 in
O/A Undercarriage Length 57.5 in
Overall Shipping Length* 141.3 in
Boom Swing - Right 50 °
Boom Swing - Left 65 °
Track Belt/Shoe Width 9.1 in
Track Width - Retracted 39 in
Track Width - Expanded 51.18 in
Minimum Ground Clearance Below Undercarriage 6.1 in
Stick Length 45.7 in
Note
Operator Sound Pressure (ISO 6396:2008) 72 dB(A)
Note
Recyclability
Average Exterior Sound Pressure (ISO 6395:2008) 93 dB(A)

Standard Equipment

  • ENGINE
  • HYDRAULICS
  • OPERATOR ENVIRONMENT
  • UNDERCARRIAGE
  • BOOM, STICK AND LINKAGES
  • ELECTRICAL

Optional Equipment

  • OPERATOR ENVIRONMENT
  • UNDERCARRIAGE
  • BOOM, STICK AND LINKAGES
  • ELECTRICAL
  • GUARDING
  • OTHER
