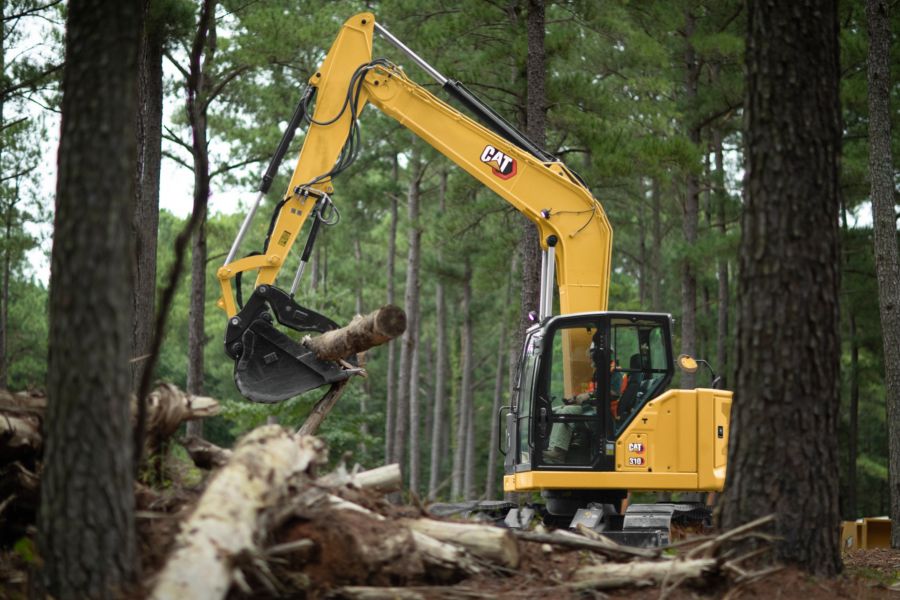

The Cat® 310 Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.
The Cat® 310 Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Brochures and Spec Sheets

Gallery

310 - Tier 4 / Stage V 310 - Tier 4 / Stage V 310 - Tier 4 / Stage V 310 - Tier 4 / Stage V 310 - Tier 4 / Stage V 310 - Tier 4 / Stage V 310 - Tier 4 / Stage V 310 - Tier 4 / Stage V 310 - Tier 4 / Stage V 310 - Tier 4 / Stage V

Specifications

Specification Value Unit
Net Power 69 hp
Net Power - 2,200 rpm - ISO 9249:2007, 80/1269/EEC 69 hp
Bore 3.5 in
Gross Power - SAE J1995:2014 74.3 hp
Note
Stroke 4.3 in
Engine Model - U.S. EPA Tier 4 Final/EU Stage V
Displacement 171 in³
Operating Weight 23002 lb
Maximum Operating Weight with Cab** 22859 lb
Note (2)
Minimum Operating Weight with Cab* 21026 lb
Note (1)
Counterweight 551 lb
Extra Counterweight 1103 lb
Steel Tracks with Pads 728 lb
Maximum Traction Force - Low Speed 19064 lbf
Ground Pressure - Maximum Weight 5.8 psi
Travel Speed - Low 1.6 mile/h
Maximum Traction Force - High Speed 7419 lbf
Travel Speed - High 2.9 mile/h
Gradeability - Maximum
Ground Pressure - Minimum Weight 5.4 psi
Hydraulic System 37 gal (US)
Engine Oil 2.3 gal (US)
Hydraulic Tank 14 gal (US)
Cooling System 2.6 gal (US)
Fuel Tank 38 gal (US)
Pump Flow at 2,400 rpm 62 gpm
Maximum Auxiliary Circuit - Secondary - Pressure at Pump 4134 psi
Maximum Auxiliary Circuit - Primary - Pressure at Pump 4134 psi
Note
Operating Pressure - Swing 3336 psi
Operating Pressure - Equipment 4134 psi
Maximum Auxiliary Circuit - Primary - Flow at Pump 35 gpm
Maximum Auxiliary Circuit - Secondary - Flow at Pump 9 gpm
Operating Pressure - Travel 4134 psi
Digging Force - Bucket 17459 lbf
Digging Force - Stick 11060 lbf
Type
Machine Swing Speed 10 r/min
Height 17 in
Width - Standard 97.2 in
Width - Wide 103.9 in
Top Guard
Roll Over Protective Structure (ROPS)
Average Exterior Sound Pressure (ISO 6395:2008) 99 dB(A)
Operator Sound Pressure (ISO 6396:2008) 72 dB(A)
Note
Dig Depth 205.2 in
Height - Boom Working - With Tools** 106.3 in
Maximum Reach 303 in
Track Belt/Shoe Width 17.7 in
Maximum Blade Depth 18.8 in
O/A Track Width 97.2 in
Swing Bearing - Height 28.9 in
Boom In Reach 83.3 in
Maximum Dump Clearance 229.5 in
Maximum Blade Height 16.6 in
Note (1)
O/A Undercarriage Length 126 in
Maximum Dig Height 313.8 in
Tail Swing without Counterweight 70.9 in
Overall Shipping Length - with Counterweight 274.9 in
Height - Boom Transport - No Tools* 100.4 in
Tail Swing - Standard Counterweight 76.1 in
Note (2)
Overall Shipping Length - without Counterweight 269.7 in
Vertical Wall 172.6 in
Stick Length 98.4 in
Maximum Reach - Ground Level 298 in
Cab Height 100 in
Dig Depth 205.2 in
Ground Clearance - Frame 14 in
Air Conditioning
Note 1
Recyclability

Standard Equipment

  • ENGINE
  • HYDRAULICS
  • OPERATOR ENVIRONMENT
  • UNDERCARRIAGE
  • BOOM, STICK AND LINKAGES
  • ELECTRICAL
  • OTHER
  • GUARDING
  • TECHNOLOGY

Optional Equipment

  • OPERATOR ENVIRONMENT
  • UNDERCARRIAGE
  • BOOM, STICK AND LINKAGES
  • ELECTRICAL
  • GUARDING
  • TECHNOLOGY
  • OTHER
