313

313
Cat
Request a Quote Find a Location

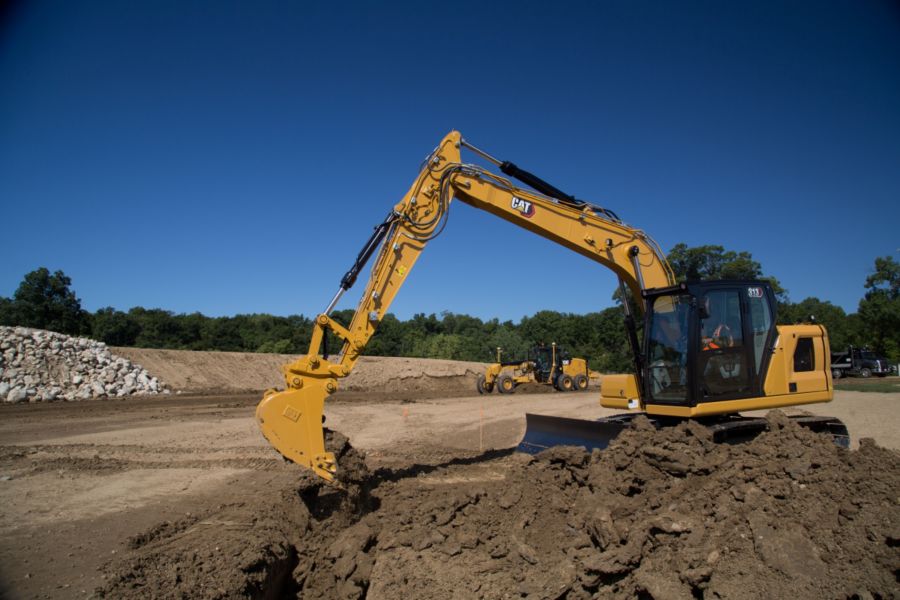

The Cat® 313 excavator offers excellent performance and operator efficiency. Standard, easy-to-use Cat technologies, large cab focused on operator comfort and productivity, and low fuel and maintenance costs allow you to move material all day with speed and precision while keeping more money in your pocket.
The Cat® 313 excavator offers excellent performance and operator efficiency. Standard, easy-to-use Cat technologies, large cab focused on operator comfort and productivity, and low fuel and maintenance costs allow you to move material all day with speed and precision while keeping more money in your pocket.

Brochures and Spec Sheets

Gallery

313 313 313 313 313 313

Specifications

Specification Value Unit
Net Power - ISO 9249 108 hp
Net Power - ISO 9249 (DIN) 110 hp (metric)
Engine Model
Engine Power - ISO 14396 110 hp
Engine Power - ISO 14396 (DIN) 111 hp (metric)
Bore 4 in
Stroke 5 in
Displacement 220 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow
Maximum Pressure - Equipment 5075 psi
Maximum Pressure - Travel 5075 psi
Maximum Pressure - Swing 3770 psi
Swing Speed 11.5 r/min
Maximum Swing Torque 25741 lbf·ft
Note (1)
Operating Weight 30400 lb
Note (1)
Fuel Tank Capacity 68.2 gal (US)
Cooling System 4 gal (US)
Engine Oil 2.1 gal (US)
Final Drive - Each 0.8 gal (US)
Hydraulic System - Including Tank 22.5 gal (US)
Hydraulic Tank 18.5 gal (US)
DEF Tank 5.6 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 9.3 ft
Handrail Height 9.3 ft
Shipping Length 25.5 ft
Shipping Length - with Blade 26.4 ft
Tail Swing Radius 7.2 ft
Counterweight Clearance 3 ft
Ground Clearance 1.5 ft
Track Length 12.3 ft
Length to Center of Rollers 10 ft
Track Gauge 6.5 ft
Transport Width 8.2 ft
Maximum Digging Depth 19.2 ft
Boom
Stick
Bucket
Maximum Reach at Ground Level 28.4 ft
Maximum Cutting Height 29 ft
Maximum Loading Height 21.1 ft
Minimum Loading Height 5.3 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 19.3 ft
Maximum Vertical Wall Digging Depth 17 ft
Minimum Working Equipment Radius 8.4 ft
Bucket Digging Force - ISO 22180 lbf
Stick Digging Force - ISO 13330 lbf
Air Conditioning
Recyclability

Standard Equipment

  • NOTE
  • BOOM AND STICKS
  • CAB
  • CAT TECHNOLOGIES
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • BOOM AND STICKS
  • CAB
  • CAT TECHNOLOGIES
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • UNDERCARRIAGE AND STRUCTURES
