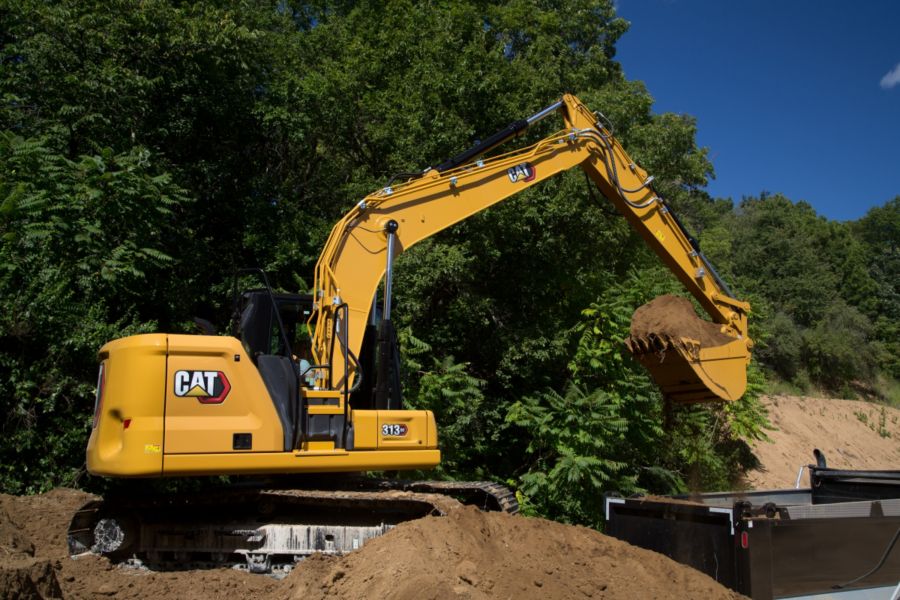

313 GC
The Cat® 313 GC excavator matches its performance to your job. A large cab keeps you comfortable all shift long. Combined with fuel-saving features and long maintenance intervals, the 313 GC provides reliability at a low-cost-per-hour.
The Cat® 313 GC excavator matches its performance to your job. A large cab keeps you comfortable all shift long. Combined with fuel-saving features and long maintenance intervals, the 313 GC provides reliability at a low-cost-per-hour.
Brochures and Spec Sheets
- 313 GC (07H) Hydraulic Excavator - Product Brochure (N Am, Europe, KSA, Türkiye, Chile, Colombia)
- 313 GC (07H) Hydraulic Excavator - Technical Specifications (N Am)
- 313 GC (07H) Hydraulic Excavator - Technical Specifications (Europe, KSA, Türkiye)
- 313 GC (07H) Hydraulic Excavator - Technical Specifications (Chile, Colombia)
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Net Power - ISO 9249 | 73 | hp |
| Engine Model | ||
| Engine Power - ISO 14396 | 74 | hp |
| Engine Power - ISO 14396 (DIN) | 75 | hp (metric) |
| Net Power - ISO 9249 (DIN) | 74 | hp (metric) |
| Bore | 4 | in |
| Stroke | 5 | in |
| Displacement | 220 | in³ |
| Biodiesel Capability | ||
| Emissions | ||
| Note (1) | ||
| Note (2) | ||
| Main System - Maximum Flow | ||
| Maximum Pressure - Equipment | 5075 | psi |
| Maximum Pressure - Travel | 5075 | psi |
| Maximum Pressure - Swing | 3770 | psi |
| Swing Speed | 11.5 | r/min |
| Maximum Swing Torque | 25888 | lbf·ft |
| Operating Weight | 30400 | lb |
| Fuel Tank Capacity | 68.2 | gal (US) |
| Cooling System | 4 | gal (US) |
| Engine Oil | 2.1 | gal (US) |
| Final Drive - Each | 0.8 | gal (US) |
| Hydraulic System - Including Tank | 22.5 | gal (US) |
| Hydraulic Tank | 18.5 | gal (US) |
| Boom | ||
| Stick | ||
| Bucket | ||
| Shipping Height - Top of Cab | 9.3 | ft |
| Handrail Height | 9.3 | ft |
| Shipping Length | 26.4 | ft |
| Shipping Length - with Blade | 26.3 | ft |
| Tail Swing Radius | 7.2 | ft |
| Counterweight Clearance | 3 | ft |
| Ground Clearance | 1.5 | ft |
| Track Length | 12.3 | ft |
| Length to Center of Rollers | 10 | ft |
| Track Gauge | 6.5 | ft |
| Transport Width | 8.2 | ft |
| Maximum Digging Depth | 19.8 | ft |
| Boom | ||
| Stick | ||
| Bucket | ||
| Maximum Reach at Ground Level | 28.4 | ft |
| Maximum Cutting Height | 29 | ft |
| Maximum Loading Height | 21.1 | ft |
| Minimum Loading Height | 5.3 | ft |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 19.3 | ft |
| Maximum Vertical Wall Digging Depth | 17 | ft |
| Minimum Working Equipment Radius | 8.4 | ft |
| Bucket Digging Force - ISO | 22180 | lbf |
| Stick Digging Force - ISO | 13330 | lbf |
| Air Conditioning |
Standard Equipment
- NOTE
- BOOM AND STICKS
- CAB
- CAT TECHNOLOGIES
- ELECTRICAL SYSTEM
- ENGINE
- HYDRAULIC SYSTEM
- SAFETY AND SECURITY
- SERVICE AND MAINTENANCE
- UNDERCARRIAGE AND STRUCTURES
Optional Equipment
- NOTE
- BOOM AND STICKS
- CAB
- CAT TECHNOLOGIES
- ELECTRICAL SYSTEM
- HYDRAULIC SYSTEM
- SAFETY AND SECURITY
- UNDERCARRIAGE AND STRUCTURES
