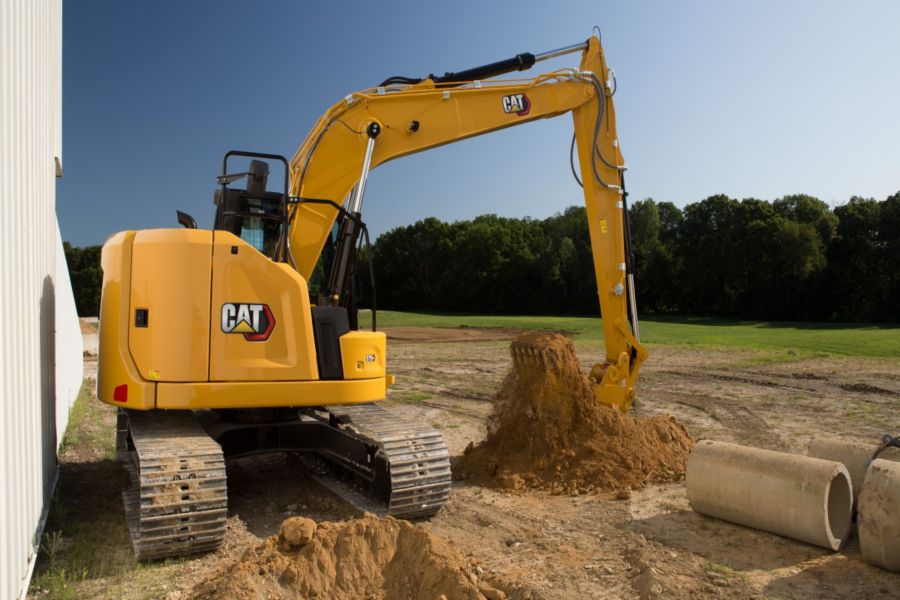

The Cat® 315 GC Excavator fits your jobsite and your wallet. Simplified maintenance points, long maintenance intervals, and fuel-saving features and components keep owning and operating costs low. Combined with its compact radius design and a large, ergonomic cab, the 315 GC keeps you working efficiently and comfortably – all at a low cost-per-hour.
The Cat® 315 GC Excavator fits your jobsite and your wallet. Simplified maintenance points, long maintenance intervals, and fuel-saving features and components keep owning and operating costs low. Combined with its compact radius design and a large, ergonomic cab, the 315 GC keeps you working efficiently and comfortably – all at a low cost-per-hour.

Brochures and Spec Sheets

Gallery

315 GC

Specifications

Specification Value Unit
Net Power - ISO 9249 98 hp
Engine Model
Engine Power - ISO 14396 100 hp
Engine Power - ISO 14396 (DIN) 101 hp (metric)
Net Power - ISO 9249 (DIN) 100 hp (metric)
Bore 4 in
Stroke 5 in
Displacement 220 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow
Maximum Pressure - Equipment 5075 psi
Maximum Pressure - Travel 5075 psi
Maximum Pressure - Swing 3770 psi
Swing Speed 11.5 r/min
Maximum Swing Torque 25815 lbf·ft
Operating Weight 34000 lb
Fuel Tank Capacity 49.4 gal (US)
Cooling System 4 gal (US)
Engine Oil 2.1 gal (US)
Final Drive - Each 0.8 gal (US)
Hydraulic System - Including Tank 22.5 gal (US)
Hydraulic Tank 19 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 9.3 ft
Handrail Height 9.4 ft
Shipping Length 24.5 ft
Shipping Length - with Blade 26.3 ft
Tail Swing Radius 5.2 ft
Counterweight Clearance 2.9 ft
Ground Clearance 1.4 ft
Track Length 12.3 ft
Length to Center of Rollers 10 ft
Track Gauge 6.5 ft
Transport Width 8.8 ft
Maximum Digging Depth 19.7 ft
Boom
Stick
Bucket
Maximum Reach at Ground Level 28.5 ft
Maximum Cutting Height 31.8 ft
Maximum Loading Height 23.7 ft
Minimum Loading Height 6.8 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 19.1 ft
Maximum Vertical Wall Digging Depth 17 ft
Minimum Working Equipment Radius 7.3 ft
Bucket Digging Force - ISO 22180 lbf
Stick Digging Force - ISO 13330 lbf
Air Conditioning

Standard Equipment

  • NOTE
  • BOOM AND STICKS
  • CAB
  • CAT TECHNOLOGIES
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • BOOM AND STICKS
  • CAB
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • CAT TECHNOLOGIES
  • UNDERCARRIAGE AND STRUCTURES
