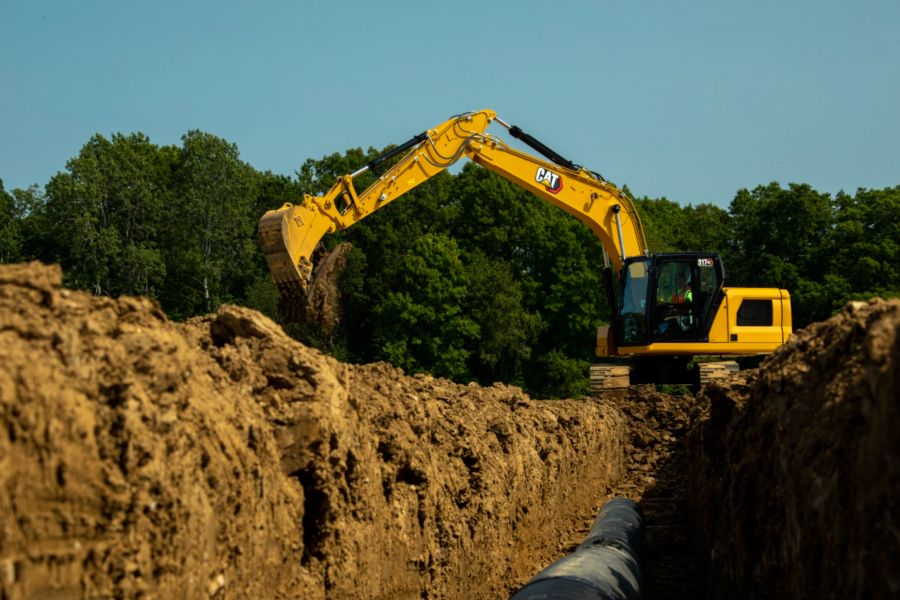

The Cat® 317 GC Excavator offers excellent performance and versatility. A large working envelope and expanded work tool offering help you complete your work quickly and efficiently. Combined with fuel-saving features, longer maintenance intervals, and simplified maintenance points, the 317 GC provides the reliability you expect at the low cost-per-hour you need.
The Cat® 317 GC Excavator offers excellent performance and versatility. A large working envelope and expanded work tool offering help you complete your work quickly and efficiently. Combined with fuel-saving features, longer maintenance intervals, and simplified maintenance points, the 317 GC provides the reliability you expect at the low cost-per-hour you need.

Brochures and Spec Sheets

Gallery

317 GC 317 GC 317 GC 317 GC 317 GC 317 GC 317 GC

Specifications

Specification Value Unit
Net Power - ISO 9249 119 hp
Engine Model
Engine Power - ISO 14396 121 hp
Engine Power - ISO 14396 (DIN) 122 hp (metric)
Net Power - ISO 9249 (DIN) 121 hp (metric)
Bore 4 in
Stroke 5 in
Displacement 220 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow
Maximum Pressure - Equipment 5075 psi
Maximum Pressure - Travel 5075 psi
Maximum Pressure - Swing 3741 psi
Swing Speed 8.7 r/min
Maximum Swing Torque 44990 lbf·ft
Operating Weight 38000 lb
Fuel Tank Capacity 71.6 gal (US)
Cooling System 5.8 gal (US)
Engine Oil 2.9 gal (US)
Final Drive - Each 1.6 gal (US)
Hydraulic System - Including Tank 24.8 gal (US)
Hydraulic Tank 23 gal (US)
DEF Tank 5.9 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 9.6 ft
Handrail Height 9.7 ft
Shipping Length 28.1 ft
Tail Swing Radius 8.2 ft
Counterweight Clearance 3.3 ft
Ground Clearance 1.4 ft
Track Length 13 ft
Length to Center of Rollers 10.4 ft
Track Gauge 6.5 ft
Transport Width 8.5 ft
Maximum Digging Depth 21 ft
Boom
Stick
Bucket
Maximum Reach at Ground Level 29.6 ft
Maximum Cutting Height 29.2 ft
Maximum Loading Height 20.6 ft
Minimum Loading Height 6.5 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 20.3 ft
Maximum Vertical Wall Digging Depth 16.3 ft
Minimum Working Equipment Radius 9.7 ft
Bucket Digging Force - ISO 27650 lbf
Stick Digging Force - ISO 16860 lbf
Air Conditioning

Standard Equipment

  • NOTE
  • BOOM AND STICKS
  • CAB
  • CAT TECHNOLOGIES
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • BOOM AND STICKS
  • CAB
  • CAT TECHNOLOGIES
  • ELECTRICAL SYSTEM
  • ENGINE
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES
