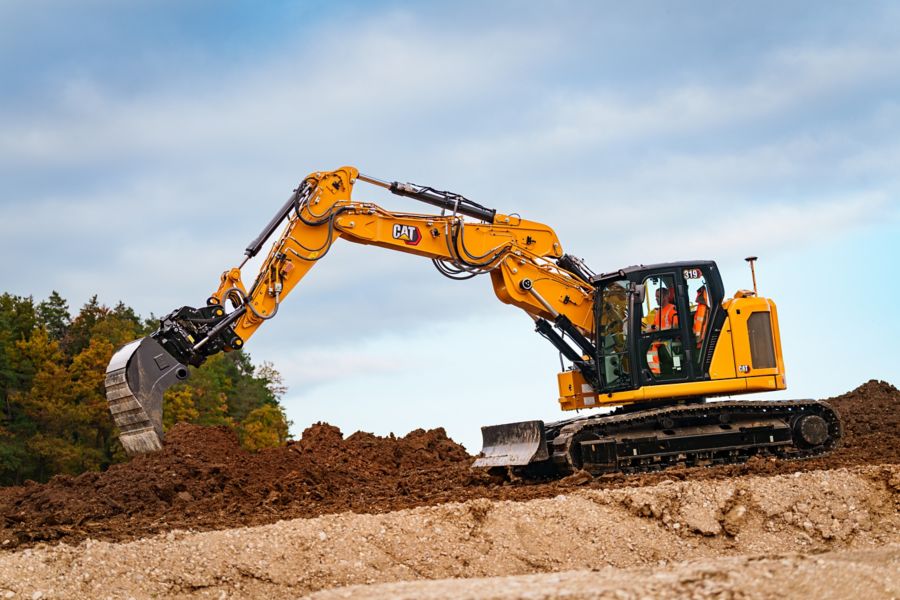

The Cat® 319 hydraulic excavator offers powerful performance, stability, and productivity for construction, utility work, and road maintenance jobs. Operate with confidence in tight spaces with a compact design, while Cat technologies help deliver precision and safety on the jobsite.
The Cat® 319 hydraulic excavator offers powerful performance, stability, and productivity for construction, utility work, and road maintenance jobs. Operate with confidence in tight spaces with a compact design, while Cat technologies help deliver precision and safety on the jobsite.

Brochures and Spec Sheets

Gallery

319 319 319 319

Specifications

Specification Value Unit
Net Power - ISO 9249 133 hp
Net Power - ISO 9249 (DIN) 134 hp (metric)
Engine Model
Engine Power - ISO 14396 134 hp
Engine Power - ISO 14396 (DIN) 136 hp (metric)
Bore 4 in
Stroke 5 in
Displacement 220 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow
Maximum Pressure - Equipment 5076 psi
Maximum Pressure - Travel 5076 psi
Maximum Pressure - Swing 3785 psi
Swing Speed 9.2 r/min
Maximum Swing Torque 45140 lbf·ft
Note (1)
Operating Weight 44100 lb
Note (1)
Fuel Tank Capacity 60.5 gal (US)
Cooling System 5 gal (US)
Engine Oil 2.9 gal (US)
Final Drive - Each 1.6 gal (US)
Hydraulic System - Including Tank 21.9 gal (US)
Hydraulic Tank 20.1 gal (US)
DEF Tank 5.5 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 9.6 ft
Handrail Height 9.8 ft
Shipping Length 26.6 ft
Shipping Length - with Blade 28.4 ft
Tail Swing Radius 5.7 ft
Counterweight Clearance 3.3 ft
Ground Clearance 1.5 ft
Track Length 13.4 ft
Length to Center of Rollers 10.7 ft
Track Gauge 7.2 ft
Transport Width 9.5 ft
Maximum Digging Depth 21.5 ft
Boom
Stick
Bucket
Maximum Reach at Ground Level 30.2 ft
Maximum Cutting Height 29.7 ft
Maximum Loading Height 21.1 ft
Minimum Loading Height 6.1 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 20.8 ft
Maximum Vertical Wall Digging Depth 17.1 ft
Minimum Working Equipment Radius 9.6 ft
Bucket Digging Force - ISO 27650 lbf
Stick Digging Force - ISO 15960 lbf
Air Conditioning

Standard Equipment

  • NOTE
  • CAB
  • CAT TECHNOLOGIES
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • BOOM AND STICKS
  • CAB
  • CAT TECHNOLOGIES
  • ELECTRICAL SYSTEM
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • UNDERCARRIAGE AND STRUCTURES
