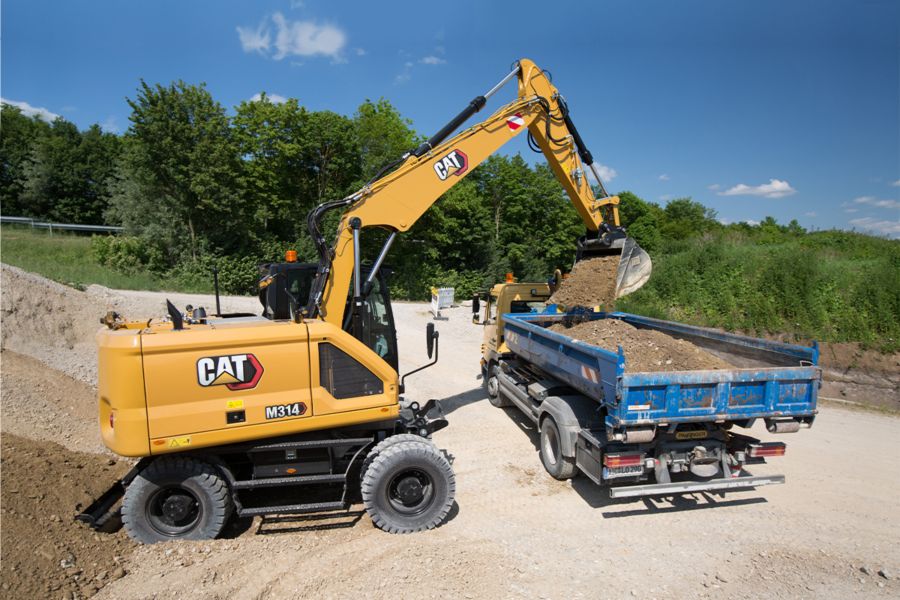

M314
The Cat® M314 Wheel Excavator offers high performance with simple-to-use technologies to help boost operator efficiency. With easy-to-use controls, Cat tiltrotator (TRS) integration, a comfortable cab, and long service intervals, the M314 helps save you time and money.
The Cat® M314 Wheel Excavator offers high performance with simple-to-use technologies to help boost operator efficiency. With easy-to-use controls, Cat tiltrotator (TRS) integration, a comfortable cab, and long service intervals, the M314 helps save you time and money.
Brochures and Spec Sheets
- M314 (07E) Wheel Excavator - Product Brochure (Aus-NZ, Europe, N Am, S Korea)
- M314 (07E) Wheel Excavator - Technical Specifications (Aus-NZ, Europe, N Am, S Korea)
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Engine Power - ISO 14396 | 134 | hp |
| Engine Power - ISO 14396 (DIN) | 136 | hp (metric) |
| Engine Model | ||
| Net Power - ISO 9249 | 127 | hp |
| Net Power - ISO 9249 (DIN) | 129 | hp (metric) |
| Bore | 3.9 | in |
| Stroke | 5 | in |
| Displacement | 221 | in³ |
| Biodiesel Capability | ||
| Emissions | ||
| Note (1) | ||
| Note (2) | ||
| Maximum Travel Speed | 23 | mile/h |
| Main System - Maximum Flow - Implement | 71.3 | gpm |
| Maximum Pressure - Implement Circuit - Normal | 5076 | psi |
| Maximum Pressure - Implement Circuit - Heavy Lift | 5366 | psi |
| Maximum Pressure - Implement Circuit - Travel Circuit | 5076 | psi |
| Maximum Swing Speed* | 9.1 | r/min |
| Maximum Swing Torque | 30461 | lbf·ft |
| Note (1) | ||
| Operating Weight Maximum | 39680 | lb |
| Operating Weight Minimum | 32190 | lb |
| Note (1) | ||
| Fuel Tank | 77.9 | gal (US) |
| Diesel Exhaust Fluid (DEF) | 5.3 | gal (US) |
| Cooling System | 5.3 | gal (US) |
| Hydraulic Tank | 23.8 | gal (US) |
| Hydraulic System - Including Tank | 58.1 | gal (US) |
| Boom | ||
| Stick | ||
| Bucket | ||
| Shipping Height - Top of Cab | 10.9 | ft |
| Shipping Length | 26.9 | ft |
| Support Point | 11.3 | ft |
| Tail Swing Radius | 7.1 | ft |
| Counterweight Clearance | 4.1 | ft |
| Ground Clearance | 1.1 | ft |
| Undercarriage Length | 16.1 | ft |
| Wheel Base | 8.2 | ft |
| Boom | ||
| Stick | ||
| Bucket | ||
| Digging Height | 32.1 | ft |
| Dump Height | 23 | ft |
| Maximum Digging Depth | 17.4 | ft |
| Maximum Vertical Wall Digging Depth | 13.9 | ft |
| Maximum Reach at Ground Line | 28.4 | ft |
| Stick Forces (ISO) | 15961 | lbf |
| Bucket Forces (ISO) | 23605 | lbf |
| Note (1) | ||
| Note | ||
| Recyclability |
Standard Equipment
- NOTE
- ELECTRICAL SYSTEM
- ENGINE
- HYDRAULIC SYSTEM
- SAFETY AND SECURITY
- SERVICE AND MAINTENANCE
- TECHNOLOGY
- UNDERCARRIAGE AND STRUCTURES
- CAB
Optional Equipment
- NOTE
- BOOMS AND STICKS
- ELECTRICAL SYSTEM
- HYDRAULIC SYSTEM
- SAFETY AND SECURITY
- SERVICE AND MAINTENANCE
- TECHNOLOGY
- UNDERCARRIAGE AND STRUCTURES
- CAB
