The Cat® M316 Wheel Excavator helps provide top performance with simple-to-use technologies to get the job done fast. With low maintenance costs, long service intervals, and 100 percent daily ground level check, the M316 helps save you time and money. The M316 helps give you the power to work long while putting money in your pocket.
The Cat® M316 Wheel Excavator helps provide top performance with simple-to-use technologies to get the job done fast. With low maintenance costs, long service intervals, and 100 percent daily ground level check, the M316 helps save you time and money. The M316 helps give you the power to work long while putting money in your pocket.

Brochures and Spec Sheets

Gallery

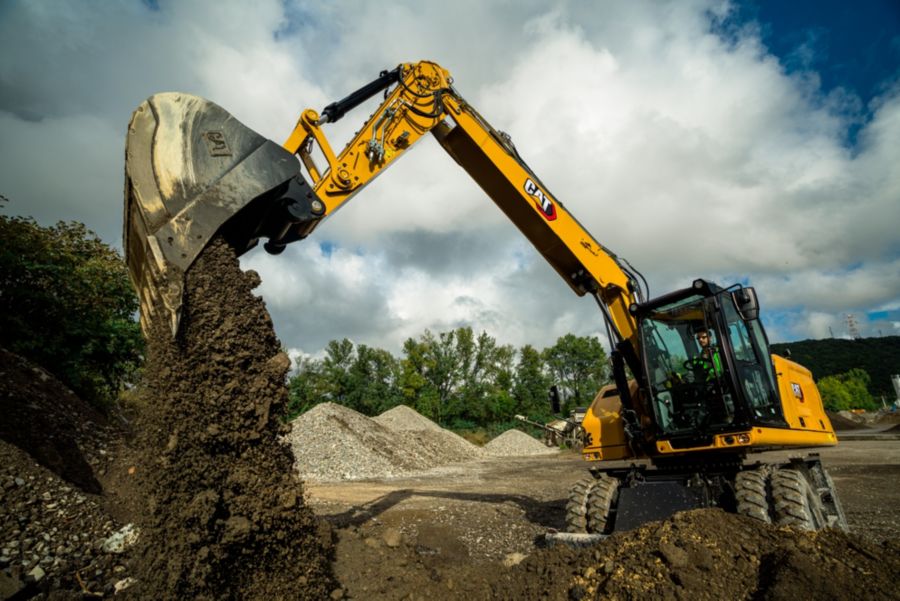

M316 M316 M316 M316 M316

Specifications

Specification Value Unit
Engine Power - ISO 14396 148 hp
Engine Power - ISO 14396 (DIN) 150 hp (metric)
Engine Model
Net Power - ISO 9249 141 hp
Net Power - ISO 9249 (DIN) 143 hp (metric)
Bore 4.1 in
Stroke 5 in
Displacement 268.5 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Maximum Travel Speed 21.7 mile/h
Main System - Maximum Flow - Implement 73 gpm
Maximum Pressure - Implement Circuit - Normal 5076 psi
Maximum Pressure - Implement Circuit - Heavy Lift 5366 psi
Maximum Pressure - Implement Circuit - Travel Circuit 5076 psi
Maximum Swing Speed 10.2 r/min
Maximum Swing Torque 32305 lbf·ft
Operating Weight Maximum 36990 lb
Operating Weight Minimum 36400 lb
Note (1)
Fuel Tank 92.5 gal (US)
Diesel Exhaust Fluid (DEF) 5.3 gal (US)
Cooling System 6.3 gal (US)
Hydraulic Tank 31.7 gal (US)
Hydraulic System - Including Tank 68.7 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 11 ft
Shipping Length 28.6 ft
Support Point 11.6 ft
Tail Swing Radius 7.7 ft
Counterweight Clearance 4.3 ft
Ground Clearance 1.3 ft
Undercarriage Length 16.3 ft
Wheel Base 8.4 ft
Boom
Stick
Bucket
Maximum Cutting Height 33.6 ft
Maximum Loading Height 23.9 ft
Maximum Digging Depth 19.4 ft
Maximum Vertical Wall Digging Depth 15.2 ft
Maximum Reach at Ground Line 30.2 ft
Stick Forces (ISO) 16861 lbf
Bucket Forces (ISO) 26752 lbf
Note (1)
Note

Standard Equipment

  • NOTE
  • BOOM AND STICKS
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • CAT TECHNOLOGY
  • UNDERCARRIAGE AND STRUCTURES
  • CAB

Optional Equipment

  • NOTE
  • ELECTRICAL SYSTEM
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • CAT TECHNOLOGY
  • UNDERCARRIAGE AND STRUCTURES
  • CAB
