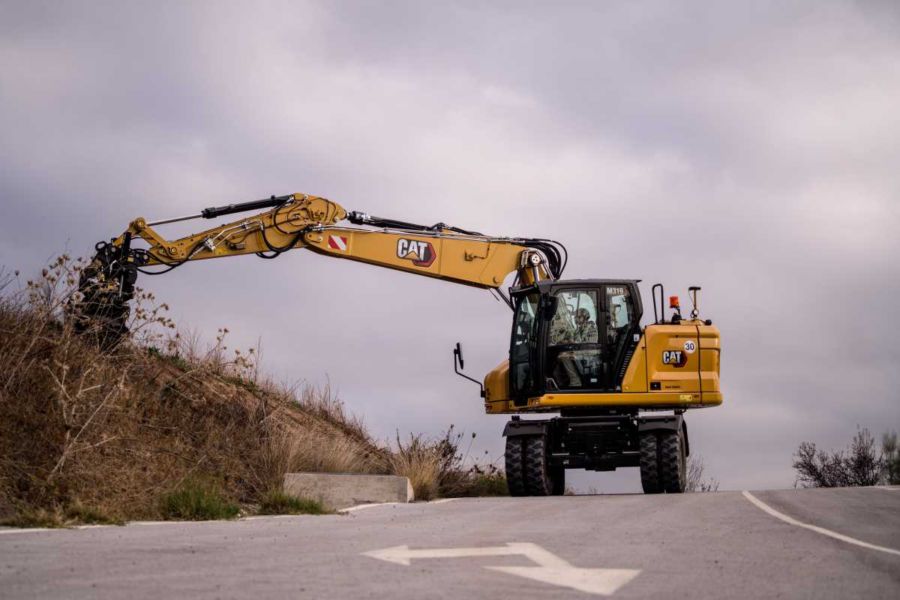

The Cat® M319 Wheel Excavator offers performance features and versatility to help you get more work done every day. With easy-to-use controls, a comfortable cab, and long service intervals, the M319 helps save you time and money. The compact radius design helps make it easy to work in space restricted environments.
The Cat® M319 Wheel Excavator offers performance features and versatility to help you get more work done every day. With easy-to-use controls, a comfortable cab, and long service intervals, the M319 helps save you time and money. The compact radius design helps make it easy to work in space restricted environments.

Brochures and Spec Sheets

Gallery

M319

Specifications

Specification Value Unit
Engine Power - ISO 14396 174 hp
Engine Power - ISO 14396 (DIN) 176 hp (metric)
Engine Model
Net Power - ISO 9249 171 hp
Net Power - ISO 9249 (DIN) 174 hp (metric)
Bore 4.1 in
Stroke 5 in
Displacement 268.5 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Maximum Travel Speed 21.7 mile/h
Main System - Maximum Flow - Implement 67 gpm
Maximum Pressure - Implement Circuit - Normal 5076 psi
Maximum Pressure - Implement Circuit - Heavy Lift 5366 psi
Maximum Pressure - Implement Circuit - Travel Circuit 5076 psi
Maximum Swing Speed* 9.4 r/min
Maximum Swing Torque 34,739 lbf·ft
Note (1)
Operating Weight Maximum 46410 lb
Operating Weight Minimum 41890 lb
Note (1)
Fuel Tank 76.6 gal (US)
Diesel Exhaust Fluid (DEF) 5.3 gal (US)
Cooling System 9.2 gal (US)
Hydraulic Tank 31.7 gal (US)
Hydraulic System - Including Tank 74 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 11 ft
Shipping Length 26.6 ft
Support Point 11.5 ft
Tail Swing Radius 6.2 ft
Counterweight Clearance 4.3 ft
Ground Clearance 1.4 ft
Undercarriage Length 16.6 ft
Wheel Base 8.9 ft
Boom
Stick
Bucket
Maximum Cutting Height 35.2 ft
Maximum Loading Height 25.6 ft
Maximum Digging Depth 18.9 ft
Maximum Vertical Wall Digging Depth 14.6 ft
Maximum Reach at Ground Line 30.2 ft
Stick Forces (ISO) 16861 lbf
Bucket Forces (ISO) 26752 lbf
Note (1)
Note

Standard Equipment

  • NOTE
  • BOOM AND STICKS
  • CAB
  • CAT TECHNOLOGY
  • ENGINE
  • ELECTRICAL SYSTEM
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • BOOM AND STICKS
  • CAB
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES
