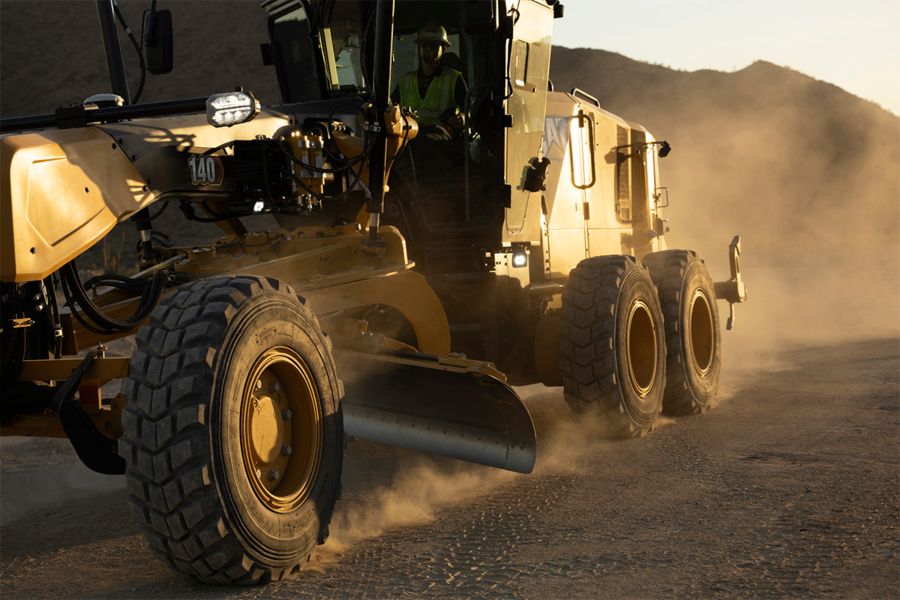

140 Next Gen

Cat

The Cat® 140 motor grader is a mid-size machine ideal for road maintenance. It delivers the right balance of power, control, and blade reach for grading, crowning, and ditching. Maintain your gravel, secondary roads in comfort with the redesigned cab.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Net Power - ISO 9249/SAE J1349	255	hp
Engine Model
Bore	4.1	in
Stroke	5.3	in
Displacement	1.9	Gal
Number of Cylinders
Operating Weight - Typically Equipped	42543	lb
Joystick Weight* Tier 4	42543	lb
Joystick All-Wheel Drive (AWD) Weight* Tier 4	43497	lb
Note (1)
Blade Width	12	ft
Forward/Reverse Gears
Transmission
Brakes - Service
Brakes - Secondary
Brakes - Parking
Circuit Type
Pump Type
Pump Output*	3503	psi
Reservoir Tank Capacity	15.9	Gal
Note
Cooling System	11.4	Gal
Diesel Exhaust Fluid Tank (Tier 4 Only)	6.6	Gal
Engine Crankcase	5.3	Gal
Fuel Tank	98	Gal
Hydraulic System	15.9	Gal
Transmission and Differential	18	Gal
Height - Top of Cab	136	in
Height - Front Axle Center	24.1	in
Height - Top of Cylinders	119.8	in
Height - Exhaust Stack	130.4	in
Length - Push Plate to Ripper	405	in
Length - Front Tire to Rear of Machine	350.8	in
Length - Between Tandem Axles	59	in
Width - Tire Center Lines	82.2	in
Ground Clearance - Rear Axle	13.1	in
Note
Steering
Brakes
Sound
Note

Standard Equipment

NOTE
OPERATOR ENVIRONMENT
SAFETY
POWERTRAIN
DRAWBAR CIRCLE MOLDBOARD
ELECTRICAL
SERVICE AND MAINTENANCE
GUARDS

Optional Equipment

NOTE
OPERATOR ENVIRONMENT
SAFETY
POWERTRAIN
DRAWBAR CIRCLE MOLDBOARD
ELECTRICAL
SERVICE AND MAINTENANCE
GUARDS
VERSATILITY
ATTACHMENTS AVAILABLE FROM FACTORY
ATTACHMENTS
