150 / 150 AWD JOY

Cat

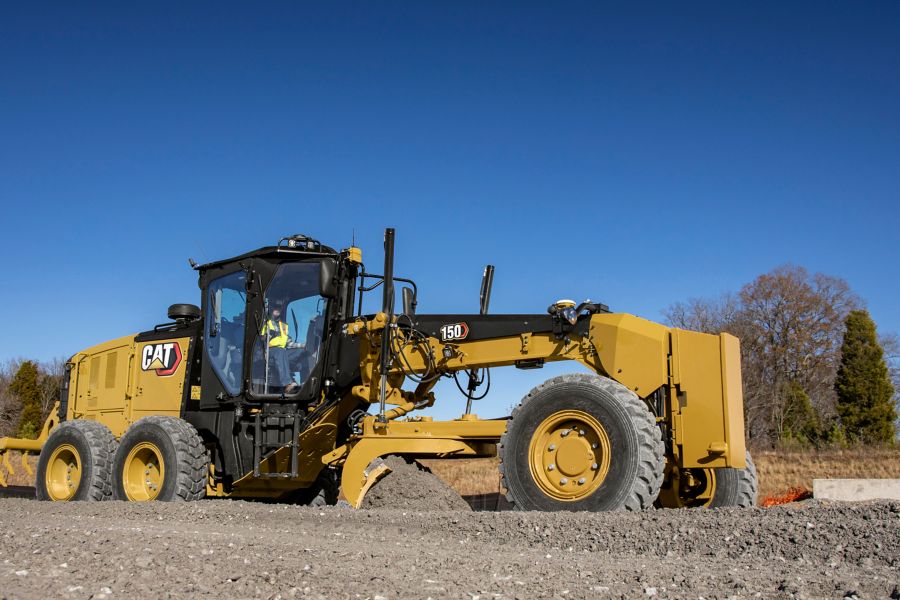

With a legendary Cat® pedigree, the 150 motor grader offers peak performance, efficiency, and long life. Joystick controls provide ergonomic comfort for the operator. Available with a deep array of technologies to lessen the load on operators and enhance grading performance, the motor grader is one highly productive machine.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Net Power Range (Tier 4)	200	hp
Engine Model
Bore	4.5	in
Stroke	5.9	in
Speed at Rated Power
VHP Plus - Gear - Net Power - Forward 2nd	210	hp
VHP Plus - Gear - Net Power - Forward 3rd	220	hp
Emissions
VHP Plus - Gear - Net Power - Forward 6th	241	hp
VHP Plus - Gear - Net Power - Forward 4th	231	hp
VHP Plus Range - Net
VHP Plus - Gear - Net Power - Forward 5th	236	hp
VHP Plus - Gear - Net Power - Reverse 1st	200	hp
VHP Plus - Gear - Net Power - Forward 1st	200	hp
VHP Plus - Gear - Net Power - Reverse 2nd	210	hp
Maximum Torque - VHP Plus	920	lb/ft
VHP Plus Range - Net - Metric
Base Power (1st Gear) - Net - Metric	202	hp
VHP Plus - Gear - Net Power - Forward 7th	247	hp
Torque Rise
VHP Plus - Gear - Net Power - Reverse 3rd-6th	220	hp
High Ambient - Fan Speed - Standard
Standard Capability	109	°F
VHP Plus - Gear - Net Power - Forward 8th	252	hp
Displacement	567.5	in³
Number of Cylinders
Derating Altitude	10000	ft
High Ambient - Fan Speed - Maximum
High Ambient - Fan Speed - Minimum
High - Ambient Capability	122	°F
Operating Weight - Typically Equipped	43950	lb
Forward/Reverse Gears
Transmission
Brakes - Service
Brakes - Service - Surface Area	3565	in²
Brakes - Parking
Brakes - Secondary
Blade Width	12	ft
Circuit Type
Pump Type
Pump Output	55.7	gpm
Maximum System Pressure	3500	psi
Reservoir Tank Capacity	16.9	gal (US)
Standby Pressure	885	psi
Top Speed - Forward	29	mile/h
Top Speed - Reverse	23	mile/h
Turning Radius - Outside Front Tires	25.59	ft
Steering Range - Left/Right
Articulation Angle - Left/Right
Forward - 1st	2.5	mile/h
Forward - 2nd	3.4	mile/h
Forward - 3rd	5	mile/h
Forward - 4th	6.9	mile/h
Forward - 5th	10.6	mile/h
Forward - 6th	14.5	mile/h
Forward - 7th	19.9	mile/h
Forward - 8th	29	mile/h
Reverse - 1st	2	mile/h
Reverse - 2nd	3.7	mile/h
Reverse - 3rd	5.4	mile/h
Reverse - 4th	8.4	mile/h
Reverse - 5th	15.7	mile/h
Reverse - 6th	23	mile/h
Fuel Capacity	104	gal (US)
Cooling System	15	gal (US)
Hydraulic System - Total	26.4	gal (US)
Hydraulic System - Tank	16.9	gal (US)
Diesel Exhaust Fluid	5.8	gal (US)
Transmission - Differential - Final Drives	18.5	gal (US)
Engine Oil	7.9	gal (US)
Tandem Housing - Each	20	gal (US)
Front Wheel Spindle Bearing Housing	0.13	gal (US)
Circle Drive Housing	1.8	gal (US)
Drawbar - Width	3	in
Circle - Diameter	60.2	in
Circle - Blade Beam Thickness	1.6	in
Drawbar - Height	6	in
Front Frame Structure - Width	12	in
Front Frame Structure - Height	12.6	in
Circle - Height	5.4	in
Drawbar - Thickness	0.5	in
Front-Top/Bottom Plate - Width	12	in
Front-Top/Bottom Plate - Thickness	0.87	in
Front Axle - Height to Center	23.5	in
Front Axle - Wheel Lean - Left/Right
Front Axle - Total Oscillation per Side
Height	19.9	in
Width	7.9	in
Sidewall Thickness - Inner	0.63	in
Sidewall Thickness - Outer	0.71	in
Drive Chain Pitch	2	in
Wheel Axle Spacing	60	in
Tandem Oscillation - Front Up
Tandem Oscillation - Front Down
Moldboard - Height	24	in
Moldboard - Thickness	0.87	in
Arc Radius	16.3	in
Throat Clearance	6.5	in
Cutting Edge Width	6	in
Cutting Edge Thickness	0.6	in
End Bit - Width	6	in
End Bit - Thickness	0.6	in
Blade Pull - Base GVW	25732	lb
Blade Pull - Maximum GVW	34262	lb
Blade Down Pressure - Base GVW	16480	lb
Blade Down Pressure - Maximum GVW	29308	lb
Moldboard - Blade Width	12	ft
Circle Centershift - Right	28.7	in
Circle Centershift - Left	27.4	in
Moldboard Sideshift - Right	26	in
Moldboard Sideshift - Left	20.1	in
Maximum Blade Position Angle
Blade Tip Range - Forward
Blade Tip Range - Backward
Maximum Shoulder Reach Outside of Tires - Right	77.9	in
Maximum Shoulder Reach Outside of Tires - Left	70.5	in
Maximum Lift Above Ground	18.9	in
Maximum Depth of Cut	28.1	in
Ripping Depth - Maximum	16.8	in
Ripper Shank Holder Spacing	21	in
Ripper Shank Holders
Penetration Force	20812	lb
Pry-Out Force	27794	lb
Machine Length Increase, Beam Raised	40.6	in
Rear - Scarifying Depth, Maximum	16.8	in
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing	4.6	in
Mid, V-Type - Scarifier Shank Holder Spacing	4.6	in
Mid, V-Type - Scarifier Shank Holders
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders
Front, V-Type, 5 or 11 Tooth - Working Width	40.6	in
Front, V-Type - Working Width	47.4	in
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum	18.4	in
Mid, V-Type - Scarifying Depth, Maximum	11.5	in
Mid, V-Type - Working Width	46.6	in
Rear - Working Width	84	in
Rear - Scarifier Shank Holders
Rear - Scarifier Shank Holder Spacing	10.5	in
Gross Vehicle Weight - Maximum - Front Axle	17075	lb
Gross Vehicle Weight - Maximum - Rear Axle	38069	lb
Operating Weight - Typically Equipped - Front Axle	12549	lb
Operating Weight - Typically Equipped - Rear Axle	31401	lb
Gross Vehicle Weight - Base - Front Axle	9601	lb
Gross Vehicle Weight - Base - Rear Axle	28590	lb
Gross Vehicle Weight - Maximum - Total	55144	lb
Gross Vehicle Weight - Base - Total	38191	lb
Operating Weight - Typically Equipped - Total	43950	lb
Height - Top of Cab	130	in
Length - Counterweight to Ripper	399	in
Width - Outside Front Tires	98.9	in
Length - Front Axle to Mid Tandem	241	in
Length - Front Tire to Rear of Machine	351	in
Length - Front Axle to Moldboard	100	in
Length - Between Tandem Axles	60	in
Width - Outside Rear Tires	98.9	in
Width - Tire Center Lines	84.3	in
Height - Front Axle Center	23.5	in
Height - Exhaust Stack	128	in
Height - Top of Cylinders	120	in
Ground Clearance - Rear Axle	13.3	in
