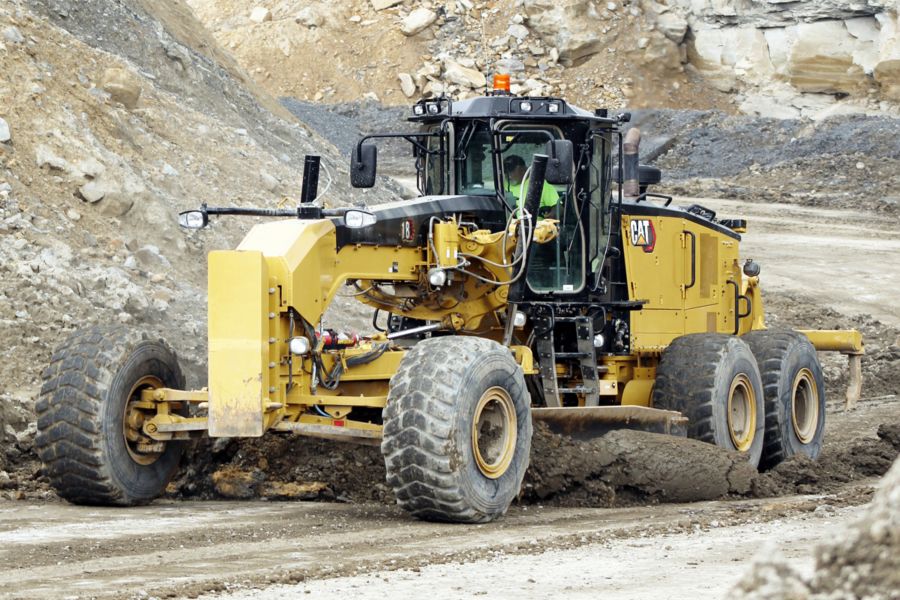

Cat® 18 motor grader powers through mining with high efficiency, advanced emissions control, and a wider moldboard. Ideal for haul road maintenance and mining operations, this heavy equipment cuts costs and ensures uptime with Cat durability.
Cat® 18 motor grader powers through mining with high efficiency, advanced emissions control, and a wider moldboard. Ideal for haul road maintenance and mining operations, this heavy equipment cuts costs and ensures uptime with Cat durability.

Brochures and Spec Sheets

Gallery

18 18 18 18 18 18 18 18

Specifications

Specification Value Unit
Base Power (1st Gear) - Net 304 hp
Engine Model
Bore 5.1 in
Stroke 6.2 in
Speed at Rated Power
Standard - Ambient Capability 122 °F
Base Power (1st Gear) - Net - Metric 309 hp
VHP Range - Net
Maximum Torque - ISO 9249 - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent 1270 lb/ft
Derating Altitude - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent 12176 ft
Derating Altitude - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent 12973 ft
Maximum Torque - ISO 9249 - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent 1270 lb/ft
Standard - Fan Speed - Minimum
Emissions (1)
Torque Rise - Tier 4/Stage IV/Japan 2014 (Tier 4 Final)
Maximum Torque - ISO 9249 - Tier 4/Stage IV/Japan 2014 (Tier 4 Final) 1306 lb/ft
Derating Altitude - Tier 4/Stage IV/Japan 2014 (Tier 4 Final) 12500 ft
Torque Rise - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent
Standard - Fan Speed - Maximum
Emissions (2)
Torque Rise - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent
VHP Range - Net - Metric
Emissions (3)
Displacement 763 in³
Number of Cylinders
Operating Weight - Typically Equipped 74324 lb
Forward/Reverse Gears
Transmission
Brakes - Parking
Brakes - Dynamic Brake Torque per Wheel 27069.27 lb/ft
Brakes - Service
Brakes - Secondary
Blade Width 18 ft
Circuit Type
Pump Type
Maximum System Pressure 3590 psi
Standby Pressure 856 psi
Pump Output* 74 gpm
Note
Forward - 6th 16.0 mile/h
Forward - 2nd 3.8 mile/h
Forward - 8th 32.1 mile/h
Forward - 5th 11.8 mile/h
Reverse - 3rd 6.0 mile/h
Turning Radius - Outside Front Tires 30.5 ft
Forward - 4th 7.6 mile/h
Top Speed - Reverse 25.3 mile/h
Forward - 7th 22.0 mile/h
Articulation Angle - Left/Right
Reverse - 1st 2.2 mile/h
Forward - 3rd 5.5 mile/h
Reverse - 4th 9.3 mile/h
Forward - 1st 2.8 mile/h
Top Speed - Forward 32.1 mile/h
Reverse - 6th 25.3 mile/h
Steering Range - Left/Right
Reverse - 2nd 4.1 mile/h
Reverse - 5th 17.4 mile/h
Fuel Capacity 131 gal (US)
Cooling System 18.5 gal (US)
Hydraulic System - Tank 18.5 gal (US)
Hydraulic System - Total 38.6 gal (US)
DEF Tank 4.2 gal (US)
Engine Oil 9.5 gal (US)
Transmission - Differential - Final Drives 26 gal (US)
Tandem Housing - Each 34 gal (US)
Front Wheel Spindle Bearing Housing 0.24 gal (US)
Circle Drive Housing 2.6 gal (US)
Front Frame Structure - Width 14.0 in
Front Axle - Height to Center 26.4 in
Circle - Diameter 71.7 in
Front Frame Structure - Thickness 0.6 in
Front Frame Structure - Height 18.1 in
Circle - Blade Beam Thickness 2 in
Drawbar - Width 3 in
Front Axle - Wheel Lean
Front Axle - Total Oscillation per Side
Drawbar - Height 8 in
Sidewall Thickness - Outer 0.9 in
Sidewall Thickness - Inner 0.9 in
Tandem Oscillation - Front Up
Tandem Oscillation - Front Down
Height 25.5 in
Width 9.3 in
Drive Chain Pitch 2.5 in
Wheel Axle Spacing 72.5 in
Arc Radius 16.3 in
Throat Clearance 5 in
Down Force - Maximum GVW 43861 lb
Blade Pull* - Base GVW 47216 lb
Blade Pull* - Maximum GVW 52878 lb
End Bit - Width 6 in
Down Force - Base GVW 34008 lb
Cutting Edge Thickness 1.4 in
Thickness 1 in
Width 18 ft
Cutting Edge Width 10 in
End Bit - Thickness 0.75 in
Height 31 in
Maximum Blade Position Angle
Maximum Lift Above Ground 15.7 in
Maximum Depth of Cut 18.5 in
Maximum Shoulder Reach Outside of Tires - Right 103 in
Circle Centershift - Right 22 in
Maximum Shoulder Reach Outside of Tires - Left 103 in
Moldboard Sideshift - Right 31.1 in
Blade Tip Range - Backward
Moldboard Sideshift - Left 29.1 in
Circle Centershift - Left 27.2 in
Blade Tip Range - Forward
Shank Holder Spacing - Minimum 17.5 in
Ripping Depth - Maximum 17.8 in
Ripper Shank Holders
Penetration Force 30311 lb
Pry-Out Force 43700 lb
Machine Length Increase, Beam Raised 63.4 in
Gross Vehicle Weight - Typically Equipped - Rear Axle 53830 lb
Gross Vehicle Weight - Base** - Total 72298 lb
Gross Vehicle Weight - Maximum Tested - Rear Axle 58753 lb
Gross Vehicle Weight - Maximum Tested - Front Axle 26125 lb
Gross Vehicle Weight - Typically Equipped - Front Axle 20494 lb
Gross Vehicle Weight - Base** - Front Axle 19837 lb
Gross Vehicle Weight - Maximum Tested - Total 84877 lb
Gross Vehicle Weight - Typically Equipped - Total 74324 lb
Gross Vehicle Weight - Base** - Rear Axle 52461 lb
Height - Top of Cylinders 122.6 in
Width - Outside Rear Tires 134.3 in
Height - Exhaust Stack 141.1 in
Length - Between Tandem Axles 72.5 in
Length - Front Axle to Mid Tandem 290 in
Width - Tire Center Lines 106.4 in
Length - Front Axle to Moldboard 120.7 in
Length - Counterweight to Ripper 474.4 in
Height - Front Axle Center 29.9 in
Width - Outside Front Tires 134.3 in
Length - Front Tire to Rear of Machine - Including Tow Hitch 417 in
Height - Top of Cab 147.5 in
Ground Clearance - Rear Axle 16.7 in
Sound
ROPS/FOPS
Brakes
Steering
Gear - Forward 1st 309 hp
Wheel Group - 19.5×25 MP (2)
Optimized VHP Range - Net
Gear - Forward 4th 321 hp
Gear - Reverse 2nd 304 hp
Gear - Forward 2nd 309 hp
Gear - Reverse 2nd 309 hp
Gear - Forward 4th 325 hp
Gear - Forward 6th 341 hp
Wheel Group - 19.5×25 MP (1)
Gear - Forward 1st 304 hp
Gear - Reverse 3rd-6th 311 hp
Gear - Forward 3rd 311 hp
Gear - Forward 5th 332 hp
Gear - Forward 5th 327 hp
Gear - Forward 7th 342 hp
Wheel Group - 19.5×25 MP (3)
Shank Holder Spacing - Maximum 20 in
Note (2)
Gear - Forward 2nd 304 hp
Gear - Forward 8th 362 hp
Gear - Reverse 1st 309 hp
Gear - Forward 3rd 315 hp
Gear - Forward 7th 347 hp
Air Conditioning
Wheel Group - 19.5×25 MP (4)
Gear - Reverse 1st 304 hp
Note (1)
Gear - Forward 6th 337 hp
Gear - Forward 8th 357 hp
Gear - Reverse 3rd-6th 315 hp
Wheel Group - 19.5×25 MP (5)
Note
Note

Standard Equipment

  • NOTE
  • OPERATOR ENVIRONMENT
  • POWER TRAIN
  • GUARDS
  • ELECTRICAL
  • SAFETY
  • OTHER STANDARD EQUIPMENT
  • WORK TOOLS/G.E.T.
  • TIRES, RIMS, AND WHEELS
  • FLUIDS

Optional Equipment

  • NOTE
  • OPERATOR ENVIRONMENT
  • POWER TRAIN
  • GUARDS
  • SAFETY
  • OTHER ATTACHMENTS
  • WORK TOOLS/G.E.T.
  • FLUIDS
