24

Cat

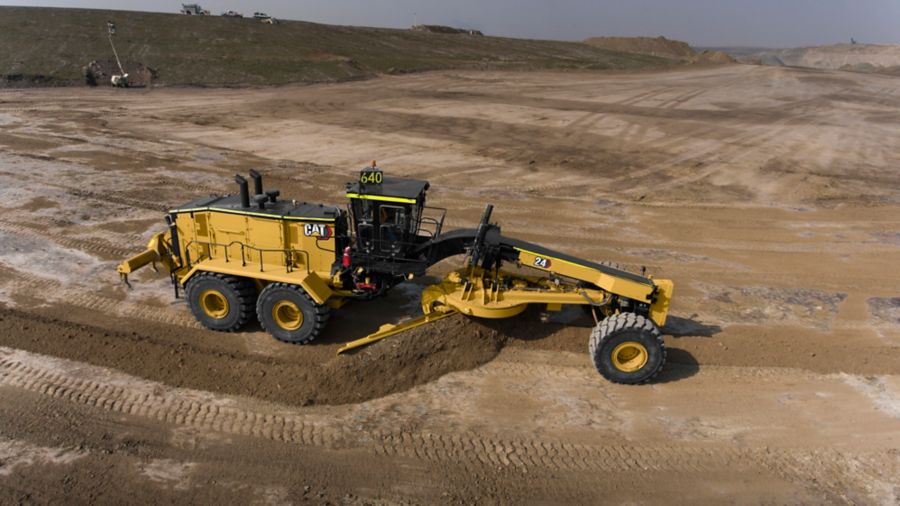

Maintain mine site haul roads for maximum productivity with the Cat® 24 motor grader. At 535 hp (399 kW), its 24-foot moldboard grades in fewer passes. Built to perform in tough mining conditions, the 24 grader delivers safety, comfort, and lower operating costs.

Maximize your minesite's productivity with the Cat® 24 motor grader. By building and maintaining haul roads, the 24 motor grader is designed to help you get more work done with lower owning and operating costs. Stay safe and comfortable with the updated cab.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Net Power - EEC 80/1269	535	hp
Bore	5.4	in
Stroke	6	in
Note (1)
Note (3)
Note (2)
Standard Capability	122	°F
Emissions
Note (4)
Engine Model
Displacement	1648	in³
Number of Cylinders
Operating Weight - Typically Equipped	165314	lb
Blade Width	24	ft
Blade Height	40	in
Maximum Depth of Cut	21.7	in
Maximum Lift Above Ground	16.1	in
Air Conditioning

Standard Equipment

NOTE
POWER TRAIN
ELECTRICAL
OPERATOR ENVIRONMENT
TECHNOLOGY PRODUCTS
SAFETY AND SECURITY
GROUND ENGAGING TOOLS
OTHER STANDARD EQUIPMENT

Optional Equipment

NOTE
OPERATOR ENVIRONMENT
POWER TRAIN
GUARDS
ELECTRICAL
SAFETY
OTHER ATTACHMENTS
WORK TOOLS/G.E.T.
FLUIDS
