773

773
New Product

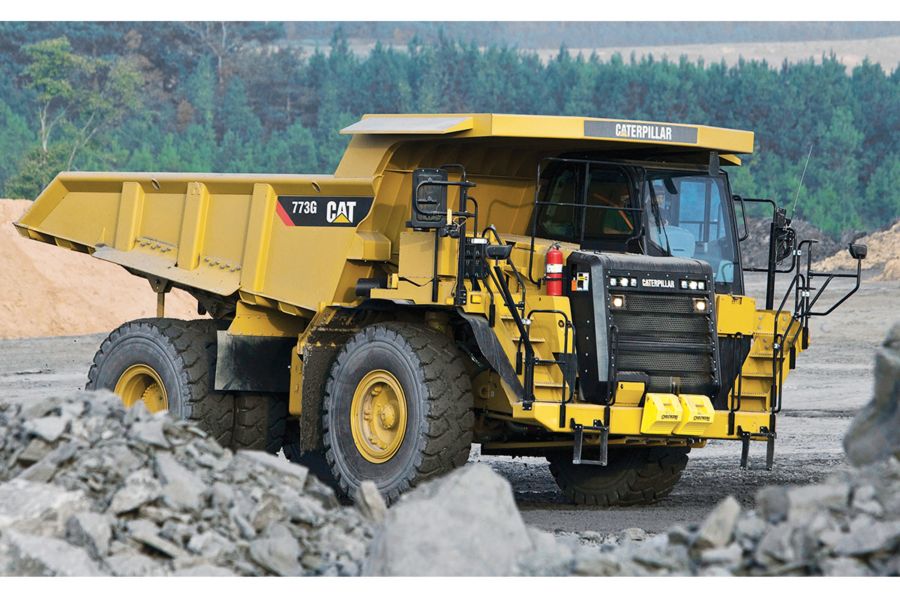

Caterpillar is pleased to introduce to you the 773
Off-Highway Truck. You may be asking how, after 40 years of building trucks, Caterpillar has improved this product’s ability to support your business.
The 773 has been designed and manufactured using the latest quality control technologies – virtual and hands on. This product has over 30,000 hours of proven performance in the hands of customers prior to production, all of which ensures the truck delivered to your yard is ready to work, reliably and dependably.
In addition to quality, Cat 773 Series trucks will lower your costs with seven different ways to help you conserve fuel. We offer you two customizable fuel economy modes that will let you choose your level of savings. With Cat 773 trucks in your haul fleet, you can be more productive, spend less time on maintenance, and support the environment with new levels of eco performance. Your crew will appreciate all the new comfort and conveniences in our updated cab. Simply put, Cat 773 trucks can and will make a positive difference to both your business and people – all day, every day.
The 773 Off-Highway Trucks represent a new era for Cat’s Off-Highway Trucks and the 773 provides our customers with a quality operating environment that enhances productivity and provides significant savings in fuel consumption, too. Ergonomically designed with an operator’s comfort in mind, the 773 has an updated cab with new comforts as well as controls conveniently placed within reach of the operator’s hands. Built with a Cat C27 diesel engine, this 60-ton payload uses increased torque delivering 5% additional horsepower. An ideal pass match for the 773 Off-Highway Truck is Cat’s 988K Wheel Loader, 990K Wheel Loader, or the 390F Hydraulic Excavator. Simply put, the 773 will make a positive difference in haul performance all day, every day for today and tomorrow’s work.

Brochures and Spec Sheets

Gallery

Specifications

Specification Value Unit
Engine Model
Rated Engine Speed 1800 r/min
Gross Power - SAE J1995:2014 775 hp
Net Power - SAE J1349:2011 719 hp
Net Power - 80/1269/EEC 762 hp
Net Power - ISO 9249 762 hp
Bore 5.4 in
Stroke 6 in
Displacement 1648 in³
Note (3)
Engine Power - ISO 14396 764 hp
Note (1)
Net Torque 3148 ft-lb
Note (2)
Peak Torque - Speed 1200 r/min
Maximum Gross Vehicle Weight 226501 lb
Nominal Payload Class (100%) 61 ton (US)
Top Speed - Loaded 41.6 mile/h
Note (1)
Body Capacity - SAE 2:1 46.8 yd³
Maximum Working Payload (110%) 67.1 ton (US)
Target Payload (100%) 61 ton (US)
Note (2)
Forward - 1 6.6 mile/h
Forward - 2 9.3 mile/h
Forward - 3 12.6 mile/h
Forward - 4 16.8 mile/h
Forward - 5 22.8 mile/h
Forward - 6 30.7 mile/h
Forward - 7 41.6 mile/h
Reverse 8.7 mile/h
Note
Differential Ratio
Planetary Ratio
Total Reduction Ratio
Brake Surface - Front 257 in²
Brake Surface - Rear 9497 in²
Brake Standards
Pump Flow - High Idle 118 gpm
Relief Valve Setting - Raise 2502 psi
Relief Valve Setting - Lower 500 psi
Body Raise Time - High Idle 10 s
Body Lower Time - Float 14 s
Body Power Down - High Idle 14 s
Struck 35.13 yd³
Note (1)
Heaped (SAE 2:1)* 46.76 yd³
Note (2)
Struck 34.33 yd³
Heaped (SAE 2:1)* 46.41 yd³
Note (2)
Note (1)
Front Axle - Empty 53 %
Front Axle - Loaded 35 %
Rear Axle - Empty 47 %
Rear Axle - Loaded 65 %
Rear axle - Oscillation 8.1 °
Empty Loaded Cylinder Stroke Front 9.2 in
Empty Loaded Cylinder Stroke Rear 5.8 in
Fuel Tank 210 gal (US)
Cooling System 45 gal (US)
Differential - Final Drives 38 gal (US)
Steering Tank 9.5 gal (US)
Steering System - Including Tank 14 gal (US)
Brake/Hoist Hydraulic Tank 46.5 gal (US)
Torque Converter - Transmission System - HRC 18 gal (US)
Brake Hoist System 85 gal (US)
Crankcase 24 gal (US)
Note (2)
Note (1)
Standard Tire
FOPS Standards
ROPS Standards
Sound Standards (1)
Sound Standards (2)
Sound Standards (3)
Turning Diameter - Front 77.1 ft
Steering Standards
Steer Angle 31 °
Turning Circle - Clearance Diameter 85.6 ft
Maximum Allowable Payload (120%)* 73.2 ton (US)

Standard Equipment

  • NOTE
  • POWER TRAIN
  • SUSPENSION SYSTEMS
  • ELECTRICAL
  • TECHNOLOGY PRODUCTS
  • OPERATOR ENVIRONMENT
  • GUARDS
  • FLUIDS
  • OTHER STANDARD EQUIPMENT

Optional Equipment

  • NOTE
  • OPTIONAL EQUIPMENT
