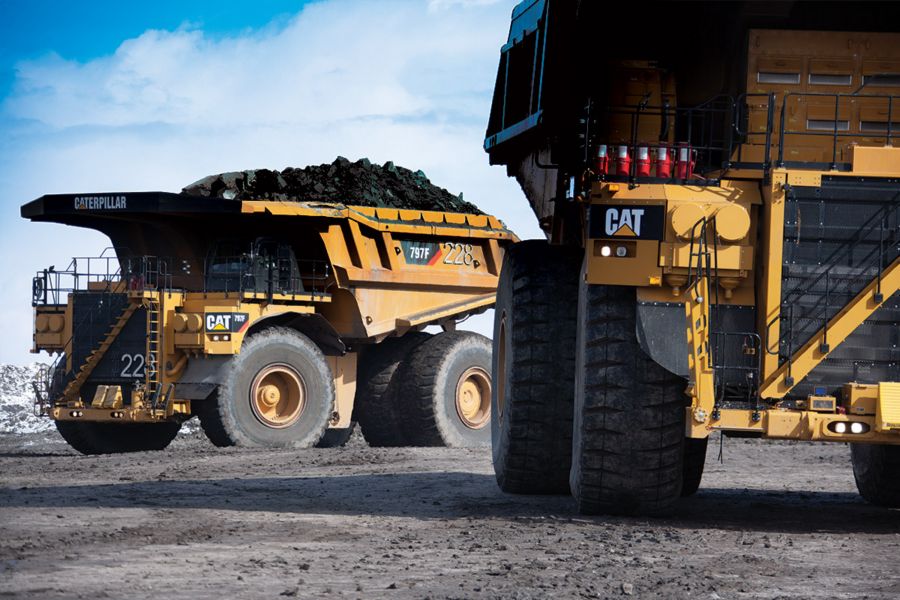

797F
What makes the Cat® 797F Mining Truck the most productive 363-tonne (400-ton) truck in the market? Is it the best-in-class payload? Superior braking that leads to confident, productive operators? Or a tough, rugged frame that delivers performance and long life no matter the conditions? Today’s 797F delivers all of this—and more. It’s fast, fuel efficient and delivers class-leading productivity, making it the industry benchmark for lower cost per ton in its size class. It hauls more every load, every cycle and every shift. And it delivers a better bottom line to the most important mine in the world: yours.
What makes the Cat® 797F Mining Truck the most productive 363-tonne (400-ton) truck in the market? Is it the best-in-class payload? Superior braking that leads to confident, productive operators? Or a tough, rugged frame that delivers performance and long life no matter the conditions? Today’s 797F delivers all of this—and more. It’s fast, fuel efficient and delivers class-leading productivity, making it the industry benchmark for lower cost per ton in its size class. It hauls more every load, every cycle and every shift. And it delivers a better bottom line to the most important mine in the world: yours.
Brochures and Spec Sheets
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Gross Power - SAE J1995 | 4000 | hp |
| Engine Model | ||
| Net Power - SAE J1349 | 3795 | hp |
| Rated Speed | 1750 | r/min |
| Emissions | ||
| Bore | 6.9 | in |
| Stroke | 8.7 | in |
| Displacement | 6469 | in³ |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Nominal Rated Payload | 400 | ton (US) |
| Rated Gross Machine Weight | 1375000 | lb |
| Chassis Weight | 474472 | lb |
| Body Weight | 94799 | lb |
| Note (1) | ||
| Note (2) | ||
| Note (4) | ||
| Front Axle - Empty | ||
| Rear Axle - Empty | ||
| Front Axle - Loaded | ||
| Rear Axle - Loaded | ||
| Note | ||
| Type | ||
| Differential Ratio | ||
| Planetary Ratio | ||
| Total Reduction Ratio | ||
| Note | ||
| Forward - 1 | 6.6 | mile/h |
| Forward - 2 | 8.9 | mile/h |
| Forward - 3 | 12 | mile/h |
| Forward - 4 | 16.2 | mile/h |
| Forward - 5 | 21.8 | mile/h |
| Forward - 6 | 29.4 | mile/h |
| Forward - 7 | 39.5 | mile/h |
| Reverse | 7.4 | mile/h |
| Top Speed - Loaded | 39.5 | mile/h |
| Tires | ||
| Rims | ||
| Note | ||
| Note (1) | ||
| Service Brakes | ||
| Front Wet Disc Brake Surface Area | 20500 | in² |
| Rear - Wet Disc Brake Surface Area | 30750 | in² |
| Standards | ||
| Parking Brake | ||
| Load Brake | ||
| Note | ||
| Struck | ||
| Heaped (SAE 2:1)* | ||
| Note (1) | ||
| Type | ||
| Pump Flow - High Idle | 317 | gpm |
| Relief Valve Setting - Raise | 3510 | psi |
| Body Raise Time - High Idle | 25 | s |
| Body Lower Time - Float | 18 | s |
| Body Power Down- High Idle | 18 | s |
| Type | ||
| Effective Cylinder Stroke - Front | 3.9 | in |
| Effective Cylinder Stroke - Rear | 3.7 | in |
| Rear axle - Oscillation | ||
| Fuel Tank | 1000 | gal (US) |
| Fuel Tank (Tier 4) | 1200 | gal (US) |
| Diesel Exhaust Fluid Tank | 100 | gal (US) |
| Cooling System | 306 | gal (US) |
| Crankcase | 103 | gal (US) |
| Front Wheels - Each | 16 | gal (US) |
| Differentials | 330 | gal (US) |
| Steering Tank | 67 | gal (US) |
| Steering System - Including Tank | 95 | gal (US) |
| Brake/Hoist Tank | 203 | gal (US) |
| Brake Hoist System - Includes Tank | 489 | gal (US) |
| Torque Converter Sump | 80 | gal (US) |
| Torque Converter/Transmission System - Including Sump | 166 | gal (US) |
| Note (1) | ||
| Air Conditioning | ||
| Heater / Defroster | 38900 | Btu/h |
| Note | ||
| FOPS Standards | ||
| ROPS Standards (2) | ||
| Sound Standards (2) | ||
| Steering Angle | 40 | ° |
| Steering Standards | ||
| Turning Diameter - Front | 122.7 | ft |
| Note | ||
| Rear Axle - Clearance - Loaded | 3.08 | ft |
| Inside Body Depth - Maximum | 11 | ft |
| Overall Height - Body Raised | 51.5 | ft |
| Loaded Ground Clearance | 2.58 | ft |
| Loading Height - Empty | 23 | ft |
| Engine Guard Clearance - Loaded | 3.33 | ft |
| Height - Top of ROPS - Empty | 21.4 | ft |
| Front Canopy Height - Empty | 25.33 | ft |
| Overall Body Length | 48.6 | ft |
| Inside Body Length | 32.75 | ft |
| Overall Length | 49.5 | ft |
| Wheel Base | 23.58 | ft |
| Rear Axle - Tail | 12.9 | ft |
| Dump Clearance | 6.58 | ft |
| Centerline Front Tire Width | 21.41 | ft |
| Overall Canopy Width | 29.91 | ft |
| Outside Body Width | 32 | ft |
| Inside Body Width | 27.91 | ft |
| Centerline of Rear Dual Tire Width | 20.41 | ft |
| Overall Tire Width | 31.25 | ft |
Standard Equipment
- ELECTRICAL
- OPERATOR ENVIRONMENT
- POWER TRAIN
- OTHER STANDARD EQUIPMENT
- ANTIFREEZE
Optional Equipment
- OPTIONAL EQUIPMENT
