770 Bare Chassis

770 Bare Chassis
Cat
Request a Quote Find a Location
Caterpillar offers partial machines and systems in collaboration with Cat® dealers and Original Equipment Manufacturers (OEMs), providing specialty machines tailored to specific applications. Bare chassis trucks can be ordered with or without hoist cylinders, and most product options are the same as those available on dump truck models.

These models feature a higher Tractor ROPS certification for specialty applications, including water trucks, tow trucks, and fuel/lube trucks. Partial machine configurations are commonly used in construction, demolition, waste, material handling, and mining industries. These bare chassis options make it easier to purchase complete solutions through your Cat dealer, along with additional service and support.
Caterpillar offers partial machines and systems, working with Cat dealers and Original Equipment Manufacturers (OEMs) to provide specialty machines for specific applications. Bare chassis trucks (WTR models) can be ordered with or without hoist cylinders and most product options are identical to the dump truck models. Typically, these models come equipped with the higher Tractor ROPS certification ratings needed for specialty machines including water trucks, tow tractors, and fuel / lube trucks. You'll find these partial machine configurations are used in construction, demolition, waste, material handling, and mining industries and allow you to purchase complete solutions from your Cat dealer, using Cat equipment every step of the way.

Brochures and Spec Sheets

Gallery

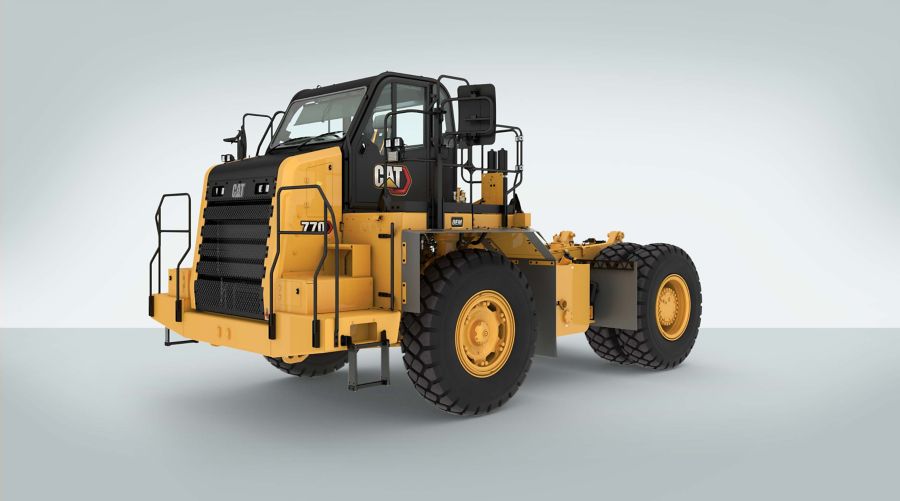

770 Bare Chassis 770 Bare Chassis 770 Bare Chassis

Specifications

Specification Value Unit
Engine Model
Rated Engine Speed 1700 r/min
Gross Power - SAE J1995 515 hp
Rated Net Power - SAE J1349 477 hp
Number of Cylinders
Bore 5.4 in
Stroke 6.7 in
Displacement 927.6 in³
Note
LRC Bare Chassis Weight without Hoist 54357 lb
LRC Bare Chassis Weight with Hoist 55166 lb
LRC Gross Vehicle Weight (Target) with Hoist 157000 lb
LRC Gross Vehicle Weight (Target) without Hoist 157000 lb
HRC Bare Chassis Weight without Hoist 55510 lb
HRC Bare Chassis Weight with Hoist 56319 lb
HRC Gross Vehicle Weight (Target) with Hoist 157000 lb
HRC Gross Vehicle Weight (Target) without Hoist 157000 lb
Note
Nominal Water Tank Capacity 9000 gal (US)
Tractor ROPS 77430 lb
Forward - 1 7.4 mile/h
Forward - 2 10.1 mile/h
Forward - 3 13.8 mile/h
Forward - 4 18.5 mile/h
Forward - 5 25.1 mile/h
Forward - 6 33.8 mile/h
Forward - 7 45.8 mile/h
Reverse 8.8 mile/h
Note
Brake Surface - Front 216 in²
Brake Surface - Rear 6235 in²
Fuel Tank Capacity 140 gal (US)
Cooling System 33 gal (US)
Crankcase 17 gal (US)
Differential - Final Drives 47 gal (US)
Steering System - Including Tank 23 gal (US)
Brake/Hoist Hydraulic Tank 38 gal (US)
Brake Hoist System 60 gal (US)
Torque Converter - Transmission System 17 gal (US)
Steering Standards
Steer Angle 40.5 °
Turning Diameter 57.7 ft
Turning Circle - Clearance Diameter 66.6 ft

Standard Equipment

  • For more information on 770 Bare Chassis options, please contact Caterpillar OEM Solutions at <a href="mailto:oem_solutions@cat.com">oem_solutions@cat.com</a>.
  • NOTE
  • POWERTRAIN
  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • OTHER STANDARD EQUIPMENT
  • FLUIDS & FILTERS
  • CAT TECHNOLOGY PRODUCTS

Optional Equipment

  • OPTIONAL EQUIPMENT
  • CAT TECHNOLOGY PRODUCTS
