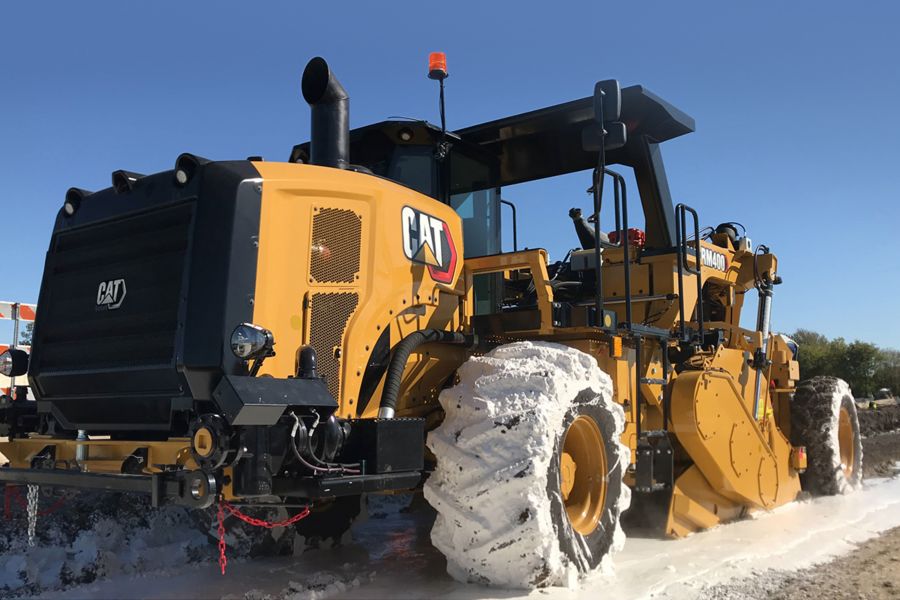

RM400
The versatile Cat® RM400 Reclaimer/Stabilizer delivers excellent material gradation, outstanding maneuverability, and simple operation with superb visibility for excellent overall job site performance. Your toughest road rehabilitation and soil stabilization jobs have met their match.
The versatile Cat® RM400 Reclaimer/Stabilizer delivers excellent material gradation, outstanding maneuverability, and simple operation with superb visibility for excellent overall job site performance. Your toughest road rehabilitation and soil stabilization jobs have met their match.
Brochures and Spec Sheets
- RM400 Key Features and Beneifts
- RM400 Product Brochure
- Rotor Selection Guide
- Paving Product Line Brochure
- Paving Application Guides and e-Books
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Maximum Operating Weight | 57682 | lb |
| Cutting/Mixing Width | 96 | in |
| Maximum Cutting/Mixing Depth | 20 | in |
| Operating Speed | 2.97 | mile/h |
| Maximum Travel Speed | 6.8 | mile/h |
| Rotor Options | ||
| Rotor Speed - First (at 2100 Engine rpm) | 108 | r/min |
| Rotor Speed - Second (at 2100 Engine rpm) | 134 | r/min |
| Rotor Speed - Third (at 2100 Engine rpm) | 159 | r/min |
| Gross Power | 415.7 | hp |
| Engine Model | ||
| Length | 31.4 | ft |
| Width | 9.8 | ft |
| Maximum Height | 11.5 | ft |
| Wheel Base | 20.7 | ft |
| Ground Clearance | 19.7 | in |
| Fuel Tank Capacity | 279 | gal (US) |
Standard Equipment
- OPERATING ENVIRONMENT
- POWERTRAIN
- ELECTRICAL SYSTEM
- ROTOR DRIVE SYSTEM
- SERVICE AND MAINTENANCE
- SAFETY
Optional Equipment
- OPERATING ENVIRONMENT
- POWERTRAIN
- SPRAY SYSTEMS
- ROTOR DRIVE SYSTEM
- SERVICE AND MAINTENANCE
- SAFETY
