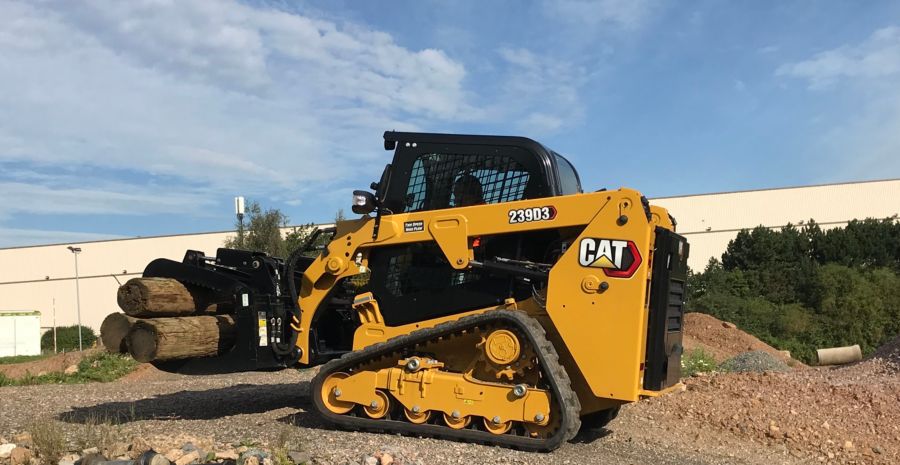

The Cat® 239D3 Compact Track Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.
The Cat® 239D3 Compact Track Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.

Brochures and Spec Sheets

Gallery

239D3 239D3

Specifications

Specification Value Unit
Gross Power - SAE J1995:2014 67.1 hp
Rated Operating Capacities - 35% Tipping Load 1530 lb
Operating Weight 7434 lb
Vehicle Width (320 mm/12.6 in tracks) 66 in
Ground Clearance 7.7 in
Length - With Bucket on Ground 127.3 in
Length - Without Bucket 99.3 in
Maximum Reach - With Arms Parallel to Ground 53.4 in
Turning Radius from Center - Bucket 81.5 in
Overall Length - Track 71.2 in
Reach - Maximum Lift/Dump 22.2 in
Vehicle Width (400 mm/15.7 in tracks) 69.1 in
Maximum Overall Height 143.5 in
Bucket Pin Height - Carry Position 8.6 in
Length - Track on Ground 54.5 in
Clearance at Maximum Lift and Dump 81 in
Bucket Pin Height - Maximum Lift 111.2 in
Departure Angle
Rack Back Angle - Maximum Height
Turning Radius from Center - Coupler 45.6 in
Note
Height - Top of Cab 80.1 in
Maximum Dump Angle
Turning Radius from Center - Machine Rear 57.4 in
Tipping Load 4370 lb
Breakout Force - Tilt Cylinder 3913 lb
Rated Operating Capacity with Optional Counterweight 2400 lb
Ground Contact Area - With 320 mm/12.6 in Track 1373 in²
Ground Pressure - With 320 mm/12.6 in Track 5.4 psi
Note
Ground Contact Area - With 400 mm/15.7 in Track 1716 in²
Ground Pressure - With 400 mm/15.7 in Track 4.4 psi
Hydraulic Flow - High Flow - Loader Hydraulic Flow 26 gpm
Hydraulic Flow - Standard - Loader Hydraulic Pressure 3336 psi
Hydraulic Flow - Standard - Loader Hydraulic Flow 18 gpm
Hydraulic Flow - High Flow - Loader Hydraulic Pressure 3336 psi
Hydraulic Flow - High Flow - Hydraulic Power (Calculated) 50.9 hp
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 35.5 hp
ROPS
FOPS
Travel Speed - Forward or Reverse - Two Speed 7.6 mile/h
Travel Speed - Forward or Reverse - One Speed 5 mile/h
Cooling System 3.2 gal (US)
Engine Crankcase 2.6 gal (US)
Fuel Tank 15.1 gal (US)
Hydraulic System 11.9 gal (US)
Hydraulic Tank 9 gal (US)
Displacement 134.3 in³
Bore 3.3 in
Stroke 3.9 in
Note
Rated Operating Capacities - 50% Tipping Load 2185 lb
Peak Torque - 1,500 rpm - SAE J1995 153 ft·lbf
Net Power - SAE 1349 65.8 hp
Note (2)
Net Power - ISO 9249 66.5 hp
Outside Cab*** 103 dB(A)
Note (3)
Note (1)
Engine Model
Net Power 65.8 hp
Inside Cab** 83 dB(A)
Air Conditioning

Standard Equipment

  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • POWER TRAIN
  • OTHER
  • MANDATORY EQUIPMENT

Optional Equipment

  • OPTIONAL EQUIPMENT
