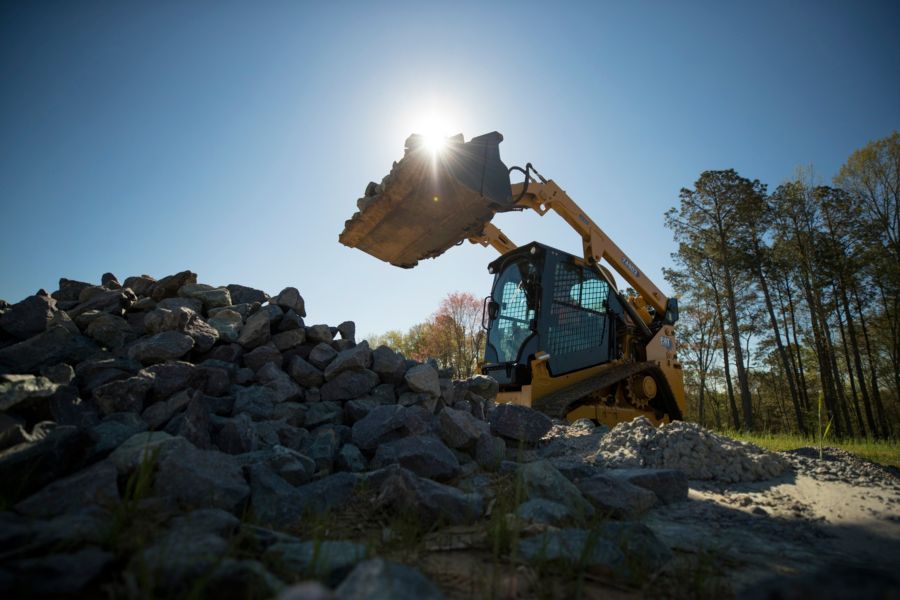

249D3
The Cat® 249D3 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.
The Cat® 249D3 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.
Brochures and Spec Sheets
- 249D3 Product Brochure
- 239D3/249D3/259D3/279D3/289D3/299D3/299D3 XE Product Brochure
- Advanced Display User Guide for Skid Steer, Compact Track, and Multi Terrain Loaders - D/D2/D3 Series
- Retrofit Options and Accessories Guide for Compact Track, Skid Steer and Multi Terrain Loaders
- Cat Attachments for D3 Series Skid Steer Loaders and Compact Track Loaders Brochure
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Gross Power - SAE J1995:2014 | 67.1 | hp |
| Rated Operating Capacities - 35% Tipping Load | 1740 | lb |
| Operating Weight | 7831 | lb |
| Tipping Load | 4970 | lb |
| Length - Track on Ground | 54.5 | in |
| Overall Length - Track | 71.2 | in |
| Height - Top of Cab | 80.3 | in |
| Ground Clearance | 7.6 | in |
| Departure Angle | ||
| Maximum Dump Angle | ||
| Vehicle Width (400 mm/15.7 in tracks) | 69.1 | in |
| Length - With Bucket on Ground | 127.3 | in |
| Ground Contact Area - With 320 mm/12.6 in Track | 1373 | in² |
| Maximum Overall Height | 150.8 | in |
| Bucket Pin Height - Carry Position | 8.6 | in |
| Maximum Reach - With Arms Parallel to Ground | 51.8 | in |
| Length - Without Bucket | 99.3 | in |
| Turning Radius from Center - Machine Rear | 57.4 | in |
| Ground Pressure - With 320 mm/12.6 in Track | 5.7 | psi |
| Bucket Pin Height - Maximum Lift | 118.2 | in |
| Clearance at Maximum Lift and Dump | 88.7 | in |
| Vehicle Width (320 mm/12.6 in tracks) | 66 | in |
| Turning Radius from Center - Coupler | 45.7 | in |
| Reach - Maximum Lift/Dump | 28.6 | in |
| Rack Back Angle - Maximum Height | ||
| Turning Radius from Center - Bucket | 81.1 | in |
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 3336 | psi |
| Hydraulic Flow - High Flow - Loader Hydraulic Flow | 26 | gpm |
| Hydraulic Flow - High Flow - Loader Hydraulic Pressure | 3336 | psi |
| Hydraulic Flow - High Flow - Hydraulic Power (Calculated) | 50.9 | hp |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 18 | gpm |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 35.5 | hp |
| ROPS | ||
| FOPS | ||
| Travel Speed - Forward or Reverse - One Speed | 5 | mile/h |
| Travel Speed - Forward or Reverse - Two Speed | 7.6 | mile/h |
| Engine Crankcase | 2.6 | gal (US) |
| Fuel Tank | 15.1 | gal (US) |
| Hydraulic System | 11.9 | gal (US) |
| Cooling System | 3.2 | gal (US) |
| Hydraulic Tank | 9 | gal (US) |
| Displacement | 134.3 | in³ |
| Bore | 3.3 | in |
| Stroke | 3.9 | in |
| Net Power - ISO 9249 | 66.5 | hp |
| Net Power | 65.8 | hp |
| Net Power - SAE 1349 | 65.8 | hp |
| Breakout Force - Tilt Cylinder | 3907 | lb |
| Note | ||
| Peak Torque - 1,500 rpm - SAE J1995 | 153 | ft·lbf |
| Bucket Pin Reach - Maximum Lift | 12.2 | in |
| Ground Contact Area - With 400 mm/15.7 in Track | 1716 | in² |
| Engine Model | ||
| Outside Cab*** | 103 | dB(A) |
| Inside Cab** | 83 | dB(A) |
| Note | ||
| Ground Pressure - With 400 mm/15.7 in Track | 4.7 | psi |
| Note (3) | ||
| Rated Operating Capacities - 50% Tipping Load | 2485 | lb |
| Note | ||
| Note (2) | ||
| Rated Operating Capacity with Optional Counterweight | 2700 | lb |
| Note (1) | ||
| Air Conditioning |
Standard Equipment
- ELECTRICAL
- OPERATOR ENVIRONMENT
- POWER TRAIN
- OTHER
- MANDATORY EQUIPMENT
Optional Equipment
- OPTIONAL EQUIPMENT
