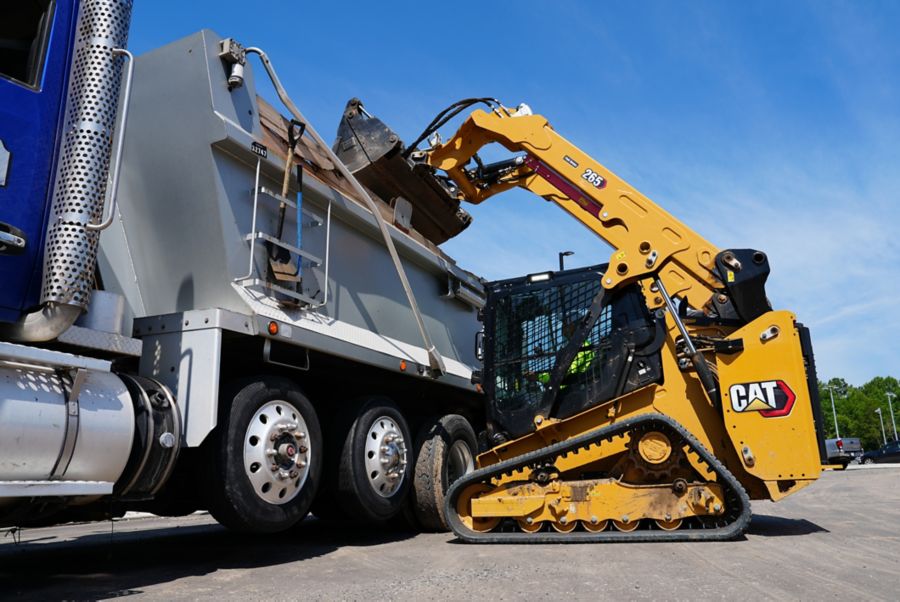

The Cat® 265 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard torsion suspension undercarriage system provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.
The Cat® 265 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard torsion suspension undercarriage system provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions

Brochures and Spec Sheets

Gallery

265 265 265 265 265 265 265 265

Specifications

Specification Value Unit
Gross Power - SAE J1995:2014 74 hp
Engine Model
Net Power - ISO 9249 73 hp
Net Power - SAE 1349 74 hp
Peak Torque at 1,360 rpm SAE J1995 280 lb/ft
Displacement 171 in²
Stroke 4.3 in
Bore 3.5 in
Rated Operating Capacities - 35% Tipping Load 2823 lb
Rated Operating Capacities - 50% Tipping Load 4033 lb
Rated Operating Capacity with Optional Counterweight - 35% Tipping Load 1343 kg
Tipping Load 8066 lb
Breakout Force - Lift Cylinder 6739 lb
Breakout Force - Tilt Cylinder 8680 lb
Ground Contact Area - With 450 mm/17.7 in Track 2512 in²
Ground Pressure - With 450 mm/17.7 in Track 4.2 psi
Operating Weight 10492 lb
Counterweight Adds to Operating Weight 276 lb
Enclosed Cab Adds to Operating Weight 181 lb
Note
Cooling System 2.8 gal (US)
Engine Crankcase 2.1 gal (US)
Fuel Tank 31.9 gal (US)
Hydraulic System 9.7 gal (US)
Hydraulic Tank 6.9 gal (US)
Bucket Pin Height - Carry Position 8.4 in
Bucket Pin Height - Maximum Lift 132 in
Bucket Pin Reach - Maximum Lift 9.8 in
Clearance at Maximum Lift and Dump 104.5 in
Departure Angle
Ground Clearance 8.5 in
Height - Top of Cab 83.3 in
Length - Track on Ground 64 in
Length - With Bucket on Ground 140.9 in
Length - Without Bucket 116.1 in
Maximum Overall Height 164.3 in
Maximum Reach - With Arms Parallel to Ground 46.7 in
Overall Length - Track 83.7 in
Rack Back Angle - Maximum Height
Reach at Maximum Lift/Dump 25.1 in
Roll Back Angle
Turning Radius from Center - Bucket (racked) 87.8 in
Turning Radius from Center - Coupler 56.5 in
Turning Radius from Center - Machine Rear 68.5 in
Vehicle Width (450 mm/17.7 in tracks) 75.8 in
Maximum Dump Angle
Hydraulic Flow - Standard - Loader Hydraulic Pressure 3500 psi
Hydraulic Flow - Standard - Loader Hydraulic Flow 23 gpm
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 46.4 hp
Hydraulic Flow - High Flow - Loader Hydraulic Pressure 3500 psi
Hydraulic Flow - High Flow - Loader Hydraulic Flow 30 gpm
Hydraulic Flow - High Flow - Hydraulic Power (Calculated) 60.9 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure 4061 psi
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow 34 gpm
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) 80.7 hp
Travel Speed - Forward or Reverse - One Speed 5 mile/h
Travel Speed - Forward or Reverse - Two Speed 8.1 mile/h
ROPS
FOPS
FOPS Level II
Inside Cab* 80 dB(A)
Outside Cab** 103 dB(A)
Note (1)
Note (2)
Note (3)
Recyclability

Standard Equipment

  • STANDARD EQUIPMENT
  • PERFORMANCE PACKAGES
  • COMFORT PACKAGES
  • TECHNOLOGY PACKAGES
  • RADIO
  • PRODUCT LINK™
  • COOLING FAN
  • GUARDING AND SEALING PACKAGES
  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • HYDRAULICS
  • POWER TRAIN
  • UNDERCARRIAGE
  • FRAME
  • OTHER

Optional Equipment

  • OPTIONAL EQUIPMENT
