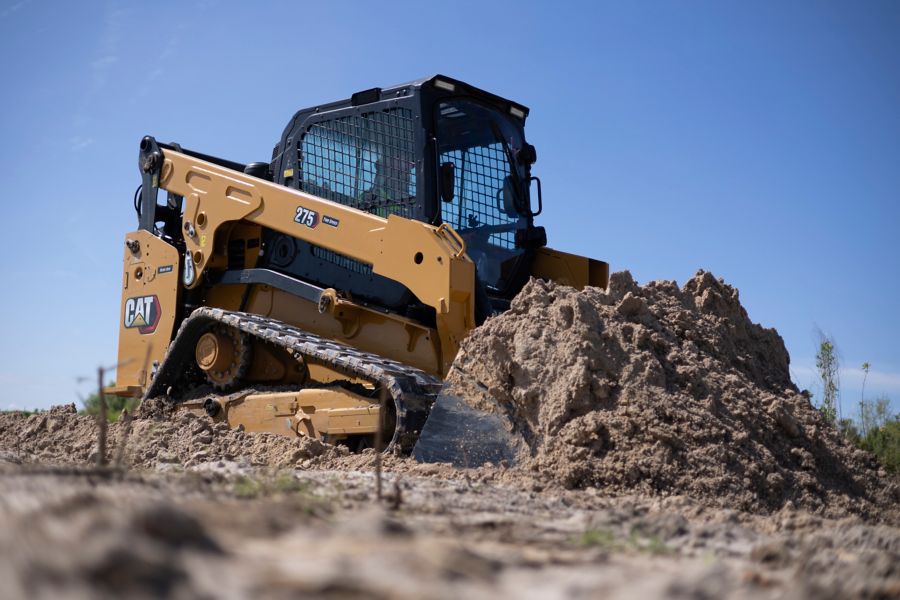

The Cat® 275 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard equalizer bar (E-bar) undercarriage system and two speed travel provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.
The Cat® 275 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard equalizer bar (E-bar) undercarriage system and two speed travel provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.

Brochures and Spec Sheets

Gallery

275 275 275 275 275

Specifications

Specification Value Unit
Gross Power - SAE J1995:2014 111 hp
Bore 3.9 in
Displacement 221 in²
Net Power - ISO 9249 109 hp
Net Power - SAE 1349 110 hp
Peak Torque at 1,360 rpm SAE J1995 370 lb/ft
Engine Model
Stroke 4.7 in
Hydraulic Flow - High Flow - Loader Hydraulic Flow 34 gpm
Hydraulic Flow - High Flow - Loader Hydraulic Pressure 3500 psi
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) 80.7 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow 34 gpm
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure 4061 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 46.4 hp
Hydraulic Flow - Standard - Loader Hydraulic Flow 23 gpm
Hydraulic Flow - Standard - Loader Hydraulic Pressure 3500 psi
Operating Weight 12401 lb
Counterweight Adds to Operating Weight 428 lb
Counterweight Adds to Operating Weight - ROC (35%) 105 lb
Counterweight Adds to Operating Weight - Tip Load 796 lb
Enclosed Cab Adds to Operating Weight 218 lb
Enclosed Cab Adds to Operating Weight - ROC (35%) 105 lb
Enclosed Cab Adds to Operating Weight - Tip Load 214 lb
Note
Cooling System 4.6 gal (US)
Engine Crankcase 2.4 gal (US)
Fuel Tank 36.9 gal (US)
Hydraulic System 10.8 gal (US)
Hydraulic Tank 6.9 gal (US)
Rated Operating Capacities - 35% Tipping Load 4156 lb
Breakout Force - Lift Cylinder 6422 lb
Breakout Force - Tilt Cylinder 9963 lb
Ground Contact Area - With 450 mm/17.7 in Track 2808 in²
Ground Pressure - With 400 mm/15.7 in Track 5 psi
Ground Pressure - With 450 mm/17.7 in Track 4.4 psi
Rated Operating Capacities - 50% Tipping Load 5937 lb
Rated Operating Capacity with Optional Counterweight 4435 lb
Tipping Load 11874 lb
Bucket Pin Height - Carry Position 8.1 in
Bucket Pin Height - Maximum Lift 134.4 in
Bucket Pin Reach - Maximum Lift 16.3 in
Clearance at Maximum Lift and Dump 106.1 in
Departure Angle
Ground Clearance 11 in
Height - Top of Cab 87.8 in
Length - Track on Ground 72.3 in
Length - With Bucket on Ground 152.8 in
Length - Without Bucket 128 in
Maximum Overall Height 165.1 in
Maximum Reach - With Arms Parallel to Ground 46.7 in
Overall Length - Track 83.7 in
Rack Back Angle - Maximum Height
Reach at Maximum Lift/Dump 32 in
Roll Back Angle
Turning Radius from Center - Bucket (racked) 91.3 in
Turning Radius from Center - Coupler 60.3 in
Turning Radius from Center - Machine Rear 76 in
Vehicle Width (450 mm/17.7 in tracks) 77.8 in
Maximum Dump Angle
FOPS
ROPS
Travel Speed - Forward or Reverse - One Speed 5.2 mile/h
Travel Speed - Forward or Reverse - Two Speed 7.8 mile/h
Diesel Exhaust Fluid (DEF) Tank 2.9 gal (US)
FOPS Level II

Standard Equipment

  • STANDARD EQUIPMENT
  • PERFORMANCE PACKAGES
  • COMFORT PACKAGES
  • TECHNOLOGY PACKAGES
  • RADIO
  • PRODUCT LINK™
  • COOLING FAN
  • GUARDING AND SEALING PACKAGES
  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • HYDRAULICS
  • POWER TRAIN
  • UNDERCARRIAGE
  • FRAME
  • OTHER

Optional Equipment

  • OPTIONAL EQUIPMENT
