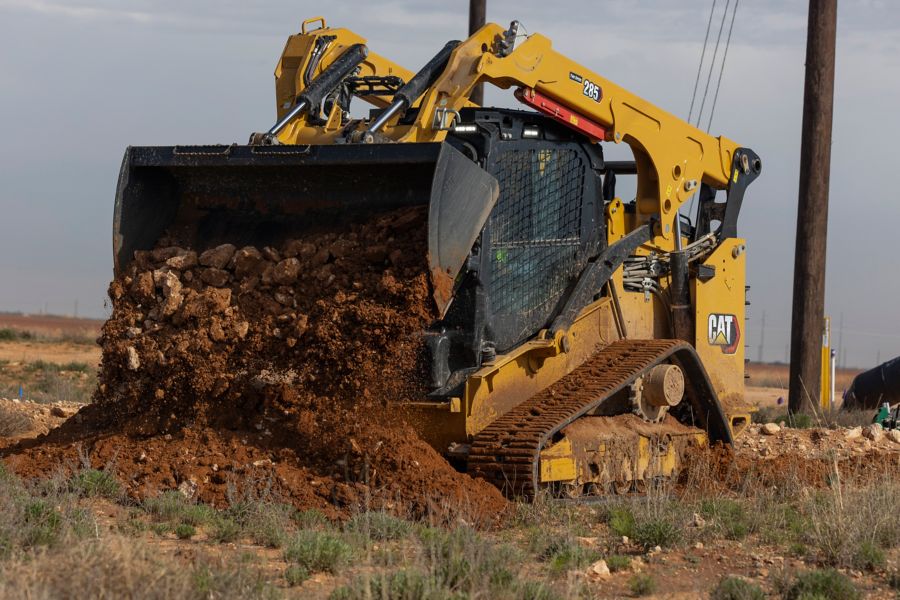

The Cat® 285 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard equalizer bar (E-bar) undercarriage system and two speed travel provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.
The Cat® 285 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard equalizer bar (E-bar) undercarriage system and two speed travel provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.

Brochures and Spec Sheets

Gallery

285 285 285 285 285

Specifications

Specification Value Unit
Gross Power - SAE J1995:2014 111 hp
Bore 4.7 in
Displacement 220 in²
Net Power - ISO 9249 109 hp
Net Power - SAE 1349 110 hp
Peak Torque - 1,500 rpm - SAE J1995 370 lb/ft
Engine Model
Stroke 4.7 in
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) 80.7 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow 34 gpm
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure 4061 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 46.4 hp
Hydraulic Flow - Standard - Loader Hydraulic Flow 23 gpm
Hydraulic Flow - Standard - Loader Hydraulic Pressure 3500 psi
Operating Weight 13497 lb
Counterweight Adds to Operating Weight 428 lb
Counterweight Adds to Operating Weight - ROC (35%) 296 lb
Counterweight Adds to Operating Weight - Tip Load 847 lb
Note
Cooling System 4.6 gal (US)
Engine Crankcase 2.4 gal (US)
Fuel Tank 36 gal (US)
Hydraulic System 10.8 gal (US)
Hydraulic Tank 6.9 gal (US)
Diesel Exhaust Fluid (DEF) Tank 2.9 gal (US)
Rated Operating Capacities - 35% Tipping Load 4461 lb
Breakout Force - Lift Cylinder 8730 lb
Breakout Force - Tilt Cylinder 13920 lb
Ground Contact Area - With 450 mm/17.7 in Track 2724 in²
Ground Pressure - With 450 mm/17.7 in Track 5 psi
Rated Operating Capacities - 50% Tipping Load 6372 lb
Tipping Load 12745 lb
Bucket Pin Height - Carry Position 8.2 in
Bucket Pin Height - Maximum Lift 146.6 in
Bucket Pin Reach - Maximum Lift 16.3 in
Clearance at Maximum Lift and Dump 119.6 in
Departure Angle
Ground Clearance 11 in
Height - Top of Cab 87.8 in
Length - Track on Ground 72 in
Length - With Bucket on Ground 157.4 in
Length - Without Bucket 132.3 in
Maximum Overall Height 178 in
Maximum Reach - With Arms Parallel to Ground 50.6 in
Overall Length - Track 85.8 in
Rack Back Angle - Maximum Height
Reach at Maximum Lift/Dump 34.7 in
Roll Back Angle
Turning Radius from Center - Bucket (racked) 94.5 in
Turning Radius from Center - Coupler 62.1 in
Turning Radius from Center - Machine Rear 74.3 in
Vehicle Width (450 mm/17.7 in tracks) 81.8 in
Maximum Dump Angle
ROPS
FOPS
FOPS Level II
Travel Speed - Forward or Reverse - One Speed 4.8 mile/h
Travel Speed - Forward or Reverse - Two Speed 7.5 mile/h

Standard Equipment

  • STANDARD EQUIPMENT
  • PERFORMANCE PACKAGES
  • COMFORT PACKAGES
  • TECHNOLOGY PACKAGES
  • RADIO
  • PRODUCT LINK™
  • COOLING FAN
  • GUARDING AND SEALING PACKAGES
  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • HYDRAULICS
  • POWER TRAIN
  • UNDERCARRIAGE
  • FRAME
  • OTHER

Optional Equipment

  • OPTIONAL EQUIPMENT
