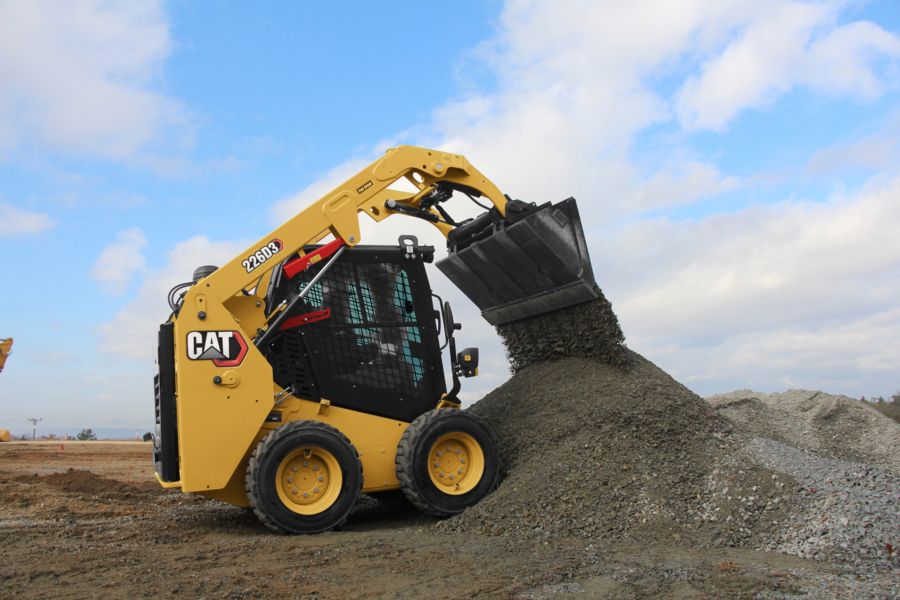

226D3
The Cat® 226D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.
The Cat® 226D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.
Brochures and Spec Sheets
- 226D3 Product Brochure
- Advanced Display User Guide for Skid Steer, Compact Track, and Multi Terrain Loaders - D/D2/D3 Series
- 226D3/232D3/236D3/242D3/246D3/262D3/272D3/272D3 XE Product Brochure
- Retrofit Options and Accessories Guide for Compact Track, Skid Steer and Multi Terrain Loaders
- Cat® Attachment for D3 Series Skid Steer Loaders and Compact Track Loaders
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Gross Power - SAE J1995:2014 | 67.1 | hp |
| Rated Operating Capacity | 1550 | lb |
| Operating Weight | 5849 | lb |
| Wheel Base | 41.5 | in |
| Length - With Bucket on Ground | 127.3 | in |
| Length - Without Bucket | 99.4 | in |
| Height - Top of Cab | 79.8 | in |
| Vehicle Width over Tires | 58.9 | in |
| Maximum Overall Height | 143.8 | in |
| Bucket Pin Height - Maximum Lift | 110.9 | in |
| Bucket Pin Height - Carry Position | 8.5 | in |
| Reach - Maximum Lift/Dump | 21 | in |
| Clearance at Maximum Lift and Dump | 81.8 | in |
| Ground Clearance | 6.9 | in |
| Departure Angle | ||
| Maximum Dump Angle | ||
| Rack Back Angle - Maximum Height | ||
| Bumper Overhang - Behind Rear Axle | 35.2 | in |
| Turning Radius from Center - Bucket | 77.8 | in |
| Maximum Reach - With Arms Parallel to Ground | 50.7 | in |
| Turning Radius from Center - Machine Rear | 59.6 | in |
| Turning Radius from Center - Coupler | 43.5 | in |
| Note | ||
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 3336 | psi |
| Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure | 3336 | psi |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 33.5 | hp |
| Hydraulic Flow - High Flow - Hydraulic Power (Calculated) | 50.9 | hp |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 18 | gpm |
| Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow | 26 | gpm |
| ROPS | ||
| FOPS | ||
| Travel Speed - Forward or Reverse - One Speed | 7.6 | mile/h |
| Travel Speed - Forward or Reverse - Two Speed Option | 11.1 | mile/h |
| Chain Box - Each Side | 1.8 | gal (US) |
| Cooling System | 3.2 | gal (US) |
| Engine Crankcase | 2.6 | gal (US) |
| Fuel Tank | 15.1 | gal (US) |
| Hydraulic System | 11.9 | gal (US) |
| Hydraulic Tank | 9 | gal (US) |
| Air Conditioning | ||
| Net Power - SAE 1349 | 65.8 | hp |
| Displacement | 134.3 | in³ |
| Stroke | 3.9 | in |
| Bore | 3.3 | in |
| Engine Model | ||
| Note | ||
| Peak Torque - 1,500 rpm - SAE J1995 | 153 | ft·lbf |
| Net Power - ISO 9249 | 66.5 | hp |
| Rated Operating Capacity with Optional Counterweight | 1650 | lb |
| Tipping Load | 3100 | lb |
| Breakout Force - Tilt Cylinder | 3927 | lb |
| Note | ||
| Outside Cab*** | 102 | dB(A) |
| Inside Cab** | 83 | dB(A) |
| Note (3) | ||
| Note (1) | ||
| Note (2) |
Standard Equipment
- ELECTRICAL
- OPERATOR ENVIRONMENT
- POWER TRAIN
- OTHER
- MANDATORY EQUIPMENT
Optional Equipment
- OPTIONAL EQUIPMENT
