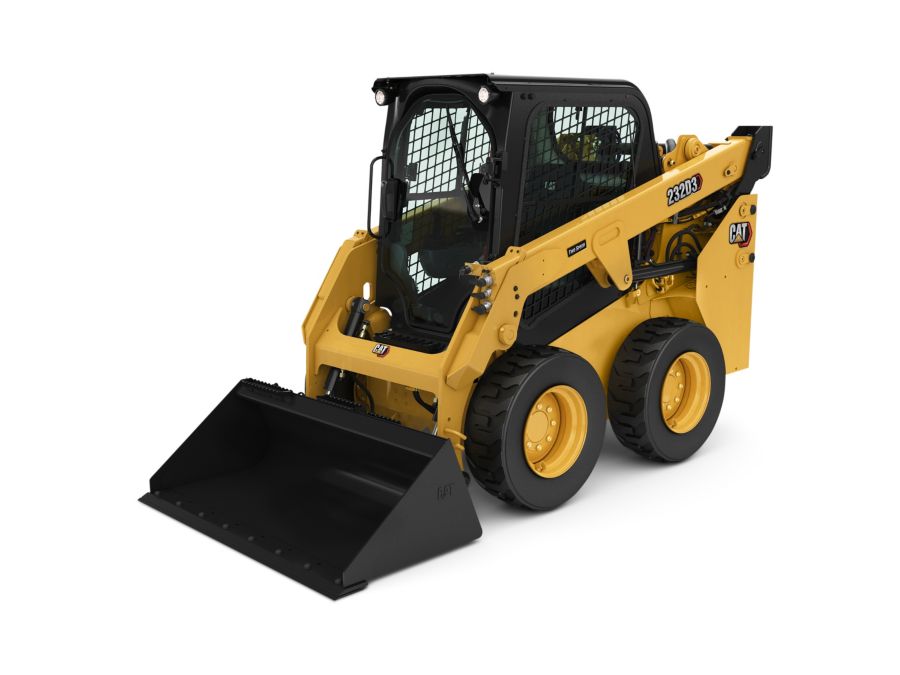

232D3
The Cat® 232D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.
The Cat® 232D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.
Brochures and Spec Sheets
- 232D3 Product Brochure
- Advanced Display User Guide for Skid Steer, Compact Track, and Multi Terrain Loaders - D/D2/D3 Series
- 226D3/232D3/236D3/242D3/246D3/262D3/272D3/272D3 XE Product Brochure
- Retrofit Options and Accessories Guide for Compact Track, Skid Steer and Multi Terrain Loaders
- Cat® Attachment for D3 Series Skid Steer Loaders and Compact Track Loaders
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Gross Power - SAE J1995:2014 | 67.1 | hp |
| Rated Operating Capacity | 1900 | lb |
| Operating Weight | 6514 | lb |
| Wheel Base | 41.5 | in |
| Height - Top of Cab | 79.9 | in |
| Vehicle Width over Tires | 58.9 | in |
| Ground Clearance | 6.7 | in |
| Departure Angle | ||
| Maximum Dump Angle | ||
| Length - Without Bucket | 99.3 | in |
| Clearance at Maximum Lift and Dump | 88.7 | in |
| Bucket Pin Reach - Maximum Lift | 8.8 | in |
| Maximum Overall Height | 150.9 | in |
| Turning Radius from Center - Machine Rear | 59.6 | in |
| Note | ||
| Bucket Pin Height - Carry Position | 8.4 | in |
| Length - With Bucket on Ground | 127.3 | in |
| Bumper Overhang - Behind Rear Axle | 35.2 | in |
| Turning Radius from Center - Bucket | 77.8 | in |
| Maximum Reach - With Arms Parallel to Ground | 49.2 | in |
| Bucket Pin Height - Maximum Lift | 118.1 | in |
| Reach - Maximum Lift/Dump | 25.7 | in |
| Rack Back Angle - Maximum Height | ||
| Turning Radius from Center - Coupler | 43.4 | in |
| Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow | 26 | gpm |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 35.5 | hp |
| Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure | 3336 | psi |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 18 | gpm |
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 3336 | psi |
| Hydraulic Flow - High Flow - Hydraulic Power (Calculated) | 50.9 | hp |
| ROPS | ||
| FOPS | ||
| Travel Speed - Forward or Reverse - One Speed | 7.6 | mile/h |
| Travel Speed - Forward or Reverse - Two Speed Option | 11.1 | mile/h |
| Cooling System | 3.2 | gal (US) |
| Engine Crankcase | 2.6 | gal (US) |
| Fuel Tank | 15.1 | gal (US) |
| Hydraulic System | 11.9 | gal (US) |
| Hydraulic Tank | 9 | gal (US) |
| Chain Box - Each Side | 1.8 | gal (US) |
| Net Power - SAE 1349 | 65.8 | hp |
| Displacement | 134.3 | in³ |
| Stroke | 3.9 | in |
| Bore | 3.3 | in |
| Peak Torque - 1,500 rpm - SAE J1995 | 153 | ft·lbf |
| Net Flywheel Power | 65.8 | hp |
| Net Power - ISO 9249 | 66.5 | hp |
| Engine Model | ||
| Note | ||
| Tipping Load | 3800 | lb |
| Breakout Force - Tilt Cylinder | 3928 | lb |
| Note | ||
| Rated Operating Capacity with Optional Counterweight | 2000 | lb |
| Note (3) | ||
| Inside Cab* | ||
| Outside Cab** | ||
| Note (1) | ||
| Note (2) | ||
| Air Conditioning |
Standard Equipment
- ELECTRICAL
- OPERATOR ENVIRONMENT
- POWER TRAIN
- OTHER
- MANDATORY EQUIPMENT
Optional Equipment
- OPTIONAL EQUIPMENT
