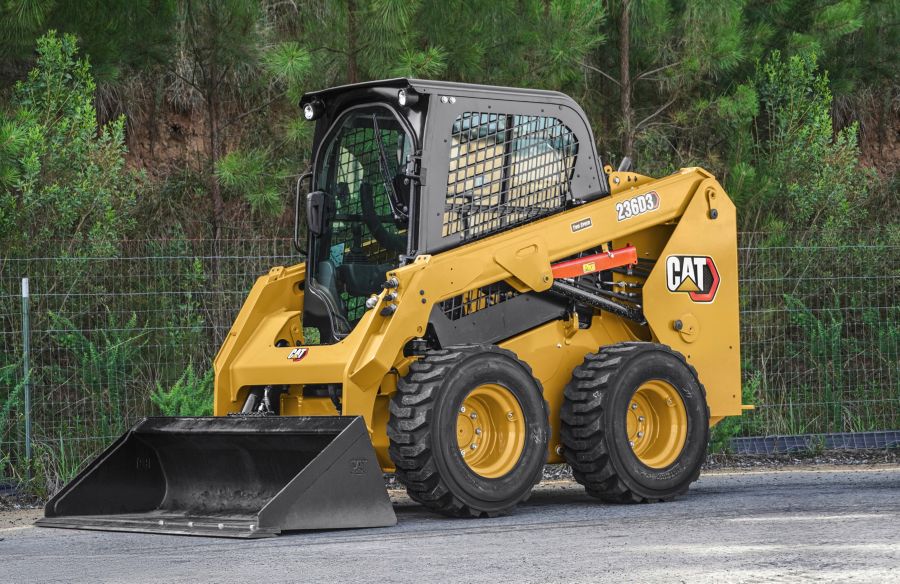

The Cat® 236D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.
The Cat® 236D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.

Brochures and Spec Sheets

Gallery

236D3

Specifications

Specification Value Unit
Rated Operating Capacity 1800 lb
Rated Operating Capacity with Optional Counterweight 2000 lb
Tipping Load 3600 lb
Breakout Force - Tilt Cylinder 5003 lb
Note
Operating Weight 6567 lb
Note
Wheel Base 43.5 in
Height - Top of Cab 82 in
Vehicle Width over Tires 66 in
Ground Clearance 7.7 in
Departure Angle
Maximum Dump Angle
Maximum Reach - With Arms Parallel to Ground 53.3 in
Turning Radius from Center - Machine Rear 64.5 in
Bucket Pin Height - Maximum Lift 122.9 in
Length - Without Bucket 108.9 in
Rack Back Angle - Maximum Height
Turning Radius from Center - Bucket 83 in
Turning Radius from Center - Coupler 51.8 in
Clearance at Maximum Lift and Dump 92.9 in
Reach - Maximum Lift/Dump 16 in
Note
Bumper Overhang - Behind Rear Axle 40.2 in
Maximum Overall Height 156.6 in
Length - With Bucket on Ground 137.3 in
Bucket Pin Height - Carry Position 7.5 in
Hydraulic Flow - Standard - Loader Hydraulic Flow 20 gpm
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure 3335 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 39 hp
Hydraulic Flow - Standard - Loader Hydraulic Pressure 3335 psi
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow 30 gpm
Hydraulic Flow - High Flow - Hydraulic Power (Calculated) 58 hp
ROPS
FOPS
Travel Speed - Forward or Reverse - Two Speed Option 10.6 mile/h
Travel Speed - Forward or Reverse - One Speed 7 mile/h
Chain Box - Each Side 2.3 gal (US)
Cooling System 3.7 gal (US)
Engine Crankcase 3 gal (US)
Fuel Tank 24.8 gal (US)
Hydraulic System 13.2 gal (US)
Hydraulic Tank 10.3 gal (US)
Gross Power - SAE J1995:2014 67.2 hp
Net Power - SAE 1349 65.8 hp
Displacement 134 in³
Stroke 3.9 in
Bore 3.3 in
Net Flywheel Power 65.8 hp
Engine Model
Peak Torque - 1,500 rpm - SAE J1995 186 ft·lbf
Net Power - ISO 9249 66.5 hp
Air Conditioning
Outside Cab**
Note (2)
Note (3)
Inside Cab*
Note (1)

Standard Equipment

  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • POWER TRAIN
  • OTHER
  • MANDATORY EQUIPMENT

Optional Equipment

  • OPTIONAL EQUIPMENT
