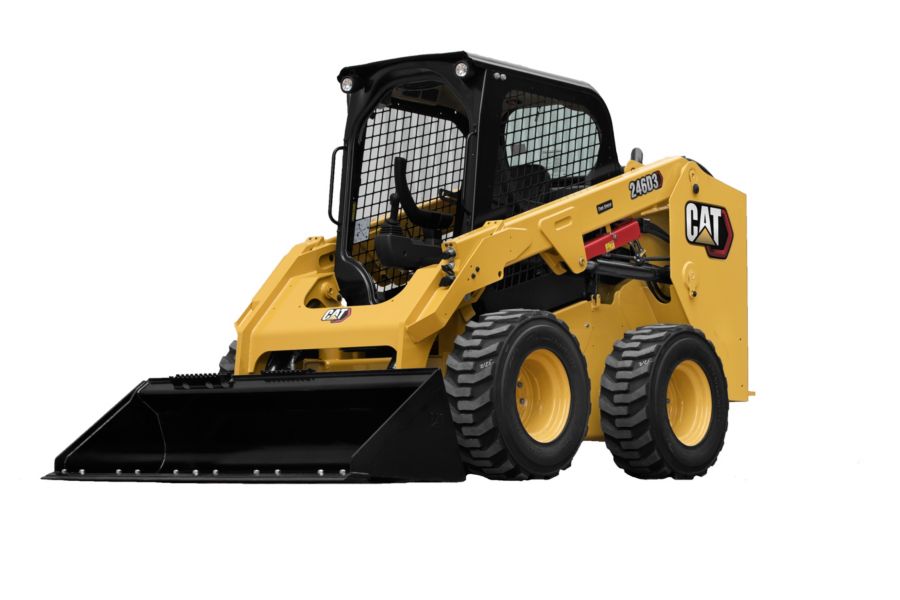

The Cat® 246D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.
The Cat® 246D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.

Brochures and Spec Sheets

Gallery

246D3

Specifications

Specification Value Unit
Gross Power - SAE J1995:2014 74.3 hp
Rated Operating Capacity 2200 lb
Operating Weight 7478 lb
Wheel Base 49.2 in
Height - Top of Cab 83.1 in
Vehicle Width over Tires 66 in
Ground Clearance 8.9 in
Departure Angle
Maximum Dump Angle
Bumper Overhang - Behind Rear Axle 42.6 in
Rack Back Angle - Maximum Height
Length - Without Bucket 117.8 in
Maximum Overall Height 158.7 in
Maximum Reach - With Arms Parallel to Ground 54.6 in
Length - With Bucket on Ground 146 in
Turning Radius from Center - Coupler 55.2 in
Bucket Pin Height - Carry Position 7.9 in
Bucket Pin Height - Maximum Lift 124.2 in
Clearance at Maximum Lift and Dump 97.1 in
Turning Radius from Center - Bucket 85.9 in
Turning Radius from Center - Machine Rear 71.2 in
Reach - Maximum Lift/Dump 23.6 in
Note
Hydraulic Flow - Standard - Loader Hydraulic Pressure 3335 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 44 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure 4061 psi
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) 76 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow 32 gpm
Hydraulic Flow - Standard - Loader Hydraulic Flow 23 gpm
ROPS
FOPS
Travel Speed - Forward or Reverse - One Speed 7.7 mile/h
Travel Speed - Forward or Reverse - Two Speed Option 11 mile/h
Chain Box - Each Side 3.3 gal (US)
Cooling System 3.7 gal (US)
Engine Crankcase 3 gal (US)
Fuel Tank 27.7 gal (US)
Hydraulic System 13.7 gal (US)
Hydraulic Tank 10.3 gal (US)
Net Power - SAE 1349 72.9 hp
Displacement 203 in³
Stroke 4.7 in
Bore 3.7 in
Peak Torque - 1,500 rpm - SAE J1995 195 ft·lbf
Engine Model
Net Power - ISO 9249 73.7 hp
Net Flywheel Power 72.9 hp
Note
Tipping Load 4400 lb
Breakout Force - Tilt Cylinder 7355 lb
Rated Operating Capacity with Optional Counterweight 2410 lb
Note
Inside Cab*
Note (3)
Outside Cab**
Note (1)
Note (2)
Air Conditioning

Standard Equipment

  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • POWER TRAIN
  • OTHER
  • MANDATORY EQUIPMENT

Optional Equipment

  • OPTIONAL EQUIPMENT
