262D3

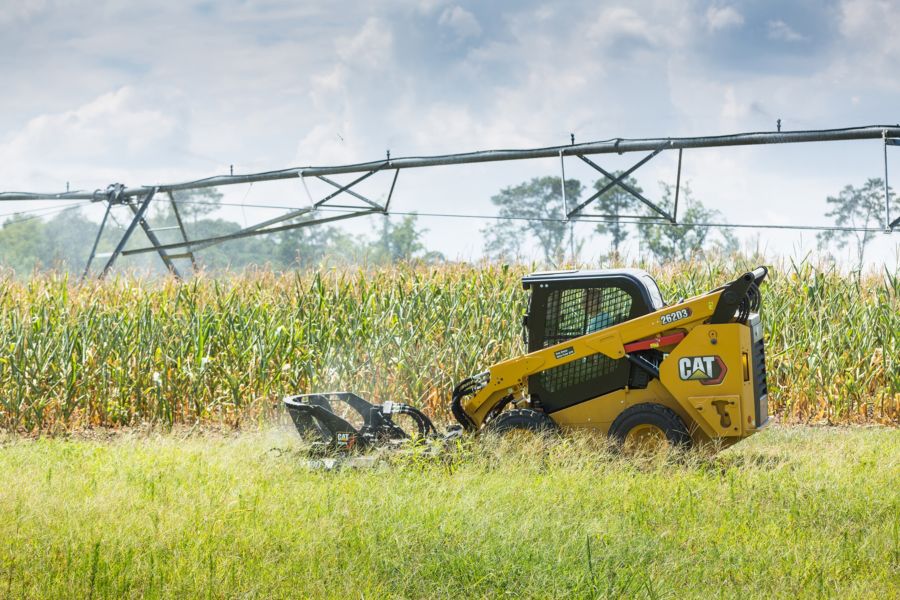

The Cat® 262D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.
The Cat® 262D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.
Brochures and Spec Sheets
- 262D3 Product Brochure
- Advanced Display User Guide for Skid Steer, Compact Track, and Multi Terrain Loaders - D/D2/D3 Series
- 226D3/232D3/236D3/242D3/246D3/262D3/272D3/272D3 XE Product Brochure
- Retrofit Options and Accessories Guide for Compact Track, Skid Steer and Multi Terrain Loaders
- Cat Attachments for D3 Series Skid Steer Loaders and Compact Track Loaders Brochure
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Gross Power - SAE J1995:2014 | 74.3 | hp |
| Rated Operating Capacity | 2700 | lb |
| Operating Weight | 8296 | lb |
| Wheel Base | 49.2 | in |
| Length - With Bucket on Ground | 146.2 | in |
| Length - Without Bucket | 117.9 | in |
| Height - Top of Cab | 83.1 | in |
| Vehicle Width over Tires | 66 | in |
| Maximum Overall Height | 157.8 | in |
| Bucket Pin Height - Maximum Lift | 124.9 | in |
| Bucket Pin Height - Carry Position | 7.9 | in |
| Reach - Maximum Lift/Dump | 30.9 | in |
| Clearance at Maximum Lift and Dump | 93.7 | in |
| Ground Clearance | 8.9 | in |
| Departure Angle | ||
| Bumper Overhang - Rear Axle | 42.6 | in |
| Maximum Dump Angle | ||
| Rack Back Angle - Maximum Height | ||
| Bucket Pin Reach - Maximum Lift | 15.5 | in |
| Turning Radius from Center - Bucket | 85.9 | in |
| Turning Radius from Center - Coupler | 55.2 | in |
| Note | ||
| Maximum Reach - With Arms Parallel to Ground | 50.9 | in |
| Turning Radius from Center - Machine Rear | 71.1 | in |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure | 4061 | psi |
| Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) | 76 | hp |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 44 | hp |
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 3335 | psi |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 23 | gpm |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow | 32 | gpm |
| ROPS | ||
| FOPS | ||
| Travel Speed - Forward or Reverse - Two Speed Option | 11 | mile/h |
| Travel Speed - Forward or Reverse - One Speed | 7.7 | mile/h |
| Chain Box - Each Side | 3.3 | gal (US) |
| Cooling System | 3.7 | gal (US) |
| Engine Crankcase | 3 | gal (US) |
| Fuel Tank | 27.7 | gal (US) |
| Hydraulic System | 13.7 | gal (US) |
| Hydraulic Tank | 10.3 | gal (US) |
| Net Power - SAE 1349 | 72.9 | hp |
| Displacement | 203 | in³ |
| Stroke | 4.7 | in |
| Bore | 3.7 | in |
| Peak Torque - 1,500 rpm - SAE J1995 | 195 | ft·lbf |
| Net Power - ISO 9249 | 73.7 | hp |
| Engine Model | ||
| Net Flywheel Power | 72.9 | hp |
| Rated Operating Capacity with Optional Counterweight | 3055 | lb |
| Tipping Load | 5400 | lb |
| Breakout Force - Tilt Cylinder | 7355 | lb |
| Note | ||
| Note (1) | ||
| Inside Cab* | 81 | dB(A) |
| Note (2) | ||
| Outside Cab** | 101 | dB(A) |
| Note | ||
| Note (3) | ||
| Air Conditioning |
Standard Equipment
- ELECTRICAL
- OPERATOR ENVIRONMENT
- POWER TRAIN
- OTHER
- MANDATORY EQUIPMENT
Optional Equipment
- OPTIONAL EQUIPMENT
