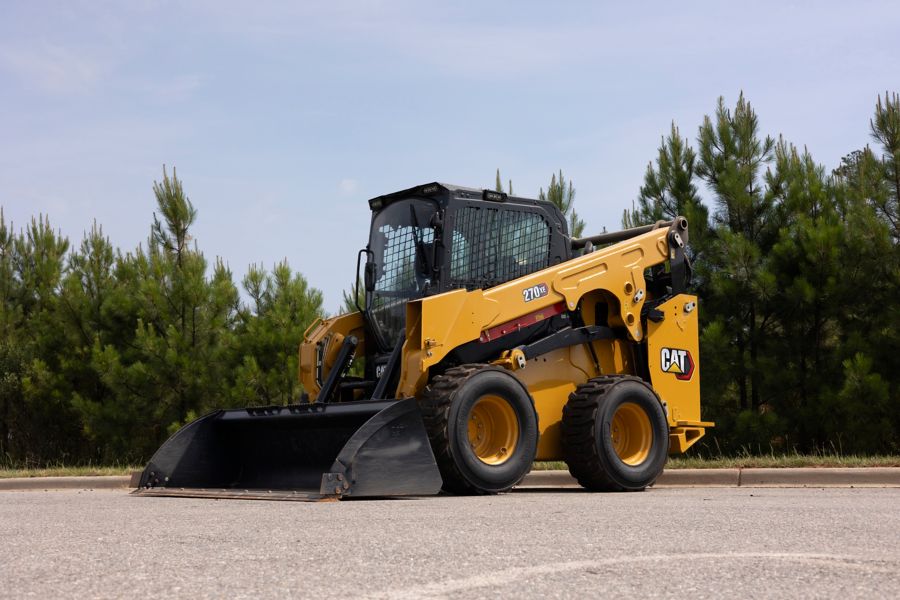

The Cat® 270 XE Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.
The Cat® 270 XE Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

Brochures and Spec Sheets

Gallery

270 XE 270 XE 270 XE

Specifications

Specification Value Unit
Gross Power - SAE J1995:2014 121 hp
Net Power - SAE 1349 121 hp
Net Power - ISO 9249 120 hp
Displacement 221 in³
Stroke 4.7 in
Bore 3.9 in
Engine Model
Peak Torque - 1,600 rpm - SAE J1995 406 lb/ft
Engine Power - ISO 14396 134 hp
Note
Rated Operating Capacity 4015 lb
Note
Tipping Load 8029 lb
Breakout Force - Tilt Cylinder 8267 lb
Rated Operating Capacity with Optional Counterweight 4443 lb
Breakout Force - Lift Cylinder 6349 lb
Operating Weight 10847 lb
Note
Note
Wheel Base 54.6 in
Height - Top of Cab 87.5 in
Vehicle Width over Tires 72 in
Ground Clearance 9.4 in
Departure Angle
Maximum Dump Angle
Roll Back Angle
Reach - Maximum Lift/Dump 29.5 in
Turning Radius from Center - Coupler 57.9 in
Turning Radius from Center - Machine Rear 74.7 in
Bucket Pin Height - Maximum Lift 135.4 in
Turning Radius from Center - Bucket 89.1 in
Length - Without Bucket 128.7 in
Maximum Reach - With Arms Parallel to Ground 46.5 in
Clearance at Maximum Lift and Dump 106.9 in
Length - With Bucket on Ground 153.9 in
Maximum Overall Height 165.9 in
Bucket Pin Reach - Maximum Lift 11.1 in
Rack Back Angle - Maximum Height
Bucket Pin Height - Carry Position 9.3 in
Hydraulic Flow - Standard - Loader Hydraulic Pressure 3500 psi
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure 4496 psi
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow 34 gpm
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 46.4 hp
Hydraulic Flow - XE - Hydraulic Power (calculated) 103.9 hp
Hydraulic Flow - Standard - Loader Hydraulic Flow 23 gpm
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) 80.7 hp
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow* 40 gpm
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure 4061 psi
ROPS
FOPS
FOPS Level II
Travel Speed - Forward or Reverse - Two Speed Option 10.6 mile/h
Travel Speed - Forward or Reverse - One Speed 7.3 mile/h
Cooling System 4.6 gal (US)
Engine Crankcase 2.4 gal (US)
Fuel Tank 34.5 gal (US)
Hydraulic System 10.8 gal (US)
Hydraulic Tank 6.9 gal (US)
Chain Box - Each Side 2.6 gal (US)
Diesel Exhaust Fluid (DEF) Tank 2.9 gal (US)
Outside Cab**
Note (1)
Note (3)
Inside Cab*
Note (2)
Recyclability

Standard Equipment

  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • HYDRAULICS
  • POWER TRAIN
  • OTHER
  • MANDATORY EQUIPMENT
  • PERFORMANCE PACKAGES
  • COMFORT PACKAGES
  • TECHNOLOGY PACKAGES
  • RADIO
  • PRODUCT LINK™
  • COOLING FAN
  • GUARDING AND SEALING PACKAGES

Optional Equipment

  • OPTIONAL EQUIPMENT
