AD30

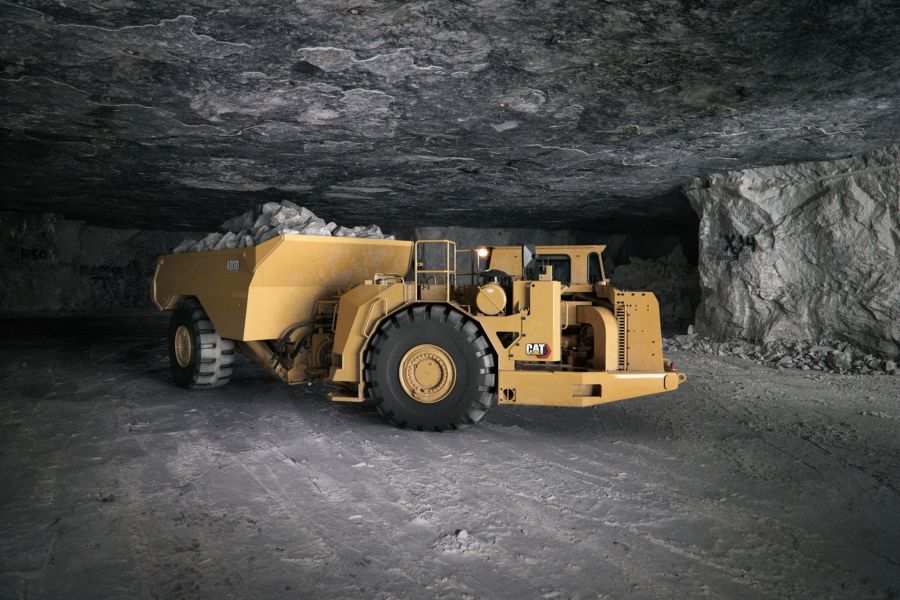

The Cat® AD30 Underground Truck is a medium to smaller mine hauler that is a perfect match to the Cat R1600H underground loader. Engineered for performance, it’s powered by the Cat C15 engine and delivers fast cycle times and maximum efficiency. With two body styles plus multiple body sizes, you can choose the right body to maximize efficiency in your application. The cab is ergonomically designed to keep operators safe, comfortable and in control. Rugged construction and easy maintenance guarantee long life with low operating costs.
Please note that model availability may vary by region. Contact your local Cat dealer for details on models available in your area.
Please note that model availability may vary by region. Contact your local Cat dealer for details on models available in your area.
The Cat® AD30 Underground Truck is a medium to smaller mine hauler that is a perfect match to the Cat R1600H underground loader. Engineered for performance, it’s powered by the Cat C15 engine and delivers fast cycle times and maximum efficiency. With two body styles plus multiple body sizes, you can choose the right body to maximize efficiency in your application. The cab is ergonomically designed to keep operators safe, comfortable and in control. Rugged construction and easy maintenance guarantee long life with low operating costs.
Please note that model availability may vary by region. Contact your local Cat dealer for details on models available in your area.
Please note that model availability may vary by region. Contact your local Cat dealer for details on models available in your area.
Brochures and Spec Sheets
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Engine Model | ||
| Engine Power - Tier 3 Engine - ISO 14396:2002 | 401 | hp |
| Engine Power - VR Engine - ISO 14396:2002 | 401 | hp |
| Bore | 5.4 | in |
| Stroke | 6.8 | in |
| Displacement | 928 | in³ |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Note (4) | ||
| Note (5) | ||
| Nominal Payload Capacity | 66139 | lb |
| Gross Machine Mass | 132300 | lb |
| Empty | 63647 | lb |
| Empty - Front Axle | 42944 | lb |
| Empty - Rear Axle | 20704 | lb |
| Loaded | 132277 | lb |
| Loaded - Front Axle | 58451 | lb |
| Loaded - Rear Axle | 73826 | lb |
| Empty - Front Axle | ||
| Empty - Rear Axle | ||
| Loaded - Front Axle | ||
| Loaded - Rear Axle | ||
| Forward - 1 | 3.9 | mile/h |
| Forward - 2 | 7 | mile/h |
| Forward - 3 | 12.9 | mile/h |
| Forward - 4 | 22.8 | mile/h |
| Reverse - 1 | 4.4 | mile/h |
| Note | ||
| Differential Ratio | ||
| Final Drive Ratio | ||
| Total Reduction Ratio | ||
| Note | ||
| Raise | 10.5 | s |
| Lower | 11.2 | s |
| Total Cycle Time | 21.7 | s |
| Body 1 | 14.8 | yd³ |
| Body 2 - Standard Body | 18.8 | yd³ |
| Body 3 | 22.9 | yd³ |
| Wide Body | 21.9 | yd³ |
| Ejector Body (1) | 19.9 | yd³ |
| Ejector Body (2) | 21.9 | yd³ |
| Note | ||
| Outside Clearance Radius | 337.4 | in |
| Inner Clearance Radius | 198 | in |
| Articulation Angle | 42.5 | ° |
| Frame Oscillation | ||
| Engine Crankcase - With Filter | 9 | gal (US) |
| Transmission | 18 | gal (US) |
| Hydraulic Tank | 38 | gal (US) |
| Cooling System | 20 | gal (US) |
| Front Differential and Final Drives | 15 | gal (US) |
| Rear Differential and Final Drives | 15 | gal (US) |
| Fuel Tank | 108 | gal (US) |
| Tire Size | ||
| Standards | ||
| Body Capacities |
