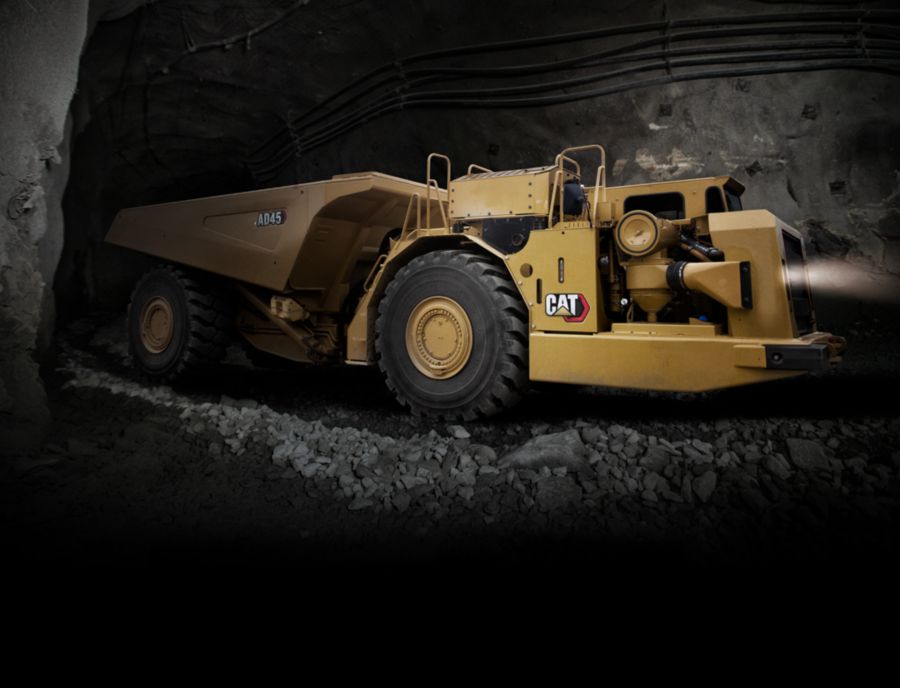

The Cat® AD45 Underground Truck delivers all the power, performance and reliability you expect from the AD45B — but the latest model also offers an an advanced EU Stage V compliant engine and aftertreatment solution that meets the strictest emissions standards, lowers your carbon footprint and improves air quality in your mine. In addition, a retrofit solution is available that allows you to retrofit the previous model, the AD45B, to meet the same strict standards. This ultra-clean diesel machine delivers superior productivity thanks to its ideal match with the next generation Cat R1700 underground loader and is technology-enhanced with features that improve productivity, boost uptime and keep operators and personnel safer on the job.


Please note that model availability may vary by region. Contact your local Cat dealer for details on models available in your area.
The Cat® AD45 Underground Truck delivers all the power, performance and reliability you expect from the AD45 — but the latest model also offers an an advanced EU Stage V compliant engine and aftertreatment solution that meets the strictest emissions standards, lowers your carbon footprint and improves air quality in your mine. In addition, a retrofit solution is available that allows you to retrofit the previous model, the AD45B, to meet the same strict standards. This ultra-clean diesel machine delivers superior productivity thanks to its ideal match with the next generation Cat R1700 underground loader and is technology-enhanced with features that improve productivity, boost uptime and keep operators and personnel safer on the job.


Please note that model availability may vary by region. Contact your local Cat dealer for details on models available in your area.

Brochures and Spec Sheets

Gallery

AD45 AD45 AD45 AD45 AD45 AD45 AD45

Specifications

Specification Value Unit
Engine Model
Engine Power - EU Stage V Engine - ISO 14396:2002 598 hp
Engine Power - Tier 3 Engine - ISO 14396:2002 581 hp
Engine Power - VR Engine - ISO 14396:2002 581 hp
Bore 5.7 in
Stroke 7.2 in
Displacement 1104.53 in³
Note (1)
Note (2)
Note (3)
Note (4)
Note (5)
Note (6)
Note (7)
Nominal Payload Capacity 99208 lb
Gross Machine Mass 196765 lb
Shipping Mass (Stage V Engine Model) 96225 lb
Shipping Mass (Other Engine Models) 94415 lb
Body Capacities
Operating Mass 91285 lb
Operating Mass - Front Axle 64565 lb
Operating Mass - Rear Axle 26720 lb
Operating Mass + Rated Payload 190495 lb
Operating Mass + Rated Payload - Front Axle 89235 lb
Operating Mass + Rated Payload - Rear Axle 101260 lb
Operating Mass 88320 lb
Operating Mass - Front Axle 61225 lb
Operating Mass - Rear Axle 27095 lb
Operating Mass + Rated Payload 187530 lb
Operating Mass + Rated Payload - Front Axle 85355 lb
Operating Mass + Rated Payload - Rear Axle 102175 lb
Empty - Front Axle
Empty - Rear Axle
Loaded - Front Axle
Loaded - Rear Axle
Empty - Front Axle
Empty - Rear Axle
Loaded - Front Axle
Loaded - Rear Axle
Forward - 1 4.4 mile/h
Forward - 2 5.9 mile/h
Forward - 3 8 mile/h
Forward - 4 10.8 mile/h
Forward - 5 14.6 mile/h
Forward - 6 19.7 mile/h
Forward - 7 26.4 mile/h
Reverse - 1 4.2 mile/h
Reverse - 2 5.6 mile/h
Note
Differential Ratio
Final Drive Ratio
Total Reduction Ratio
Raise
Lower
Total Cycle Time
Raise
Lower
Total Cycle Time
Dump Body - 1 23.6 yd³
Dump Body - 2 - Standard 27.9 yd³
Dump Body - 3 32.8 yd³
Ejector Body 29.9 yd³
Note
Outside Clearance Radius* 371 in
Inside Clearance Radius* 209 in
Frame Oscillation
Articulation Angle
Note
Engine Crankcase - With Filter 16.9 gal (US)
Transmission 15.9 gal (US)
Hydraulic Tank 70.3 gal (US)
Cooling System 22.5 gal (US)
Front Differential and Final Drives 20.3 gal (US)
Rear Differential and Final Drives 21.9 gal (US)
Fuel Tank 201.8 gal (US)
Tire Size
Standards

Standard Equipment

  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • POWER TRAIN
  • OTHER STANDARD EQUIPMENT

Optional Equipment

  • OPTIONAL EQUIPMENT
