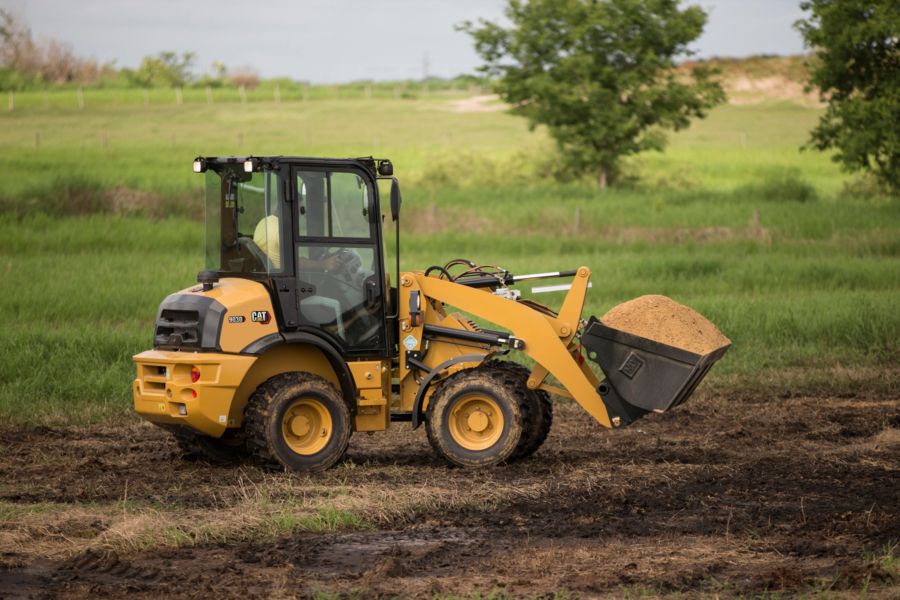

903D
The Cat® 903D is compact, yet powerful, delivering high performance with outstanding versatility. A 25% increase in lift capacity and travel speed will allow the operator to be more productive, while new optional features such as engine and ground speed control, provides customizable control when running hydro-mechanical work tools. With a more ergonomic cab, new multi-function joystick, and optional ride control, the 903D allows the operator to enjoy all day comfort.
The Cat® 903D is compact, yet powerful, delivering high performance with outstanding versatility. A 25% increase in lift capacity and travel speed will allow the operator to be more productive, while new optional features such as engine and ground speed control, provides customizable control when running hydro-mechanical work tools. With a more ergonomic cab, new multi-function joystick, and optional ride control, the 903D allows the operator to enjoy all day comfort.
Brochures and Spec Sheets
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Maximum Gross Power | 42 | hp |
| Engine Model | ||
| Gross Power | 42 | hp |
| Net Power - 2,200 rpm - SAE J1349 R-ing | 40 | hp |
| Net Power - 2,200 rpm - ISO 9249 R-ing | 40 | hp |
| Bore | 3.4 | in |
| Stroke | 4 | in |
| Displacement | 147 | in² |
| Note | ||
| Operating Weight | 9414 | lb |
| Bucket Capacities | ||
| Bucket Capacities - General Purpose | ||
| Bucket Capacities - Light Material | ||
| Travel Speed | 12.4 | mile/h |
| Main Relief | 3481 | psi |
| 3rd Auxiliary Flow | 14 | gpm |
| Hydraulic Cycle Time - Lift | 4.4 | s |
| Hydraulic Cycle Time - Dump | 0.7 | s |
| Hydraulic Cycle Time - Lower, Float | 2.4 | s |
| ROPS | ||
| FOPS | ||
| Cooling System | 3 | gal (US) |
| Fuel Tank | 11.4 | gal (US) |
| Hydraulic System | 6.3 | gal (US) |
| Engine Oil | 2.4 | gal (US) |
| Cab Height | 8.25 | ft |
| Ground Clearance | 10 | in |
| Wheel Base | 6.42 | ft |
| Overall Length - With Bucket* | 15.75 | ft |
| Reach at Maximum Dump Height* | 2.33 | ft |
| Dig Depth | 6 | in |
| Maximum Dump Height* | 7.5 | ft |
| Load Over Height | 9.17 | ft |
| Hinge Pin at Maximum Height | 10.08 | ft |
| Departure Angle - Degrees | ||
| Overall Length - With Forks | 17.08 | ft |
| Reach - Ground Level | 2.67 | ft |
| Maximum Reach | 4.5 | ft |
| Fork Depth Above Ground | 2 | in |
| Fork Height at Maximum Reach | 4.67 | ft |
| Maximum Fork Height | 9.83 | ft |
| Fork Reach at Maximum Height | 2 | ft |
| Turning Radius - Over Bucket* | 13.17 | ft |
| Turning Radius - Inside Tire** | 5.92 | ft |
| Width - Over Bucket* | 5.83 | ft |
| Tire Gauge | 4.33 | ft |
| Machine Width** | 5.58 | ft |
| Articulation Angle | ||
| Steering Angle | ||
| Dump Angle at Maximum Height | ||
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Cab Height | 8.25 | ft |
| Ground Clearance | 10 | in |
| Wheel Base | 6.42 | ft |
| Overall Length - With Bucket* | 16.17 | ft |
| Reach at Maximum Dump Height* | 2.42 | ft |
| Dig Depth | 8 | in |
| Maximum Dump Height* | 8 | ft |
| Load Over Height | 9.67 | ft |
| Hinge Pin at Maximum Height | 10.58 | ft |
| Departure Angle - Degrees | ||
| Overall Length - With Forks | 17.58 | ft |
| Reach - Ground Level | 3.25 | ft |
| Maximum Reach | 4.92 | ft |
| Fork Depth Above Ground | 2 | in |
| Fork Height at Maximum Reach | 4.67 | ft |
| Maximum Fork Height | 10.33 | ft |
| Fork Reach at Maximum Height | 2 | ft |
| Turning Radius - Over Bucket* | 13.42 | ft |
| Turning Radius - Inside Tire** | 5.92 | ft |
| Width - Over Bucket* | 5.83 | ft |
| Tire Gauge | 4.33 | ft |
| Machine Width** | 5.58 | ft |
| Articulation Angle | ||
| Steering Angle | ||
| Dump Angle at Maximum Height | ||
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Tire Size | ||
| Rated Bucket Capacity | 0.8 | yd³ |
| Breakout Force | 6160 | lbf |
| Operating Weight | 9414 | lb |
| Rated Operating Load at Full Turn - Bucket*** | 2701 | lb |
| Straight Tipping Load - Bucket*** | 6415 | lb |
| Full Turn Static Tipping Load - Bucket (ISO 14397-1*)*** | 5401 | lb |
| Full Turn Static Tipping Load - Bucket (Rigid Tire**)*** | 5512 | lb |
| Rack Back - Transport Position | ||
| Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% FTSTL)*** | 3366 | lb |
| Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% FTSTL)*** | 2524 | lb |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Note (4) | ||
| Tire Size | ||
| Rated Bucket Capacity | 0.8 | yd³ |
| Breakout Force | 6204 | lbf |
| Operating Weight | 9462 | lb |
| Rated Operating Load at Full Turn - Bucket*** | 2502 | lb |
| Straight Tipping Load - Bucket*** | 5975 | lb |
| Full Turn Static Tipping Load - Bucket (ISO 14397-1*)*** | 5004 | lb |
| Full Turn Static Tipping Load - Bucket (Rigid Tire**)*** | 5115 | lb |
| Rack Back - Transport Position | ||
| Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% FTSTL)*** | 3148 | lb |
| Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% FTSTL)*** | 2361 | lb |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Note (4) | ||
| Bucket Type | ||
| Rated Capacity | 0.8 | yd³ |
| Dump Height | 90 | in |
| Maximum Material Density | 3169 | lb/yd³ |
| Bucket Width | 70 | in |
| Note | ||
| Bucket Type | ||
| Rated Capacity | 1.3 | yd³ |
| Dump Height | 85 | in |
| Maximum Material Density | 1989 | lb/yd³ |
| Bucket Width | 74 | in |
| Note | ||
| Recyclability |
Standard Equipment
- POWER TRAIN
- ELECTRICAL
- OPERATOR ENVIRONMENT
- OTHER STANDARD EQUIPMENT
Optional Equipment
- OPTIONAL EQUIPMENT
- WORK TOOLS
