908

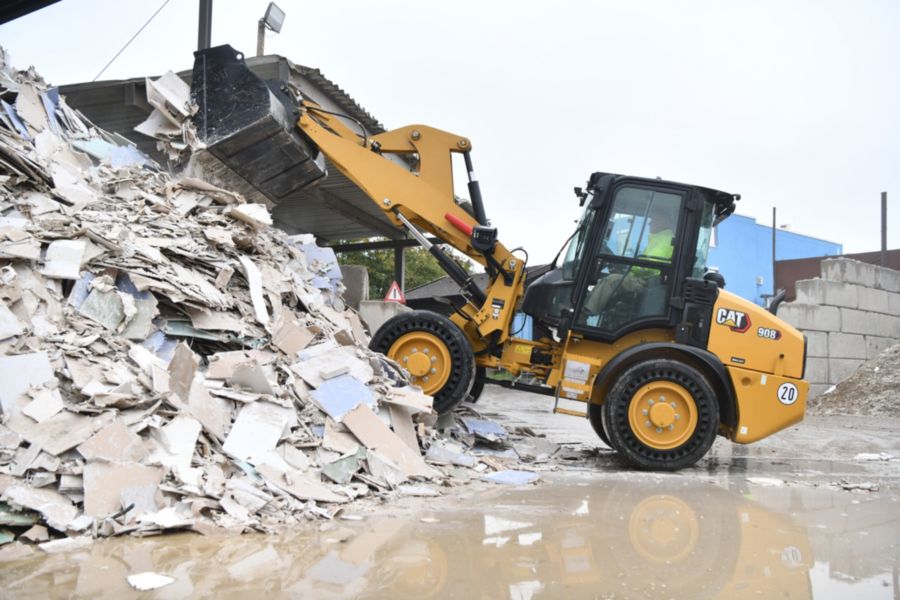

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 908 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles.
Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 908 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles.
Brochures and Spec Sheets
- 908 Compact Wheel Loader Product Brochure
- Cat Attachments for Compact Wheel Loaders Brochure
- 906/907/908 Wheel Loaders Family Product Brochure
- 906/907/908 Options and Accessories Kit Guide
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Maximum Gross Power | 74.7 | hp |
| Engine Model | ||
| Maximum Engine Speed | ||
| Maximum Gross Power - Rated Engine Speed | 2400 | r/min |
| Maximum Gross Power - SAE J1995 | 74.7 | hp |
| Maximum Gross Power - ISO 14396 | 74.3 | hp |
| Maximum Gross Power - ISO 14396 (metric) | 75.3 | mhp |
| Rated Net Power - Rated Engine Speed | 2400 | r/min |
| Rated Net Power - SAE J1349 | 72.7 | hp |
| Rated Net Power - ISO 9249 | 72.1 | hp |
| Rated Net Power - 2,400 rpm - ISO 9249 (metric) | 73.1 | mhp |
| Maximum Gross Torque - SAE J1995 | 222 | lb/ft |
| Maximum Gross Torque - ISO 14396 | 221 | lb/ft |
| Maximum Net Torque - SAE J1349 | 218 | lb/ft |
| Maximum Net Torque - ISO 9249 | 217 | lb/ft |
| Displacement | 171 | in³ |
| Bore | 3.54 | in |
| Stroke | 4.33 | in |
| Note | ||
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Operating Weight | 14617 | lb |
| Bucket Capacities | ||
| Bucket Capacities - General Purpose | ||
| Multi-Purpose | ||
| Bucket Capacities - Light Material | ||
| Note | ||
| Note (1) | ||
| Fuel Tank | 24 | Gal |
| Cooling System | 3.2 | Gal |
| Engine Crankcase | 2.3 | Gal |
| Axles - Front Center Differential | 2.3 | Gal |
| Axles - Rear Center Differential | 2.3 | Gal |
| Hydraulic System - Including Tank | 18.6 | Gal |
| Hydraulic Tank | 11.8 | Gal |
| Transmission | 0.6 | Gal |
| Note | ||
| Front | ||
| Rear | ||
| Note | ||
| Steering Articulation Angle - Each Direction | 39 | ° |
| Maximum Flow - Steering Pump | 12.3 | gpm |
| Maximum Working Pressure - Steering Pump | 3336 | psi |
| Steering Cycle Times – (full left to full right) – at High Idle | 2.8 | s |
| Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | ||
| Forward and Reverse - Speed Range Creep# | 6 | mile/h |
| Forward and Reverse - Speed Range 1* | 6 | mile/h |
| Forward and Reverse - Speed Range 2** - High Speed | 10.5 | mile/h |
| Forward and Reverse - Speed Range 2** - Standard | 12 | mile/h |
| Forward and Reverse - Speed Range 3*** | 25 | mile/h |
| Note | ||
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Tire Size - Standard | ||
| Tire Size - Optional | ||
| Tire Size - Optional (1) | ||
| Tire Size - Optional (2) | ||
| Tire Size - Optional (3) | ||
| Note | ||
| Note (1) | ||
| Note (2) | ||
| ROPS | ||
| FOPS | ||
| Note (1) | ||
| Main Relief - 1st Auxiliary (3rd slice) | 3408 | psi |
| Main Relief - 1st Auxiliary (3rd slice) - Standard Flow* | 24 | gpm |
| Main Relief - 1st Auxiliary (3rd slice) - High Flow* | 33 | gpm |
| Main Relief - 2nd Auxiliary (4th slice) | 3408 | psi |
| Main Relief - 2nd Auxiliary (4th slice) - Flow | 12 | gpm |
| Hydraulic Cycle Time - Rackback | 2.5 | s |
| Hydraulic Cycle Time - Lift | 5.8 | s |
| Hydraulic Cycle Time - Dump | 1.8 | s |
| Hydraulic Cycle Time - Float Down | 3.6 | s |
| Note | ||
| Height: Ground to Cab** | 8.75 | ft |
| Height: Ground to Beacon** | 9.33 | ft |
| Height: Ground Axle Center** | 1.67 | ft |
| Height: Ground Clearance** | 1 | ft |
| Length: Overall* | 18.17 | ft |
| Length: Rear Axle to Bumper | 4.5 | ft |
| Length: Hitch to Front Axle | 3.5 | ft |
| Length: Wheel Base | 7.08 | ft |
| Clearance: Bucket at 45° * | 8.58 | ft |
| Clearance: Load over Height** | 9.75 | ft |
| Clearance: Level Bucket** | 10.50 | ft |
| Height: Bucket Pin** | 11.17 | ft |
| Height: Overall** | 14.17 | ft |
| Reach: Bucket at 45° * | 2.33 | ft |
| Carry Height: Bucket Pin | 1.17 | ft |
| Dig Depth** | 0.33 | ft |
| Width: Bucket | 6.75 | ft |
| Width: Tread Center | 5.08 | ft |
| Turning Radius: Over Bucket | 14.75 | ft |
| Width: Over Tires | 6.67 | ft |
| Turning Radius: Outside of Tires | 13.17 | ft |
| Turning Radius: Inside of Tires | 6.50 | ft |
| Rack Angle at Full Lift | ||
| Dump Angle at Full Lift | ||
| Rack Angle at Carry | ||
| Departure Angle - Degrees | ||
| Articulation Angle - Degrees | ||
| Operating Weight: Bucket ^ | 14633 | lb |
| Tipping Load - Straight - ISO 14397-1 † | 10626 | lb |
| Tipping Load - Full Turn - ISO 14397-1 † | 8895 | lb |
| Operating Weight: Carriage and Tines ^^ | 14252 | lb |
| Tipping Load - Straight † | 10626 | lb |
| 80% of Tip: Firm and Level EN474-3 †† | 5815 | lb |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Note (4) | ||
| Note (5) | ||
| Note (6) | ||
| Note (7) | ||
| Note (8) | ||
| Note (9) | ||
| Height - Ground to Cab | 8.75 | ft |
| Height: Ground to Beacon** | 9.33 | ft |
| Height: Ground Axle Center** | 1.67 | ft |
| Height - Ground Clearance | 1 | ft |
| Length - Overall with Bucket | 18.67 | ft |
| Length: Rear Axle to Bumper | 4.5 | ft |
| Length: Hitch to Front Axle | 3.5 | ft |
| Length - Wheel Base | 7.08 | ft |
| Clearance - Bucket at 45° | 8.25 | ft |
| Clearance: Load over Height** | 9.75 | ft |
| Clearance - Level Bucket | 10.50 | ft |
| Height - Bucket Pin | 11.17 | ft |
| Height: Overall** | 14.42 | ft |
| Reach - Bucket at 45° | 2.67 | ft |
| Carry Height: Bucket Pin | 1.25 | ft |
| Dig Depth | 0.45 | ft |
| Width - Bucket | 6.75 | ft |
| Width - Tread Center | 5.08 | ft |
| Turning Radius - Over Bucket | 15.08 | ft |
| Width - Over Tires | 6.67 | ft |
| Turning Radius: Outside of Tires | 13.17 | ft |
| Turning Radius - Inside Tire | 6.67 | ft |
| Rack Angle at Full Lift | ||
| Dump Angle at Full Lift | ||
| Rack Angle at Carry | ||
| Departure Angle - Degrees | ||
| Articulation Angle - Degrees | ||
| Operating Weight: Bucket ^ | 14752 | lb |
| Tipping Load – Straight – ISO 14397-1 † | 9581 | lb |
| Tipping Load – Full Turn – ISO 14397-1 † | 8141 | lb |
| Operating Weight: Carriage and Tines ^^ | 14391 | lb |
| Tipping Load - Straight † | 9753 | lb |
| 80% of Tip: Firm and Level EN474-3 †† | 5438 | lb |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Note (4) | ||
| Note (5) | ||
| Note (6) | ||
| Note (7) | ||
| Note (8) | ||
| Note (9) | ||
| Tipping Load - Full Turn - ISO 14397-1† | 6800 | lb |
| Length: Front Axle to Front of Coupler | 4.75 | ft |
| Height: Ground to Cab** | 8.75 | ft |
| Height: Ground to Beacon** | 9.33 | ft |
| Height: Ground Axle Center** | 1.67 | ft |
| Height: Ground Clearance** | 1 | ft |
| Length: Overall* | 19.67 | ft |
| Length: Rear Axle to Bumper | 4.5 | ft |
| Length: Hitch to Front Axle | 3.5 | ft |
| Length: Wheel Base | 7.08 | ft |
| Clearance: Bucket at 45° * | 10.92 | ft |
| Clearance: Load over Height** | 10.75 | ft |
| Clearance: Level Bucket** | 12.08 | ft |
| Height: Bucket Pin** | 12.75 | ft |
| Height: Overall** | 15.67 | ft |
| Reach: Bucket at 45° * | 3.25 | ft |
| Carry Height: Bucket Pin | 1.17 | ft |
| Dig Depth** | .33 | ft |
| Width: Bucket | 6.75 | ft |
| Width: Tread Center | 5.08 | ft |
| Turning Radius: Over Bucket | 15.83 | ft |
| Width: Over Tires | 6.67 | ft |
| Turning Radius: Outside of Tires | 13.17 | ft |
| Turning Radius: Inside of Tires | 6.50 | ft |
| Rack Angle at Full Lift | ||
| Dump Angle at Full Lift | ||
| Rack Angle at Carry | ||
| Departure Angle - Degrees | ||
| Articulation Angle - Degrees | ||
| Operating Weight: Bucket ^ | 14848 | lb |
| Tipping Load - Straight - ISO 14397-1 † | 9187 | lb |
| Tipping Load - Full Turn - ISO 14397-1 † | 7645 | lb |
| Operating Weight: Carriage and Tines ^^ | 14542 | lb |
| Tipping Load - Straight † | 9187 | lb |
| 80% of Tip: Firm and Level EN474-3 †† | 4706 | lb |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Note (4) | ||
| Note (5) | ||
| Note (6) | ||
| Note (7) | ||
| Note (8) | ||
| Note (9) | ||
| Height: Ground to Cab** | 8.75 | ft |
| Height: Ground to Beacon** | 9.33 | ft |
| Height: Ground Axle Center** | 1.67 | ft |
| Height: Ground Clearance** | 1 | ft |
| Length: Overall* | 20.17 | ft |
| Length: Rear Axle to Bumper | 4.5 | ft |
| Length: Hitch to Front Axle | 3.5 | ft |
| Length: Wheel Base | 7.08 | ft |
| Clearance: Bucket at 45° * | 10.42 | ft |
| Clearance: Load over Height** | 10.75 | ft |
| Clearance: Level Bucket** | 12.08 | ft |
| Height: Bucket Pin** | 12.75 | ft |
| Height: Overall** | 15.92 | ft |
| Reach: Bucket at 45° * | 3.42 | ft |
| Carry Height: Bucket Pin | 1.25 | ft |
| Dig Depth** | 0.42 | ft |
| Width: Bucket | 6.75 | ft |
| Width: Tread Center | 5.08 | ft |
| Turning Radius: Over Bucket | 16.17 | ft |
| Width: Over Tires | 6.67 | ft |
| Turning Radius: Outside of Tires | 13.17 | ft |
| Turning Radius: Inside of Tires | 6.50 | ft |
| Rack Angle at Full Lift | ||
| Dump Angle at Full Lift | ||
| Rack Angle at Carry | ||
| Departure Angle - Degrees | ||
| Articulation Angle - Degrees | ||
| Operating Weight: Bucket ^ | 15070 | lb |
| Tipping Load - Straight - ISO 14397-1 † | 8385 | lb |
| Tipping Load - Full Turn - ISO 14397-1 † | 6943 | lb |
| Operating Weight: Carriage and Tines ^^ | 14714 | lb |
| Tipping Load - Straight † | 8385 | lb |
| 80% of Tip: Firm and Level EN474-3 †† | 4375 | lb |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Note (4) | ||
| Note (5) | ||
| Note (6) | ||
| Note (7) | ||
| Note (8) | ||
| Note (9) | ||
| Recyclability |
Standard Equipment
- POWER TRAIN
- HYDRAULICS
- ELECTRICAL
- OPERATOR ENVIRONMENT
- OTHER
Optional Equipment
- POWER TRAIN
- ELECTRICAL
- HYDRAULICS
- OPERATOR STATION
- OTHER
