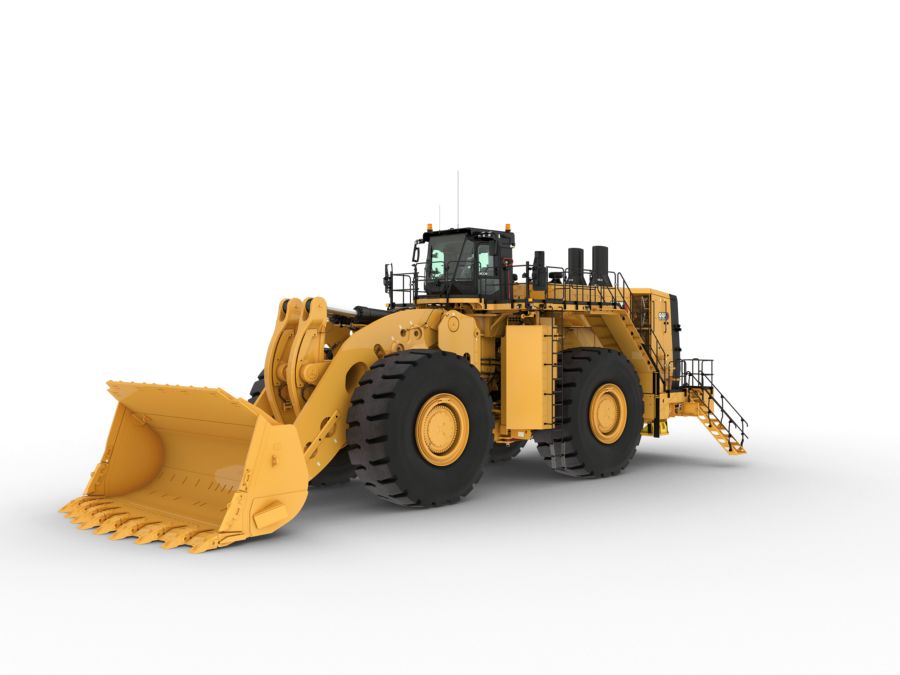

995
Built to the same size as the 994K but offering a higher rated payload, the new Cat® 995 Wheel Loader gives you greater productivity and performance while using less fuel. It offers a one-pass reduction when loading Cat 785, 789 and 793 Mining Trucks — increasing production and efficiency up to 33% when loading the 785, up to 25% when loading the 789, and up to 20% with the 793. The 995 demonstrates 21% higher efficiency and 24% more production than the 994K in equal operating mode thanks to a higher rated payload and 6% increase in hydraulic force. In Enhanced Eco Mode, the 995 demonstrates up to a 30% increase in efficiency and an 11% reduction in hourly fuel consumption versus the 994K in throttle lock mode, which translates to 23% less CO2 per unit of material moved. It also offers a more comfortable operator environment and is infused with new technology features that allow additional gains in efficiency.
Built to the same size as the 994K but offering a higher rated payload, the new Cat® 995 Wheel Loader gives you greater productivity and performance while using less fuel. It offers a one-pass reduction when loading Cat 785, 789 and 793 Mining Trucks — increasing production and efficiency up to 33% when loading the 785, up to 25% when loading the 789, and up to 20% with the 793. The 995 demonstrates 21% higher efficiency and 24% more production than the 994K in equal operating mode thanks to a higher rated payload and 6% increase in hydraulic force. In Enhanced Eco Mode, the 995 demonstrates up to a 30% increase in efficiency and an 11% reduction in hourly fuel consumption versus the 994K in throttle lock mode, which translates to 23% less CO2 per unit of material moved. It also offers a more comfortable operator environment and is infused with new technology features that allow additional gains in efficiency.
Brochures and Spec Sheets
- 995 Technical Specifications
- 995 Key Features and Benefits
- 995 Product Brochure
- 995 Poster
- 995 Benefits
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Engine Model | ||
| Emissions | ||
| Engine Power - ISO 14396 | 1847 | hp |
| Gross Power - SAE J1995:2014 | 1870 | hp |
| Net Power - SAE J1349 - Standard Ambient | 1739 | hp |
| Net Power - SAE J1349 - High Ambient | 1696 | hp |
| Bore | 6.7 | in |
| Stroke | 8.5 | in |
| Displacement | 4766 | in³ |
| Peak Torque - 1,200 rpm - SAE J1995 | 8549 | lb/ft |
| Torque Rise | ||
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Operating Weight - Standard | 543772 | lb |
| Operating Weight - High Lift | 547675 | lb |
| Rated Payload - Standard Lift (Low to Moderate Digging Resistance) | 60 | ton (US) |
| Rated Payload - Standard Lift (Moderate to High Digging Resistance) | 50 | ton (US) |
| Rated Payload - High Lift (Low to Moderate Digging Resistance) | 55 | ton (US) |
| Rated Payload - High Lift (Moderate to High Digging Resistance) | 50 | ton (US) |
| Note | ||
| Cat Truck Match - Standard | ||
| Cat Truck Match - High Lift | ||
| Bucket Capacity Range | ||
| Transmission Type | ||
| Forward - 1 | 4.6 | mile/h |
| Forward - 2 | 8 | mile/h |
| Forward - 3 | 13.6 | mile/h |
| Reverse - 1 | 5 | mile/h |
| Reverse - 2 | 8.8 | mile/h |
| Reverse - 3 | 14.9 | mile/h |
| Direct Drive - Forward 1 | ||
| Direct Drive - Forward 2 | 8.7 | mile/h |
| Direct Drive - Forward 3 | 15.2 | mile/h |
| Direct Drive - Reverse 1 | ||
| Direct Drive - Reverse 2 | 9.6 | mile/h |
| Direct Drive - Reverse 3 | 16.8 | mile/h |
| Note | ||
| Lift/Tilt System - Circuit | ||
| Lift/Tilt System - Pump | ||
| Maximum Flow at 1,700 rpm Engine Speed | 541 | gpm |
| Relief Valve Setting - Lift/Tilt | 5004 | psi |
| Cylinders, Double Acting - Lift, Bore and Stroke | ||
| Cylinders, Double Acting - Tilt, Bore and Stroke | ||
| Pilot System | ||
| Rack Back | 4.9 | s |
| Raise | 12.6 | s |
| Dump | 3.1 | s |
| Lower Float Down | 4.2 | s |
| Fuel Tank - Standard | 856 | gal (US) |
| Fuel Tank - With 24 hr Attachment | 1414 | gal (US) |
| Cooling System | 138 | gal (US) |
| Engine Crankcase | 76 | gal (US) |
| Transmission | 110 | gal (US) |
| Differential - Final Drives - Front | 220 | gal (US) |
| Differential - Final Drives - Rear | 200 | gal (US) |
| Hydraulic Tank - Implement and Hydraulic Fan | 270 | gal (US) |
| Hydraulic Tank - Steering and Braking | 100 | gal (US) |
| Oil Renewal System (ORS)* | 20 | gal (US) |
| Note | ||
| Front | ||
| Rear | ||
| Oscillation Angle | ||
| Brakes | ||
| Ambient Capability Hydraulically Driven Demand Fan - Standard | 109.4 | °F |
| Ambient Capability Hydraulically Driven Demand Fan - High (Tier 1 equivalent) | 131 | °F |
| Ambient Capability Hydraulically Driven Demand Fan - High (Tier 4 Final) | 127.4 | °F |
| Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent | 74 | dB(A) |
| Machine Sound Level (ISO 6395:2008) | 119 | dB(A) |
| Note | ||
| Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent | 73 | dB(A) |
| Machine Sound Level (ISO 6395:2008) | 117 | dB(A) |
| Note | ||
| Steering System - Circuit | ||
| Steering System - Pump | ||
| Total Steering Angle | ||
| Steering Cycle Times - Low Idle | 7.6 | s |
| Steering Cycle Times - High Idle | 4.3 | s |
| B-Pin Height - Maximum Lift | 28.8 | ft |
| Clearance at Maximum Lift | 19.8 | ft |
| Dump Angle at Maximum Lift | ||
| Front Axle Centerline to Bucket Tip | 21.9 | ft |
| Ground to Bumper Clearance | 4.4 | ft |
| Ground to Center of Axles | 6 | ft |
| Ground to Lower Hitch Clearance | 2.9 | ft |
| Ground to Top of Exhaust Stacks | 23.2 | ft |
| Ground to Top of Hood | 18.6 | ft |
| Ground to Top of ROPS | 23.4 | ft |
| Maximum Overall Height - Bucket Raised | 39.3 | ft |
| Maximum Overall Length | 64.6 | ft |
| Note | ||
| Rack Angle at Maximum Lift | ||
| Rack Back Angle - Carry | ||
| Rack Back Angle - Ground Level | ||
| Reach - Maximum Lift | 9.6 | ft |
| Rear Axle - Centerline to Bumper | 20.4 | ft |
| Tread Width | 14.1 | ft |
| Wheel Base | 22.3 | ft |
| Width - Over Tires - With Bulge | 18.8 | ft |
| B-Pin Height - Maximum Lift | 31.6 | ft |
| Clearance at Maximum Lift | 22.6 | ft |
| Dump Angle at Maximum Lift | ||
| Front Axle Centerline to Bucket Tip | 24.2 | ft |
| Ground to Bumper Clearance | 4.4 | ft |
| Ground to Center of Axles | 6 | ft |
| Ground to Lower Hitch Clearance | 2.9 | ft |
| Ground to Top of Exhaust Stacks | 23.2 | ft |
| Ground to Top of Hood | 18.6 | ft |
| Ground to Top of ROPS | 23.4 | ft |
| Maximum Overall Height - Bucket Raised | 42.1 | ft |
| Maximum Overall Length | 66.9 | ft |
| Note | ||
| Rack Angle at Maximum Lift | ||
| Rack Back Angle - Carry | ||
| Rack Back Angle - Ground Level | ||
| Reach - Maximum Lift | 9.4 | ft |
| Rear Axle - Centerline to Bumper | 20.4 | ft |
| Tread Width | 14.1 | ft |
| Wheel Base | 22.3 | ft |
| Width - Over Tires - With Bulge | 18.8 | ft |
Standard Equipment
- POWER TRAIN
- LINKAGE
- ELECTRICAL
- OPERATOR ENVIRONMENT
- SAFETY
- MACHINE CONTROL AND GUIDANCE
- FUEL TANK
- COOLING
- GROUND-LEVEL SERVICE CENTER
- SERVICE
- EFFICIENCY
Optional Equipment
- POWER TRAIN
- LINKAGE
- OPERATOR ENVIRONMENT
- SAFETY
- COLD WEATHER
- MACHINE CONTROL AND GUIDANCE
- FUEL TANK
- COOLING
- RIMS AND TIRES
- SPARE RIMS
- SERVICE
- SOUND
