950 GC

950 GC
Caterpillar
Request a Quote Find a Location

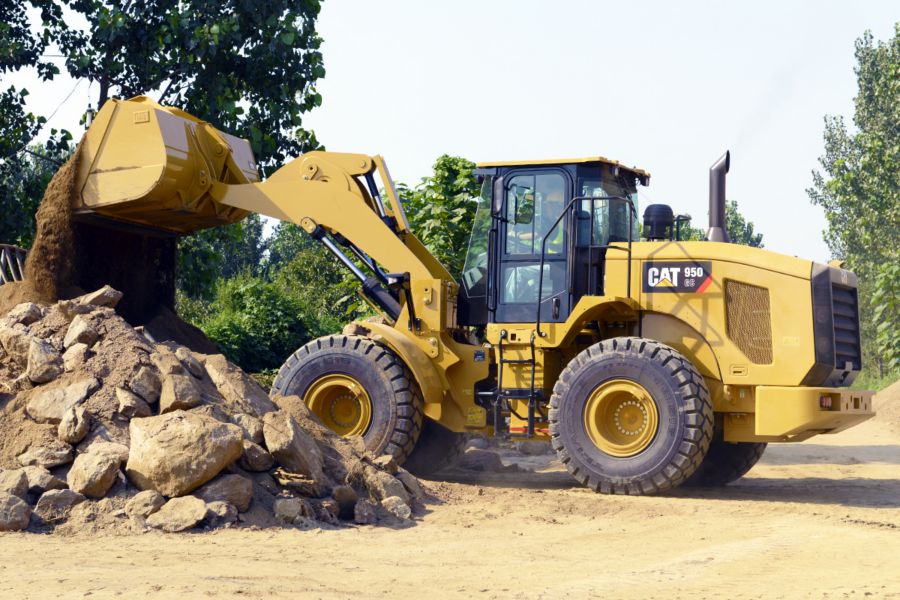

The Cat® 950 GC wheel loader is designed specifically to handle all the jobs on your worksite from material handling and truck loading to general construction and stockpiling. Great machine performance combined with the low owning and operating costs makes the 950 GC the right choice for your business.
The purpose-built, easy to operate, reliable Cat 950 GC wheel loader is right-sized to get your everyday jobs done. With low fuel consumption, low owning and operating costs, the 950 GC is the perfect wheel loader to handle your loose material handling, truck loading, general construction, and stockpiling jobs.

Brochures and Spec Sheets

Gallery

950 GC 950 GC 950 GC 950 GC 950 GC 950 GC 950 GC

Specifications

Specification Value Unit
Net Power - ISO 9249 225 hp
Emissions
Displacement 428 in³
Maximum Net Power - 1,700 rpm - ISO 9249 - Metric 228 hp
Maximum Power - 1,700 rpm - ISO 14396 240 hp
Maximum Power - 1,700 rpm - ISO 14396 - Metric 243 hp
Peak Gross Torque - 1,400 rpm - SAE J1995 811 ft·lbf
Peak Gross Torque - 1,400 rpm - ISO 14396 805 ft·lbf
Engine Model
Maximum Net Power - 1,700 rpm - ISO 9249 225 hp
Maximum Net Power - 1,700 rpm - SAE J1349 225 hp
Maximum Power - 1,700 rpm - SAE J1995 241 hp
Operating Weight 41554 lb
Bucket Capacities
Reverse - 3 14.2 mile/h
Forward - 3 14.2 mile/h
Forward - 1 4.5 mile/h
Forward - 2 8 mile/h
Forward - 4 22.4 mile/h
Reverse - 2 8 mile/h
Reverse - 1 4.5 mile/h
Hydraulic Cycle Time - Total Cycle Time 9.4 s
Steering System - Pump Type
Implement System - Maximum Operating Pressure @ 50 ± 1.5 L/min (13.2 + 0.4 gal/min) 4047 psi
Implement System - Maximum Pump Output at 2,390 rpm 68 gpm
DEF Tank 4.2 gal (US)
Transmission 11.9 gal (US)
Fuel Tank Size 76.6 gal (US)
Cooling System 13.2 gal (US)
Differential - Final Drives - Rear 10 gal (US)
Differential - Final Drives - Front 10.6 gal (US)
Crankcase 4.8 gal (US)
Hydraulic Tank 29.6 gal (US)
With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008) 73 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008) 109 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)
Note (1)
With Cooling Fan Speed at 70% of Maximum Value: Note (2)
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)** 73 dB(A)
Rack Back - Ground
Note (2)
Height - Top of Exhaust Pipe 11.17 ft
Centerline of Rear Axle to Hitch 5.42 ft
Note
Lift Arm Clearance 12 ft
B-Pin Height 13.75 ft
Tipping Load - Full Turn - Rigid Tires** 25875 lb
Bore 4.13 in
Centerline of Rear Axle to Edge of Counterweight 6.75 ft
Ground Clearance 1.5 ft
With Cooling Fan Speed at 70% of Maximum Value: Note (1)
Rack Back - Maximum Lift
Height - Top of Hood 8.75 ft
Note
Breakout Force 34638 lbf
With Cooling Fan Speed at Maximum Value - Note
Wheel Base 10.83 ft
Tipping Load - Full Turn - ISO 14397-1* 24264 lb
Note (3)
Height - Top of ROPS 11.33 ft
Operating Weight 41554 lb
Note (1)
Stroke 5.31 in
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**
Rack Back - Carry
Note
Note (3)
Note (2)
Emissions

Standard Equipment

  • NOTE
  • POWER TRAIN
  • HYDRAULICS
  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • TIRES, RIMS, AND WHEELS
  • FLUIDS
  • OTHER STANDARD EQUIPMENT

Optional Equipment

  • NOTE
  • OPTIONAL EQUIPMENT
