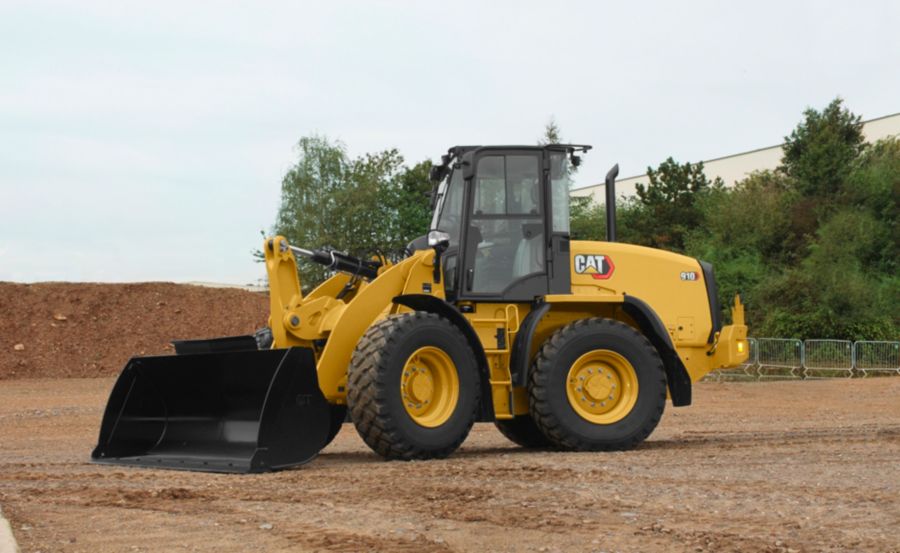

910
The Cat® 910 Small Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.
The Cat® 910 Small Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.
Brochures and Spec Sheets
- 910 Wheel Loader Product Brochure
- 910/914/920 Wheel Loaders Family Product Brochure
- Cat Attachments for Compact Wheel Loaders Brochure
- 910/914/920 Options and Accessories Kit Guide
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Rated Net Power - Rated Engine Speed | 2200 | r/min |
| Maximum Gross Power - Rated Engine Speed | 1800 | r/min |
| Rated Net Power - SAE J1349 | 99 | hp |
| Maximum Gross Power - ISO 14396 (metric) | 112 | hp |
| Rated Net Power - ISO 9249 | 98 | hp |
| Maximum Gross Torque - SAE J1995 | 335 | ft·lbf |
| Maximum Gross Torque - ISO 14396 | 332 | ft·lbf |
| Maximum Net Torque - SAE J1349 | 329 | ft·lbf |
| Maximum Net Torque - ISO 9249 | 327 | ft·lbf |
| Displacement | 220 | in³ |
| Bore | 3.85 | in |
| Stroke | 4.72 | in |
| Engine Model | ||
| Emissions | ||
| Note | ||
| Maximum Gross Power - ISO 14396 | 110 | hp |
| Bucket Capacities | ||
| Bucket Capacities - General Purpose | ||
| Bucket Capacities - Light Material | ||
| Operating Weight | 18102 | lb |
| Maximum Working Pressure - Steering Pump | 2683 | psi |
| Steering Articulation Angle - Each Direction | 40 | ° |
| Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed | 3.2 | s |
| Maximum Flow - Steering Pump | 17 | gpm |
| Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | 3.75 | turns |
| Hydraulic Cycle Time - Dump, at Maximum Reach | 1.4 | s |
| Hydraulic Cycle Time - Total Cycle Time | 12.5 | s |
| Maximum Working Pressure - Implement Pump | 3408 | psi |
| Relief Pressure - Tilt Cylinder | 4931 | psi |
| Hydraulic Cycle Time - Rackback | 2.2 | s |
| Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure | 3046 | psi |
| Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift | 5.2 | s |
| Maximum Flow - Implement Pump | 32 | gpm |
| Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure | 3046 | psi |
| Maximum Flow - Implement Pump - 4th Function, Maximum Flow | 24 | gpm |
| Maximum Flow - Implement Pump - 3rd Function, Maximum Flow | 24 | gpm |
| Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level | 3.7 | s |
| Cooling System | 5.7 | gal (US) |
| Fuel Tank | 43.6 | gal (US) |
| Hydraulic System - Including Tank | 25.9 | gal (US) |
| Hydraulic Tank | 14.5 | gal (US) |
| Transmission | 0.8 | gal (US) |
| Note | ||
| Axles - Front Center Differential | 2 | gal (US) |
| Axles - Rear Center Differential | 2 | gal (US) |
| Engine Crankcase | 2.6 | gal (US) |
| Diesel Exhaust Fluid (DEF) Tank | 4.8 | gal (US) |
| Note | ||
| Forward and Reverse - Speed Range 3 | 25 | mile/h |
| Forward and Reverse - Speed Range 2* | 12.5 | mile/h |
| Forward and Reverse - Speed Range 1* | 6.3 | mile/h |
| Note (2) | ||
| Standard Size | ||
| Other Choices Include | ||
| Note (3) | ||
| Note (1) | ||
| ROPS | ||
| FOPS | ||
| Note (2) | ||
| Note (3) | ||
| Note (1) | ||
| Note (4) | ||
| Front | ||
| Rear | ||
| Recyclability | ||
| Maximum Gross Power | 110 | hp |
