914

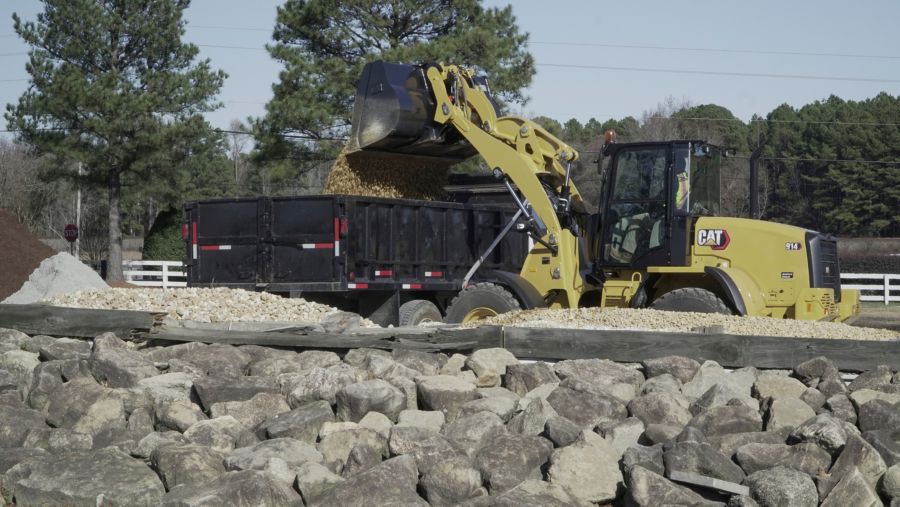

The Cat® 914 Small Wheel Loader features an optimized Z-bar linkage that combines the digging efficiency of a traditional Z-bar loader with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control.
The Cat® 914 Small Wheel Loader features an optimized Z-bar linkage that combines the digging efficiency of a traditional Z-bar loader with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control.
Brochures and Spec Sheets
- 914 Wheel Loader Product Brochure
- 910/914/920 Wheel Loaders Family Product Brochure
- Cat Attachments for Compact Wheel Loaders Brochure
- 910/914/920 Options and Accessories Kit Guide
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Rated Net Power - Rated Engine Speed | 2200 | r/min |
| Maximum Gross Power - Rated Engine Speed | 1800 | r/min |
| Rated Net Power - SAE J1349 | 99 | hp |
| Maximum Gross Power - ISO 14396 (metric) | 112 | hp |
| Rated Net Power - ISO 9249 | 98 | hp |
| Maximum Gross Torque - SAE J1995 | 335 | ft·lbf |
| Maximum Gross Torque - ISO 14396 | 332 | ft·lbf |
| Maximum Net Torque - SAE J1349 | 329 | ft·lbf |
| Maximum Net Torque - ISO 9249 | 327 | ft·lbf |
| Displacement | 220 | in³ |
| Bore | 3.85 | in |
| Stroke | 4.72 | in |
| Engine Model | ||
| Emissions | ||
| Note | ||
| Maximum Gross Power - ISO 14396 | 110 | hp |
| Bucket Capacities | ||
| Bucket Capacities - General Purpose | ||
| Bucket Capacities - Light Material | ||
| Operating Weight | 19103 | lb |
| Maximum Flow - Steering Pump | 22 | gpm |
| Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | 3.75 | turns |
| Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed | 2.8 | s |
| Maximum Working Pressure - Steering Pump | 3263 | psi |
| Steering Articulation Angle - Each Direction | 40 | ° |
| Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure | 3046 | psi |
| Maximum Flow - Implement Pump | 39 | gpm |
| Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, Standard | 24 | gpm |
| Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure | 3046 | psi |
| Hydraulic Cycle Time - Total Cycle Time | 12.5 | s |
| Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift | 5.2 | s |
| Maximum Flow - Implement Pump - 4th Function, Maximum Flow | 24 | gpm |
| Hydraulic Cycle Time - Dump, at Maximum Reach | 1.4 | s |
| Relief Pressure - Tilt Cylinder | 4931 | psi |
| Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, High | 32 | gpm |
| Maximum Working Pressure - Implement Pump | 4061 | psi |
| Hydraulic Cycle Time - Rackback | 2.2 | s |
| Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level | 3.7 | s |
| Cooling System | 5.7 | gal (US) |
| Fuel Tank | 43.6 | gal (US) |
| Note | ||
| Axles - Rear Center Differential | 2 | gal (US) |
| Hydraulic System - Including Tank | 25.9 | gal (US) |
| Diesel Exhaust Fluid (DEF) Tank | 4.8 | gal (US) |
| Engine Crankcase | 2.6 | gal (US) |
| Hydraulic Tank | 14.5 | gal (US) |
| Transmission | 0.8 | gal (US) |
| Axles - Front Center Differential | 2 | gal (US) |
| Note | ||
| Forward and Reverse - Speed Range 3 | 25 | mile/h |
| Forward and Reverse - Speed Range 1* | 6.3 | mile/h |
| Forward and Reverse - Speed Range 2* | 12.5 | mile/h |
| Other Choices Include | ||
| Note (1) | ||
| Standard Size | ||
| Note (3) | ||
| Note (2) | ||
| ROPS | ||
| FOPS | ||
| Note (4) | ||
| Note (2) | ||
| Note (3) | ||
| Note (1) | ||
| Rear | ||
| Front | ||
| Recyclability | ||
| Maximum Gross Power | 110 | hp |
