920

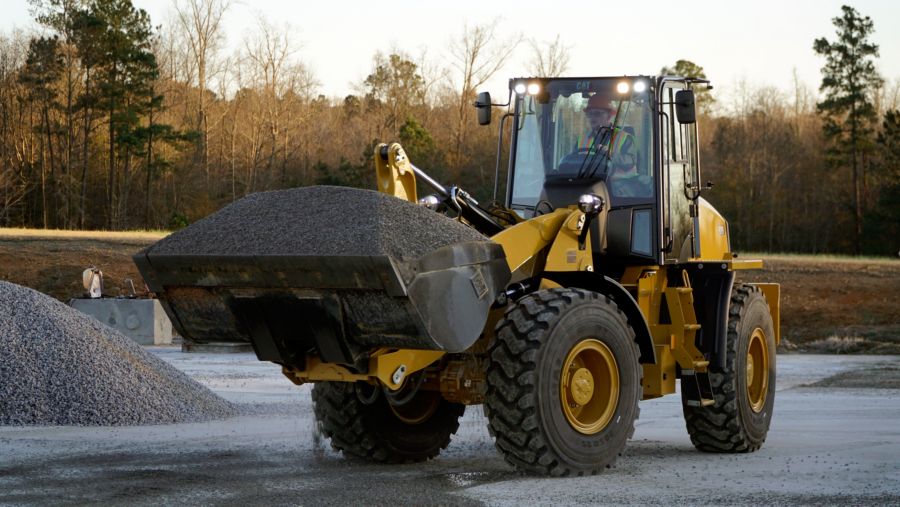

The Cat® 920 Small Wheel Loader features an optimized Z-bar linkage that combines the digging efficiency of a traditional Z-bar loader with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control. A new engine layout greatly improves rear visibility and service access.
The Cat® 920 Small Wheel Loader features an optimized Z-bar linkage that combines the digging efficiency of a traditional Z-bar loader with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control. A new engine layout greatly improves rear visibility and service access.
Brochures and Spec Sheets
- 920 Wheel Loader Product Brochure
- 910/914/920 Wheel Loaders Family Product Brochure
- Cat Attachments for Compact Wheel Loaders Brochure
- 910/914/920 Options and Accessories Kit Guide
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Rated Net Power - Rated Engine Speed | 2200 | r/min |
| Maximum Gross Power - Rated Engine Speed | 2200 | r/min |
| Rated Net Power - SAE J1349 | 120 | hp |
| Maximum Gross Power - ISO 14396 (metric) | 122 | hp |
| Rated Net Power - ISO 9249 | 118 | hp |
| Maximum Gross Torque - SAE J1995 | 372 | ft·lbf |
| Maximum Gross Torque - ISO 14396 | 369 | ft·lbf |
| Maximum Net Torque - SAE J1349 | 366 | ft·lbf |
| Maximum Net Torque - ISO 9249 | 363 | ft·lbf |
| Displacement | 220 | in³ |
| Bore | 3.85 | in |
| Stroke | 4.72 | in |
| Engine Model | ||
| Emissions | ||
| Note | ||
| Maximum Gross Power - ISO 14396 | 121 | hp |
| Bucket Capacities | ||
| Bucket Capacities - General Purpose | ||
| Bucket Capacities - Light Material | ||
| Operating Weight | 21742 | lb |
| Maximum Working Pressure - Steering Pump | 3190 | psi |
| Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed | 2.3 | s |
| Steering Articulation Angle - Each Direction | 40 | ° |
| Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | 3.4 | turns |
| Maximum Flow - Steering Pump | 21.7 | gpm |
| Relief Pressure - Tilt Cylinder | 4641 | psi |
| Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, Standard | 25 | gpm |
| Maximum Flow - Implement Pump | 43.6 | gpm |
| Relief Pressure - Tilt Cylinder - 4th Function Relief Pressure | 4641 | psi |
| Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level | 2.7 | s |
| Note | ||
| Maximum Working Pressure - Implement Pump | 4061 | psi |
| Hydraulic Cycle Time - Total Cycle Time | 11.5 | s |
| Hydraulic Cycle Time - Rackback | 2.2 | s |
| Maximum Flow - Implement Pump - 4rd Function, Maximum Flow | 25 | gpm |
| Hydraulic Cycle Time - Dump, at Maximum Reach | 1.8 | s |
| Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift | 4.8 | s |
| Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, High | 40 | gpm |
| Transmission | 0.8 | gal (US) |
| Engine Crankcase | 2.6 | gal (US) |
| Diesel Exhaust Fluid (DEF) Tank | 4.8 | gal (US) |
| Axles - Rear | 4.5 | gal (US) |
| Cooling System | 5.7 | gal (US) |
| Hydraulic System - Including Tank | 25.9 | gal (US) |
| Axles - Front | 4.5 | gal (US) |
| Fuel Tank | 43.6 | gal (US) |
| Hydraulic Tank | 14.5 | gal (US) |
| Note | ||
| Note | ||
| Forward and Reverse - Speed Range 3 | 25 | mile/h |
| Forward and Reverse - Speed Range 2* | 12.5 | mile/h |
| Forward and Reverse - Speed Range 1* | 6.3 | mile/h |
| Rear | ||
| Front | ||
| ROPS | ||
| FOPS | ||
| Note (3) | ||
| Note (2) | ||
| Note (1) | ||
| Note (4) | ||
| Other Choices Include | ||
| Standard Size | ||
| Note (1) | ||
| Note (3) | ||
| Note (2) | ||
| Recyclability | ||
| Maximum Gross Power | 121 | hp |
