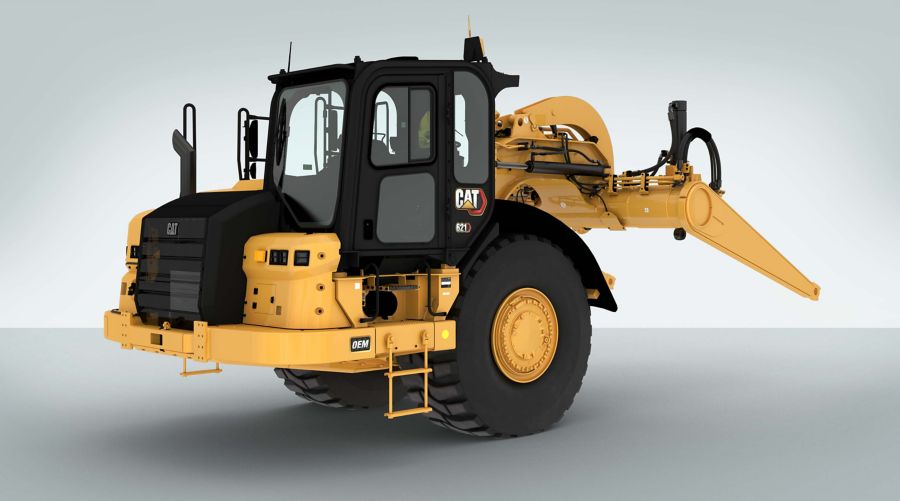

621 Partial Scraper

621 Partial Scraper
Cat
Caterpillar offers partial wheel tractor-scraper power units designed for specialty machines that complement the traditional Cat® product line. These tractor-only configurations are available for purchase directly from Caterpillar OEM Solutions. They can be leveraged for a variety of final machines, including water pulls, elevating scrapers, lowboy trailer power units, and more. With improvements in productivity combined with enhancements in operator comfort and new safety features – Powered Access System and effective wet disc brakes – this machine offers high returns on time and investment.
Caterpillar offers partial wheel tractor-scraper power units designed for specialty machines that complement the traditional Cat® product line. These tractor-only configurations are available for purchase directly from Caterpillar OEM Solutions. They can be leveraged for a variety of final machines, including water pulls, elevating scrapers, lowboy trailer power units, and more. With improvements in productivity combined with enhancements in operator comfort and new safety features – Powered Access System and effective wet disc brakes – this machine offers high returns on time and investment.

Brochures and Spec Sheets

Gallery

Specifications

Specification Value Unit
Tractor Engine
Flywheel Power - Tractor 407 hp
Note
Top Speed - Loaded 33.5 mile/h
1 Forward 3.1 mile/h
2 Forward 5.5 mile/h
3 Forward 7.5 mile/h
4 Forward 10.1 mile/h
5 Forward 13.6 mile/h
6 Forward 18.4 mile/h
7 Forward 24.8 mile/h
8 Forward 33.5 mile/h
Reverse 5.7 mile/h
Width - 180° Turn 38.6 ft
Brakes
ROPS/FOPS
Cab
Fuel Tank 216.1 gal (US)
Crankcase 9.7 gal (US)
Transmission 25.5 gal (US)
Differential 41.7 gal (US)
Final Drive - Each 5 gal (US)
Cooling System 11 gal (US)
Hydraulic Reservoir 21.9 gal (US)
Windshield Washer 1.3 gal (US)

Standard Equipment

  • NOTE
  • POWERTRAIN
  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • FLUIDS
  • OTHER EQUIPMENT
  • OTHER ATTACHMENTS

Optional Equipment

  • OTHER ATTACHMENTS
