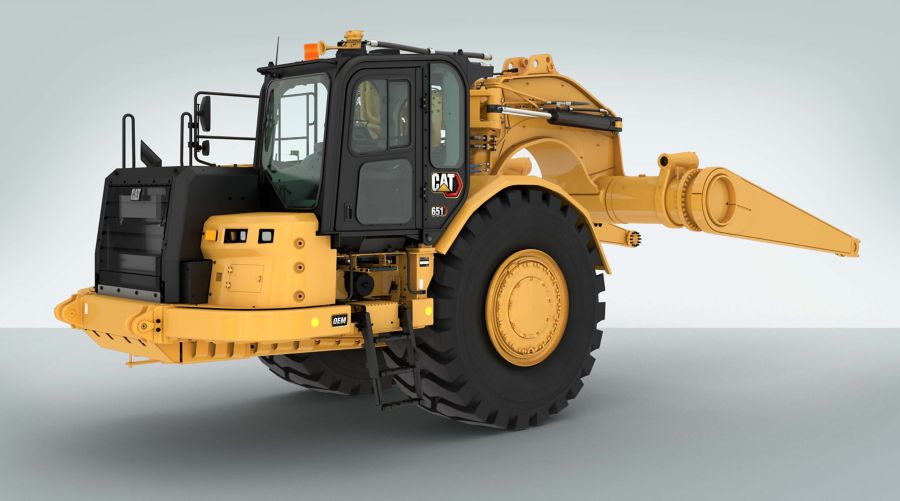

Caterpillar offers partial wheel tractor-scraper power units designed for specialty machines that complement the traditional Cat® product line. These tractor-only configurations are available for purchase directly from Caterpillar OEM Solutions. They can be leveraged for a variety of final machines, including water pulls, elevating scrapers, lowboy trailer power units, and more. With improvements in productivity combined with enhancements in operator comfort and new safety features – Powered Access System and effective wet disc brakes – this machine offers high returns on time and investment.
Caterpillar offers partial wheel tractor-scraper power units designed for specialty machines that complement the traditional Cat® product line. These tractor-only configurations are available for purchase directly from Caterpillar OEM Solutions. They can be leveraged for a variety of final machines, including water pulls, elevating scrapers, lowboy trailer power units, and more. With improvements in productivity combined with enhancements in operator comfort and new safety features – Powered Access System and effective wet disc brakes – this machine offers high returns on time and investment.
Brochures and Spec Sheets
Gallery
Specifications
| Specification |
Value |
Unit |
| Tractor Engine |
|
|
| Note |
|
|
| Gross Power (SAE J1995) |
629 |
hp |
| Bore |
5.7 |
in |
| Stroke |
7.2 |
in |
| Displacement |
1105 |
in³ |
| Top Speed - Loaded |
34.9 |
mile/h |
| 1 Forward |
3.5 |
mile/h |
| 2 Forward |
6.5 |
mile/h |
| 3 Forward |
7.8 |
mile/h |
| 4 Forward |
10.6 |
mile/h |
| 5 Forward |
14.2 |
mile/h |
| 6 Forward |
19.2 |
mile/h |
| 7 Forward |
25.7 |
mile/h |
| 8 Forward |
34.9 |
mile/h |
| Reverse |
6.7 |
mile/h |
| Width - 180° Turn - Right |
45.4 |
ft |
| Width - 180° Turn - Left |
47.57 |
ft |
| Steering Angle - Right |
|
|
| Steering Angle - Left |
|
|
| Brakes |
|
|
| ROPS/FOPS |
|
|
| Cab |
|
|
| Fuel Tank |
227 |
gal (US) |
| Crankcase |
13.7 |
gal (US) |
| Transmission |
35.9 |
gal (US) |
| Differential |
36 |
gal (US) |
| Final Drive - Each |
6 |
gal (US) |
| Cooling System |
23.4 |
gal (US) |
| Hydraulic Reservoir |
39.6 |
gal (US) |
| Windshield Washer |
0.5 |
gal (US) |
Standard Equipment
- NOTE
- POWERTRAIN
- ELECTRICAL
- OPERATOR ENVIRONMENT
- FLUIDS
- OTHER EQUIPMENT
- OTHER ATTACHMENTS
Optional Equipment
