ATC-300+ CONTROLLER

Caterpillar

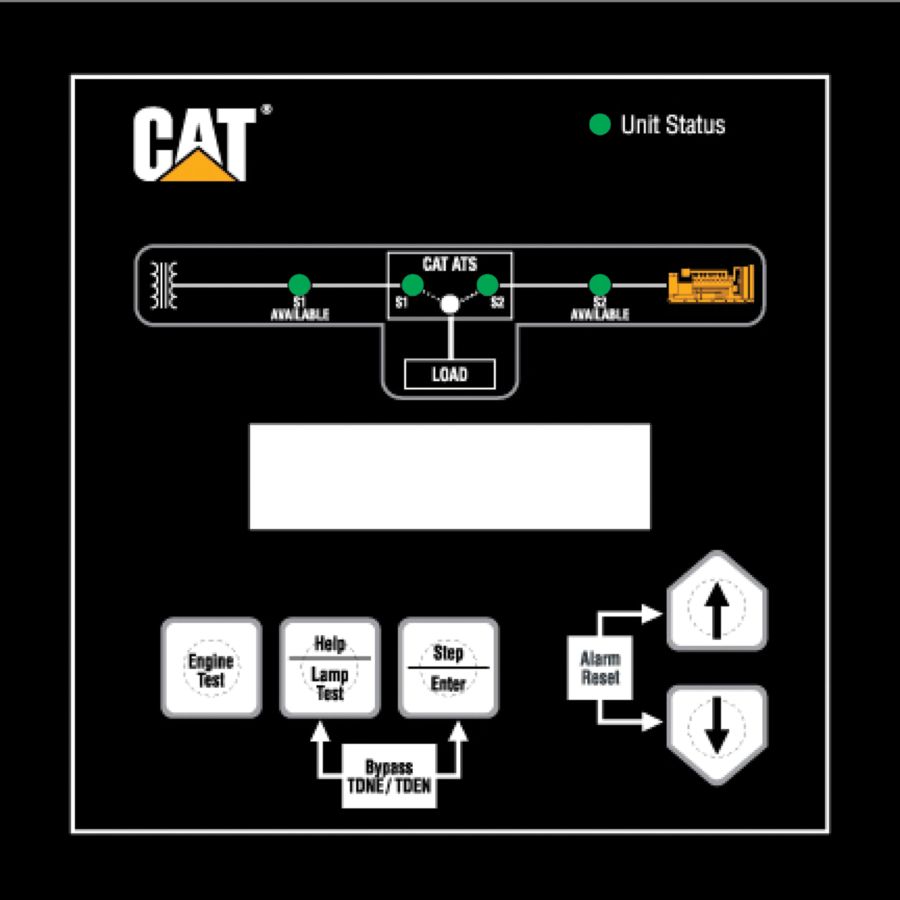

The ATC-300+ is a comprehensive and multifunctional microprocessor-based ATS controller. It is a compact and self-contained panel-mounted device that is designed to replace traditional relay and solid-state logic panels. The ATC-300+ Controller provides programmed flexibility to address the needs of any system. It operates from all system voltages between 120 to 600V, single-phase and three-phase at 50 or 60 Hz. In addition, a period of no control power is provided. The controller monitors the condition of the three-phase line-to-line voltage and frequency of Source 1 and Source 2 power sources and can be programmed for single-phase operation. The ATC-300+ Controller provides the intelligence to ensure that the ATS operates properly through a series of programmed sensing and timing functions.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Rating Range
Transfer Type
Switch Type
Input Control Voltage
Voltage Measurements of Utility
Voltage Measurement Range
Voltage Measurement Accuracy
Frequency Measurements Of
Frequency Measurement Range
Frequency Measurement Accuracy
Undervoltage Dropout
Undervoltage Pickup
Underfrequency Dropout Range
Underfrequency Pickup Range
Overfrequency Dropout Range
Overfrequency Pickup Range
Operating Temperature Range
Storage Temperature Range
Operating Humidity
Operating Environment
Generator Start Relay
K1, K2 Relays
Applicable Testing
Applicable Testing Continued
Enclosure Compatibility
