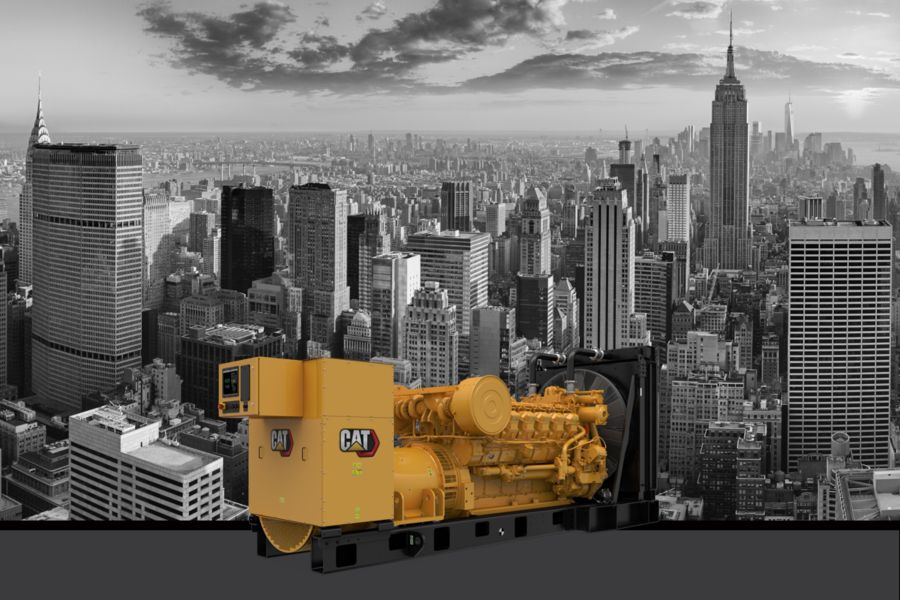

3512 (60 Hz)

3512 (60 Hz)
Cat
Request a Quote Find a Location
Producing reliable power from 890 to 1250 ekW at 60 Hz, our 3512 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets offer a low fuel consumption system.
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Brochures and Spec Sheets

Gallery

3512 (60 Hz) 3512 (60 Hz) 3512 (60 Hz) 3512 (60 Hz)

Specifications

Specification Value Unit
Standby Rating
Prime Power Rating
Emissions/Fuel Strategy
Voltage
Frequency
Speed
Duty Cycle
Maximum Rating
Minimum Rating
Engine Model
Bore 6.69 in
Stroke 7.48 in
Displacement 3161.03 in³
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Minimum 214.8 in
Length - Maximum 219 in
Width - Minimum 77.8 in
Width - Maximum 78.1 in
Height - Minimum 90.7 in
Height - Maximum 93.2 in
Dry Weight - Genset (minimum) 22210 lb
Dry Weight - Genset (maximum) 23149 lb

Standard Equipment

  • Air Inlet System
  • Air Inlet
  • Cooling
  • Exhaust
  • Fuel
  • Generator
  • Power Termination
  • Control Panel
  • Cooling System
  • Exhaust System
  • Fuel System
  • Generators and Attachments
  • Governing System
  • Lube System
  • Mounting System
  • Starting / Charging System
  • Generator and Attachments
  • General

Optional Equipment

  • Exhaust
  • Air Inlet System
  • Generator
  • Circuit breakers
  • Power Termination
  • Control Panels
  • Cooling System
  • Mounting
  • Certificates
  • Starting/Charging
  • Exhaust System
  • Fuel System
  • Generators and Attachments
  • Instrumentation
  • Lube System
  • Mounting System
  • Protection System
  • Special Tests / Reports
  • Starting / Charging System
  • General
