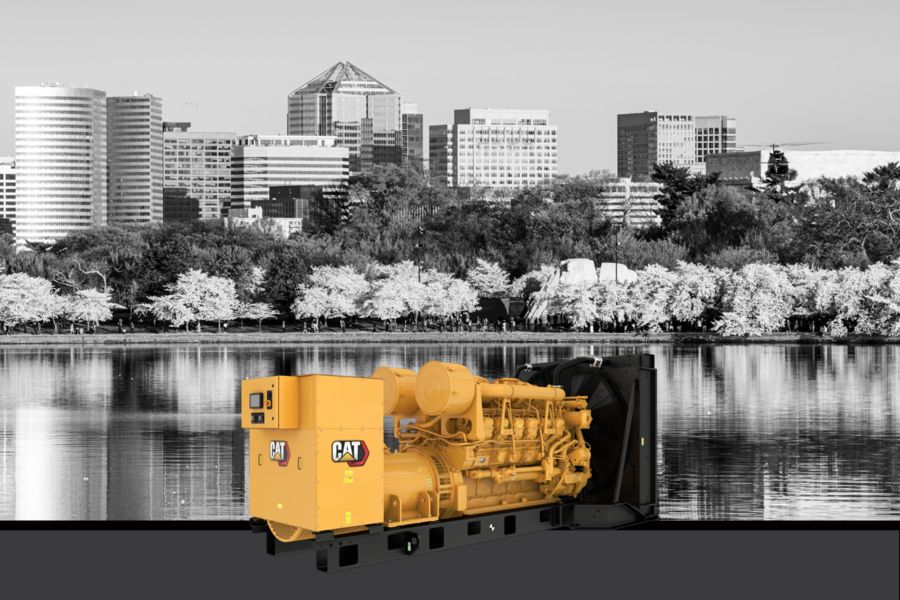

3512B (60 Hz)

Cat

Producing reliable power from 1230 to 1500 ekW at 60 Hz, our 3512B diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets offer both low fuel consumption and low emission systems.

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standby Rating
Prime Power Rating
Emissions/Fuel Strategy
Voltage
Frequency
Speed
Duty Cycle
Maximum Rating
Minimum Rating
Engine Model
Bore	6.69	in
Stroke	7.48	in
Displacement	3573.55	in³
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Minimum	216	in
Length - Maximum	216	in
Width - Minimum	90	in
Width - Maximum	90	in
Height - Minimum	95.3	in
Height - Maximum	95.3	in
Dry Weight - Genset (minimum)	24906	lb
Dry Weight - Genset (maximum)	25567	lb

Standard Equipment

Air Inlet System
Exhaust System
Generator
Power Termination
Control Panel
Control System
Cooling System
Fuel System
Generators and Attachments
Governing System
Literature
Lube System
Mounting System
Starting / Charging System
General

Optional Equipment

Control Panels
Exhaust System
Generator
Air Inlet System
Power Termination
Cooling System
Fuel System
General
Generators and Attachments
Mounting
Starting/Charging
Instrumentation
Lube System
Crankcase Protection
Mounting System
Power Connections
Special Tests / Reports
Starting / Charging System
