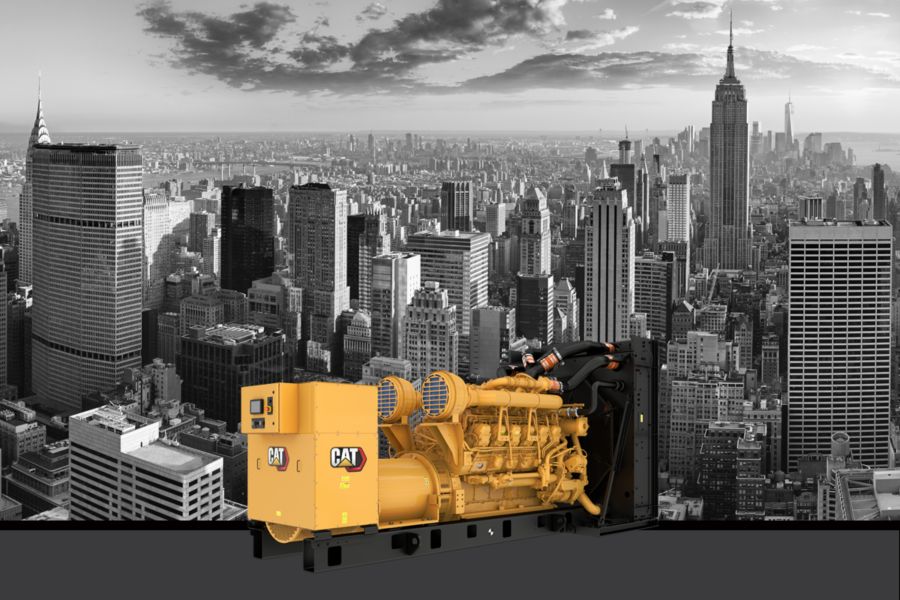

3512C (60 Hz)

Cat

Producing reliable power from 1230 to 1500 ekW at 60 Hz, our 3512C diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets are U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 Nonroad Equivalent Emission Standards)

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standby Rating
Prime Power Rating
Emissions/Fuel Strategy
Voltage
Frequency
Speed
Duty Cycle
Maximum Rating
Minimum Rating
Engine Model
Bore	6.69	in
Stroke	7.48	in
Displacement	3161.03	in³
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Minimum	222.2	in
Length - Maximum	221.2	in
Width - Minimum	89.7	in
Width - Maximum	89.7	in
Height - Minimum	104.4	in
Height - Maximum	104.4	in
Dry Weight - Genset (minimum)	28971	lb
Dry Weight - Genset (maximum)	28971	lb

Standard Equipment

Air Inlet System
Air Inlet
Cooling
Exhaust
Fuel
Generator
Power Termination
Control Panel
Control System
Cooling System
Exhaust System
Fuel System
Generators and Attachments
Governing System
Literature
Lube System
Mounting System
Starting / Charging System
General

Optional Equipment

Control Panels
Exhaust
Air Inlet System
Generator
Cooling System
Power Termination
Exhaust System
Fuel System
General
Mounting
Generators and Attachments
Starting/Charging
Instrumentation
Lube System
Crankcase Protection
Mounting System
Power Connections
Special Tests / Reports
Starting / Charging System
