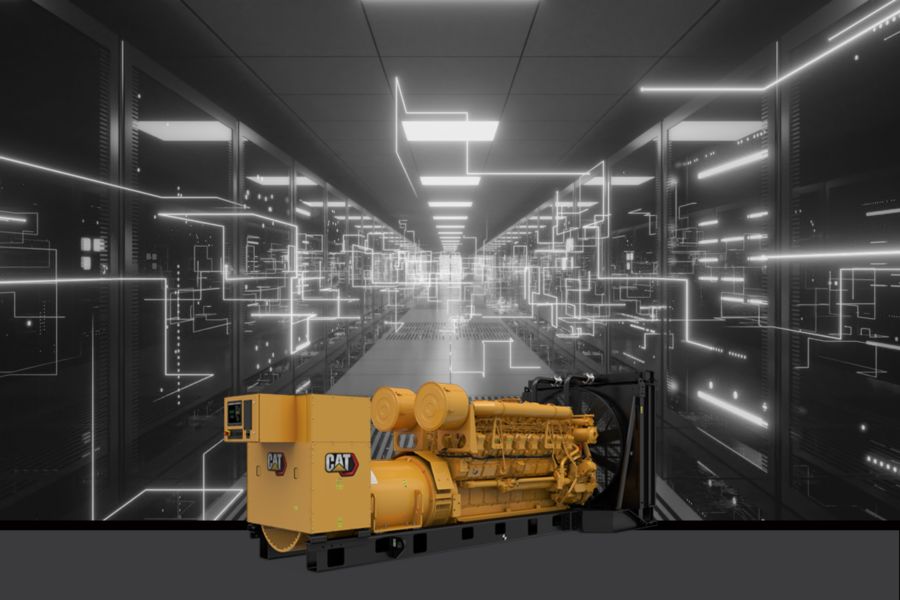

3516 (60 Hz)

Cat

Producing reliable power from 1450 to 1750 ekW at 60 Hz, our 3516 diesel generator sets are made to meet your mission critical, continuous, prime and standby applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets offer both low fuel consumption and low emission systems.

The 3516 generator set has been developed for a wide range of applications, from emergency standby installations such as healthcare and datacenters to continuously powering remote installations. The packages can be optimized for performance that matters to you with either low emissions or low fuel consumption versions available. Backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty, Cat generator sets will provide the reliability and durability you expect.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standby Rating
Prime Power Rating
Emissions/Fuel Strategy
Voltage
Frequency
Speed
Duty Cycle
Maximum Rating
Minimum Rating
Engine Model
Bore	6.69	in
Stroke	7.48	in
Displacement	4210.64	in³
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Minimum	245.2	in
Length - Maximum	245	in
Width - Minimum	90	in
Width - Maximum	90	in
Height - Minimum	94.9	in
Height - Maximum	94.9	in
Dry Weight - Genset (minimum)	28840	lb
Dry Weight - Genset (maximum)	28840	lb

Standard Equipment

Air Inlet System
Control Panels
Cooling System
Exhaust System
Fuel System
General
Generator and Attachments
Governing System
Literature
Lubrication System
Mounting System
Starting System

Optional Equipment

Control System
Air Inlet System
Cooling System
Engine Options
Crankcase System
Alternators
Exhaust System
Fuel System
General
Generators and Attachments
Power Termination
Extended Service Contract (ESC)
Instrumentation
Lubrication System
Mounting System
Power Connections
Special Tests / Reports
Starting and Charging
Extended Service Coverage
