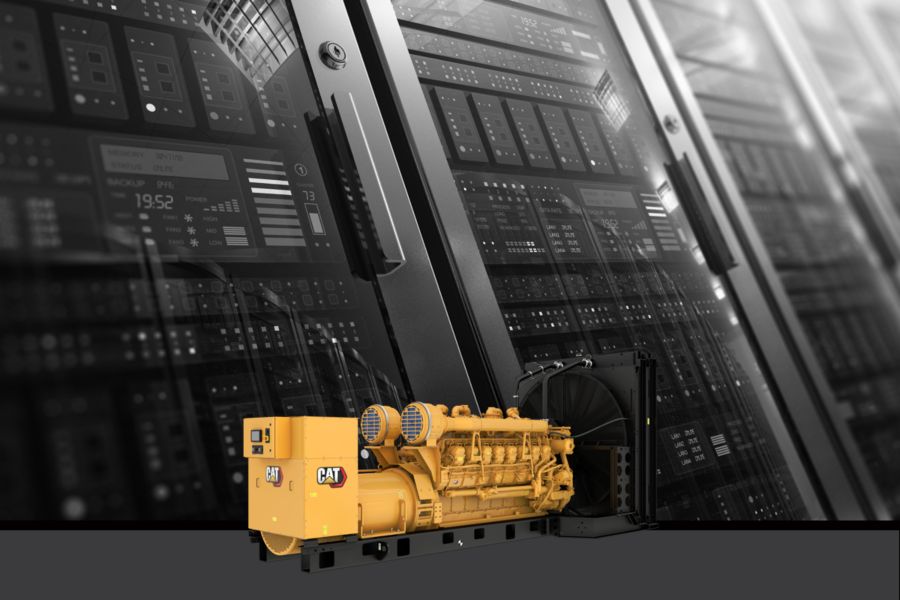

3516B (60 Hz)

Cat

Producing reliable power from 1640 to 2250 ekW at 60 Hz, our 3516B diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets offer both low fuel consumption and low emission systems.

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standby Rating
Prime Power Rating
Emissions/Fuel Strategy
Voltage
Frequency
Speed
Duty Cycle
Maximum Rating
Minimum Rating
Engine Model
Bore	6.69	in
Stroke	7.48	in
Displacement	4210.64	in
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Minimum	241.8	in
Length - Maximum	269.9	in
Width - Minimum	90	in
Width - Maximum	101.9	in
Height - Minimum	98.2	in
Height - Maximum	120.1	in
Dry Weight - Genset (minimum)	31270	lb
Dry Weight - Genset (maximum)	34420	lb

Standard Equipment

Air Cleaner
Starting
Crankcase Ventilation System
Mounting System
Controller
Telematics
Alternator
Power Termination

Optional Equipment

Air Cleaner
Starting
Muffler
Mounting System
Controller
Controller attachments
Telematics
Extended service terms
Extended service coverage
Alternator
Alternator Temperature rise (over 40°C ambient)
Alternator Output Voltage
Alternator attachments
Power termination
Circuit breaker
Trip Unit
Ancilliary Equipment
Certifications
