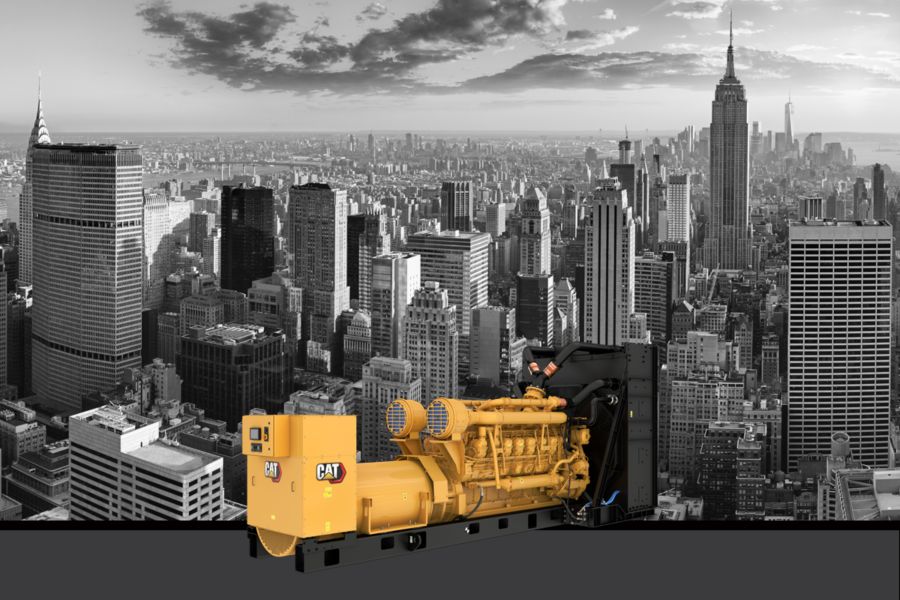

3516C (60 Hz)

Cat

Producing reliable power from 1825 to 2500 ekW at 60 Hz, our 3516C diesel generator sets are made to meet your mission critical, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The 3516C generator sets are U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 Nonroad Equivalent Emission Standards), Low Fuel Consumption certified.

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standby Rating
Prime Power Rating
Emissions/Fuel Strategy
Voltage
Frequency
Speed
Duty Cycle
Maximum Rating
Minimum Rating
Engine Model
Bore	6.69	in
Stroke	7.48	in
Stroke - HD	8.46	in
Displacement	4764.73	in
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Minimum	266.2	in
Length - Maximum	276.3	in
Width - Minimum	92.1	in
Width - Maximum	92.1	in
Height - Minimum	118	in
Height - Maximum	118	in
Dry Weight - Genset (minimum)	35880	lb
Dry Weight - Genset (maximum)	38780	lb

Standard Equipment

Air Inlet System
Cooling
Exhaust
Control Panels
Fuel
Generator
Power Termination
Control Panel
Cooling System
Exhaust System
Fuel System
General
Generator and Attachments
Governing System
Literature
Lubrication System
Mounting System
Starting System

Optional Equipment

Control System
Exhaust
Air Inlet System
Generator
Cooling System
Power Termination
Crankcase System
Control Panels
Mounting
Exhaust System
Starting/Charging
Fuel System
General
Generators and Attachments
Instrumentation
Lubrication System
Mounting System
Power Connections
Special Tests / Reports
Starting and Charging
Extended Service Coverage
