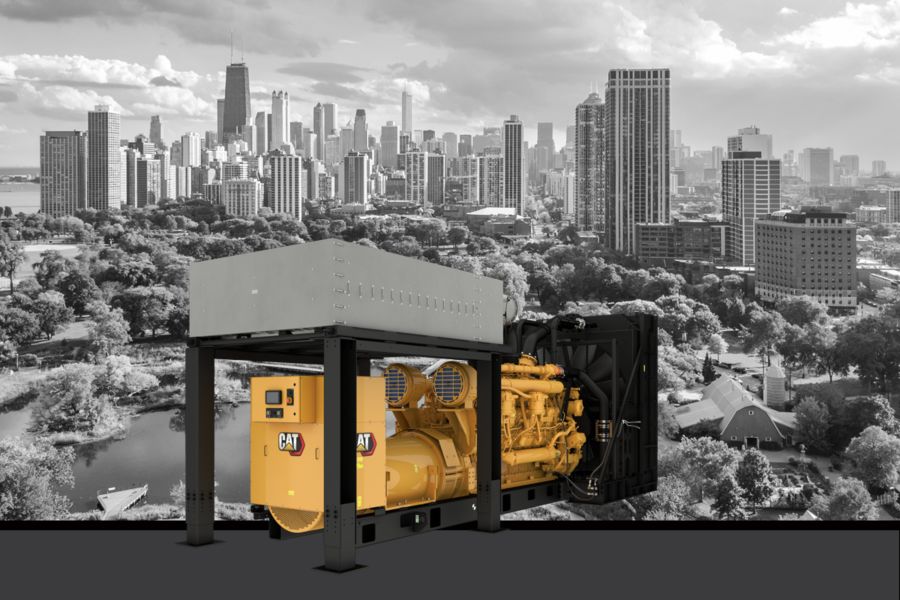

3516C Tier 4 Final (60 Hz)

3516C Tier 4 Final (60 Hz)
Cat
Request a Quote Find a Location
Producing reliable power from 1825 to 2500 ekW at 60 Hz, our 3516C diesel generator sets are made to meet your mission critical, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Depending on the model, 3516C generator sets are EPA Stationary Emergency (Tier 2) or Tier 4 Final certified.
The 3516C HD generator set has been developed for a wide range of applications, from emergency standby installations such as healthcare and datacenters to continuously powering remote installations. The engines are certified to the US EPA Tier 4 Final emissions levels. Backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty, Cat generator sets will provide the reliability and durability you expect.

Brochures and Spec Sheets

Gallery

3516C Tier 4 Final (60 Hz) 3516C Tier 4 Final (60 Hz) 3516C Tier 4 Final (60 Hz) 3516C Tier 4 Final (60 Hz)

Specifications

Specification Value Unit
Standby Rating
Prime Power Rating
Emissions/Fuel Strategy
Voltage
Frequency
Speed
Duty Cycle
Maximum Rating
Minimum Rating
Engine Model
Bore 6.69 in
Stroke 8.46 in
Displacement 78 in
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Minimum 275.4 in
Length - Maximum 285.5 in
Width - Minimum 93.7 in
Width - Maximum 101.2 in
Height - Minimum 116.9 in
Height - Maximum 118.7 in
Dry Weight - Genset (minimum) 37200 lb
Dry Weight - Genset (maximum) 40280 lb

Standard Equipment

  • Air Inlet System
  • Cooling
  • Exhaust
  • Control Panels
  • Fuel
  • Generator
  • Power Termination
  • Control Panel
  • Cooling System
  • Exhaust System
  • Fuel System
  • General
  • Generator and Attachments
  • Governing System
  • Literature
  • Lubrication System
  • Mounting System
  • Starting System

Optional Equipment

  • Control System
  • Air Inlet System
  • Exhaust
  • Generator
  • Cooling System
  • Power Termination
  • Crankcase System
  • Control Panels
  • Exhaust System
  • Mounting
  • Starting/Charging
  • Fuel System
  • General
  • Generators and Attachments
  • Instrumentation
  • Lubrication System
  • Mounting System
  • Power Connections
  • Special Tests / Reports
  • Starting and Charging
  • Extended Service Coverage
