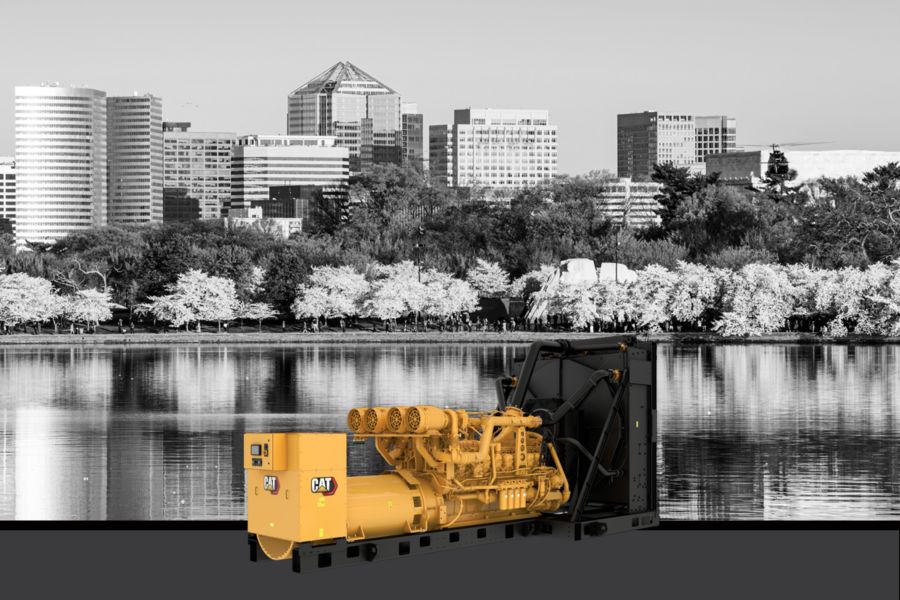

3516E (60 Hz)

Cat

The 3516E diesel generator sets have been developed to meet your standby and prime applications and match your power standards. Producing reliable power from 2725 to 3000 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and to accept 100 % rated load in one step. The generator set is US EPA Stationary Emergency Use Only (Tier 2) certified.

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standby Rating
Prime Power Rating
Emissions/Fuel Strategy
Voltage
Frequency
Speed
Duty Cycle
Maximum Rating
Minimum Rating
Engine Model
Bore	6.69	in
Stroke	8.47	in
Displacement	4765	in³
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Maximum	302.4	in
Width - Maximum	113.2	in
Height - Maximum	143.3	in
Dry Weight - Genset (maximum)	44930	lb

Standard Equipment

Air Inlet System
Cooling
Exhaust
Fuel
Generator
Power Termination
Starting/Charging
Control Panel
Cooling System
Exhaust System
Fuel System
Generators and Attachments
Governing System
Literature
Lube System
Mounting System
Starting / Charging System
General

Optional Equipment

Air Inlet System
Circuit breakers
Power Termination
Control Panel
Cooling System
Exhaust System
Fuel System
Generators and attachments
Instrumentation
Lube System
Mounting System
Power Connections
Special Tests / Reports
Starting / Charging System
General
