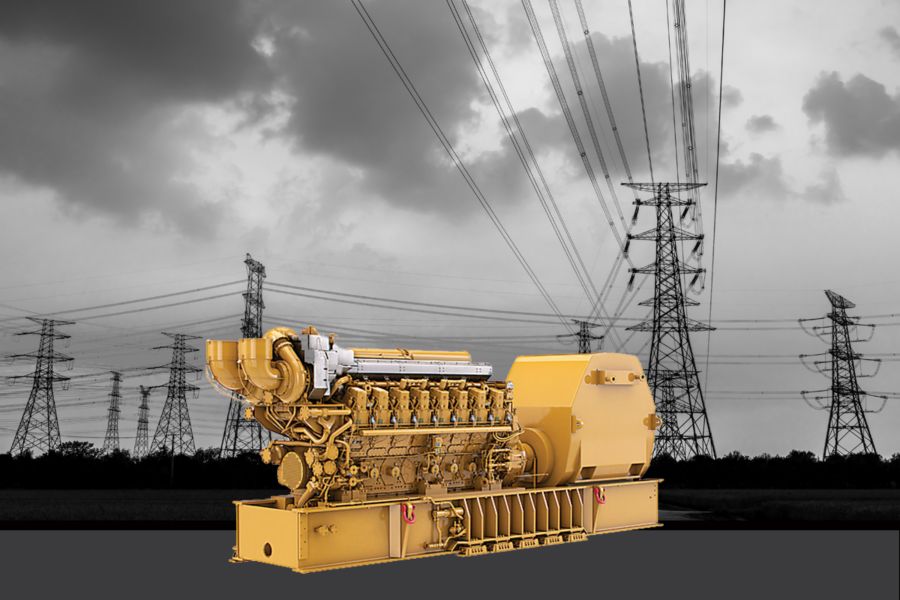

3616 (60 Hz)

Cat

Producing reliable power from 4400 to 5320 ekW at 60 Hz, our 3616 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is certified for low fuel consumption.

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Maximum Rating
Minimum Rating
Emissions/Fuel Strategy
Frequency
Speed
Duty Cycle
Engine Model
Bore	11	in
Stroke	11.8	in
Displacement	18032	in³
Compression Ratio
Aspiration
Fuel System
Governor Type
Length - Maximum	404	in
Width - Maximum	99.62	in
Height - Maximum	156.6	in
Dry Weight - Genset (maximum)	141840	lb

Standard Equipment

Air Inlet System
Cooling System
Exhaust System
Fuel System
Generator System
Governor System
Lube System
Mounting System
Starting / Charging System
General:

Optional Equipment

Air Inlet System
Cooling System
Exhaust System
Fuel System
Generator System
Governor System
Lube System
Mounting System
Starting / Charging System
General:
